Name: ABB SDCS-REB-1 DCF1154914R0001 Interface Board Trusted supplier
Brand: ABB PLC
SKU: 6750
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 120 left

80%

Add to cart

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB SDCS-REB-1 DCF1154914R0001 Interface Board Trusted supplier

Brand：ABB

Item No.：SDCS-REB-1 DCF1154914R0001

Product Type：Interface board

Product Origin：Sweden (SE)

Dimensions：254 x 25 x 248 mm

Weight：0.4 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel source, support test instructions, worry-free after-sales

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of SDCS-REB-1?
It routes trigger pulses from the SDCS-PIN-51 board to SDCS-PIN-41 pulse transformer boards to control thyristors in both forward and reverse bridges.

How is the SDCS-REB-1 installed?

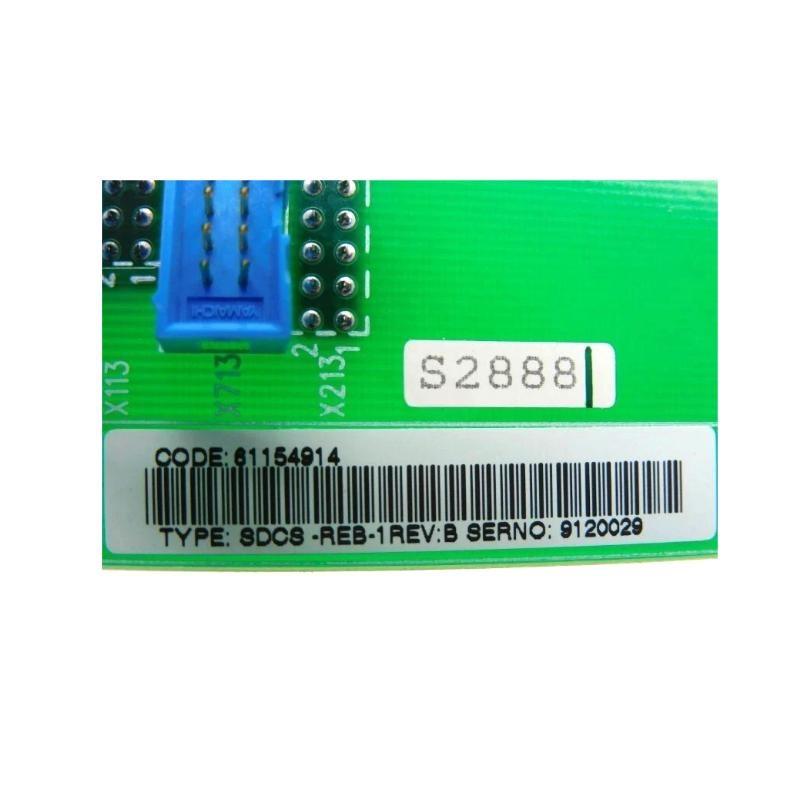

It is plugged into the X513, X113, and X213 connectors of the SDCS-PIN-51 board.

How many thyristors can SDCS-REB-1 support?
It supports up to 12 thyristors – 6 for the forward bridge and 6 for the reverse bridge.

Can SDCS-REB-1 control multiple parallel bridges?
No, SDCS-REB-1 is only suitable for single bridge applications. For parallel bridges, REB-2 and REB-3 are required.

Does SDCS-REB-1 need a separate power supply?
No, it is powered by the SDCS-PIN-51 board.

How is the board fixed mechanically?
It is inserted into a card holder and connected via plug-in interfaces, without the need for screws.

What is the difference between SDCS-REB-1 and SDCS-REB-2?
REB-1 handles signal routing, while REB-2 performs power pulse amplification for parallel thyristor configurations.

Is SDCS-REB-1 hot-swappable?
No, it is not recommended to insert or remove the board while powered. Always perform changes with the system powered off.
