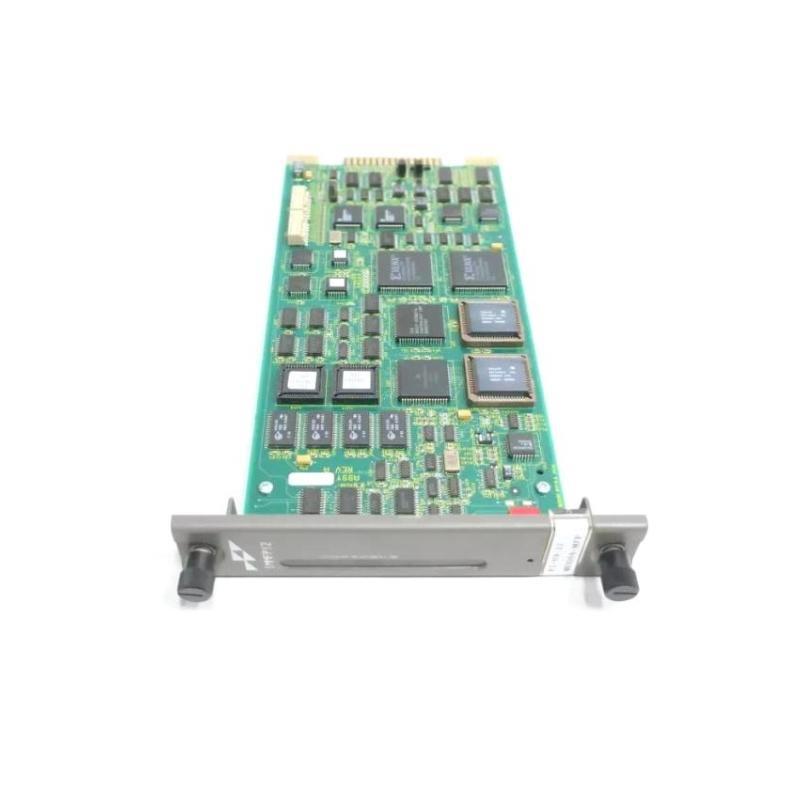

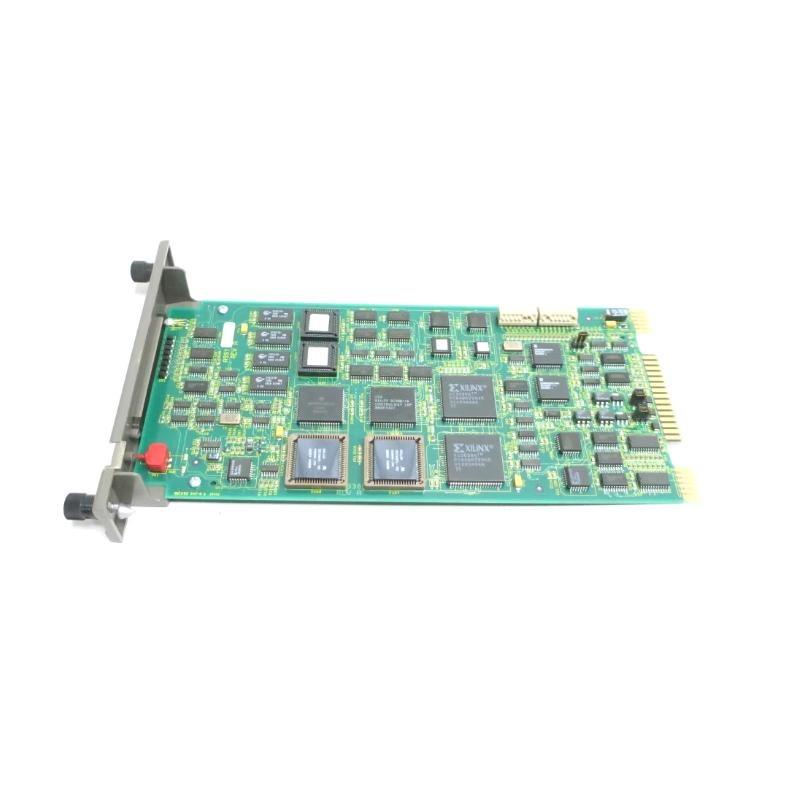

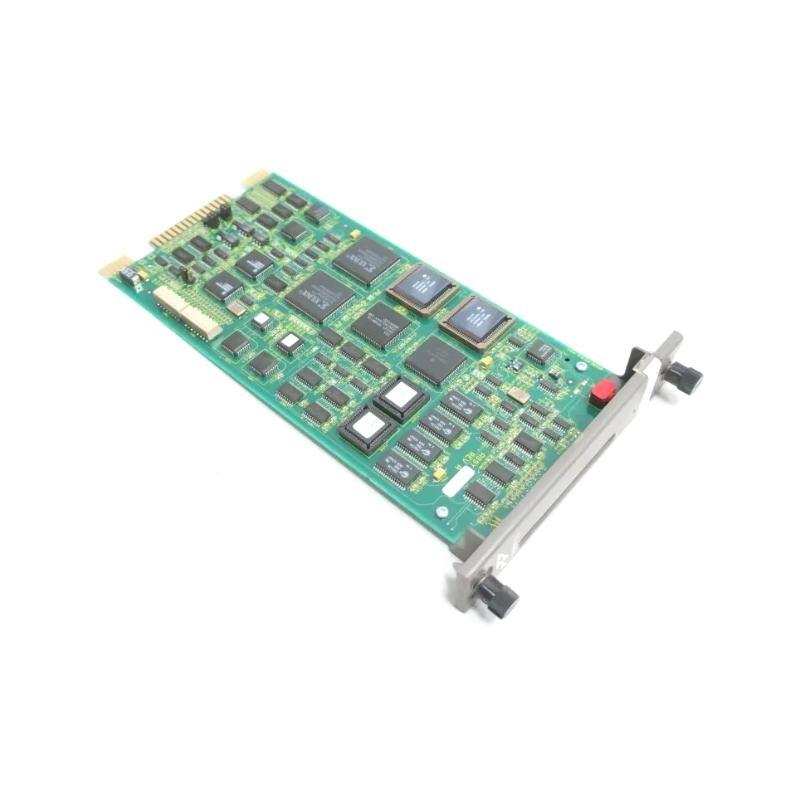

Name: ABB Bailey IMMFP12 Infi 90 Multi-Function Processor Module 12-Month Warranty
Brand: ABB PLC
SKU: 6775
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB Bailey IMMFP12 Infi 90 Multi-Function Processor Module 12-Month Warranty

Brand：ABB Bailey

Item No.：IMMFP12

Product Type：Multi-Function Processor Module

Product Origin：Sweden (SE)

Dimensions：35.56 x 177.8 x 298.45 mm

Weight：0.78 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the IMMFP12 module?
It is a multifunction processor used for complex control strategies, data acquisition, and peer-to-peer communications in the INFI 90 OPEN system.

How many modules can IMMFP12 communicate with?
It supports communication with up to 64 I/O modules in any combination of analog and digital types.

What happens if the primary IMMFP12 fails in a redundant system?
The backup IMMFP12 takes control immediately through a 1 Mbaud redundancy link, ensuring a seamless transition.

Which programming methods are supported by IMMFP12?
It supports programming via C, BASIC, BATCH, ladder logic, and function codes.

How is redundancy configured between two IMMFP12 modules?
Through a dedicated serial redundancy link. Both modules must use identical firmware versions.

Can the IMMFP12 be hot-swapped?
Yes, but the STOP/RESET button must be pressed before removal to ensure safe handover in redundant setups.

What diagnostic information is available if there’s a fault?
Error codes are displayed through LEDs 1–8. The combination indicates specific issues, such as NVRAM errors or bus faults.

Is the module compatible with both Plant Loop and INFI-NET?
Yes, but the configuration must be initialized specifically for the selected environment.
