Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

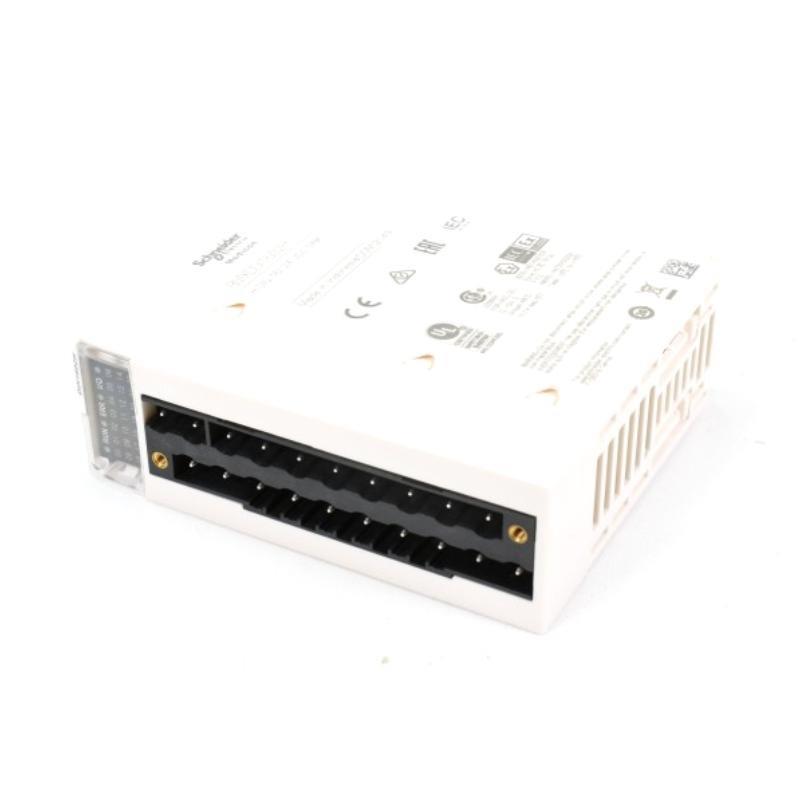

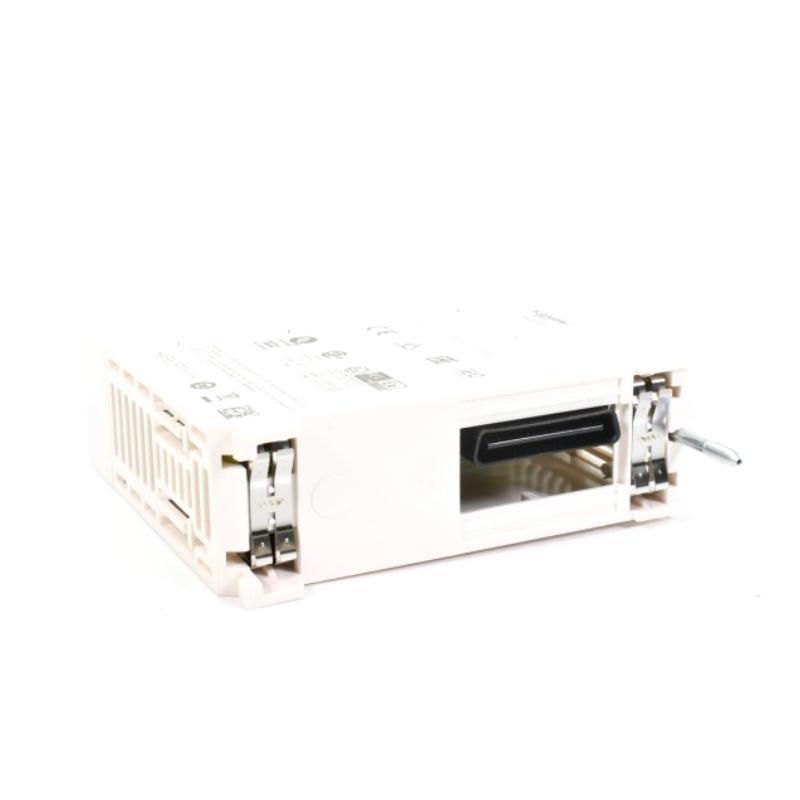

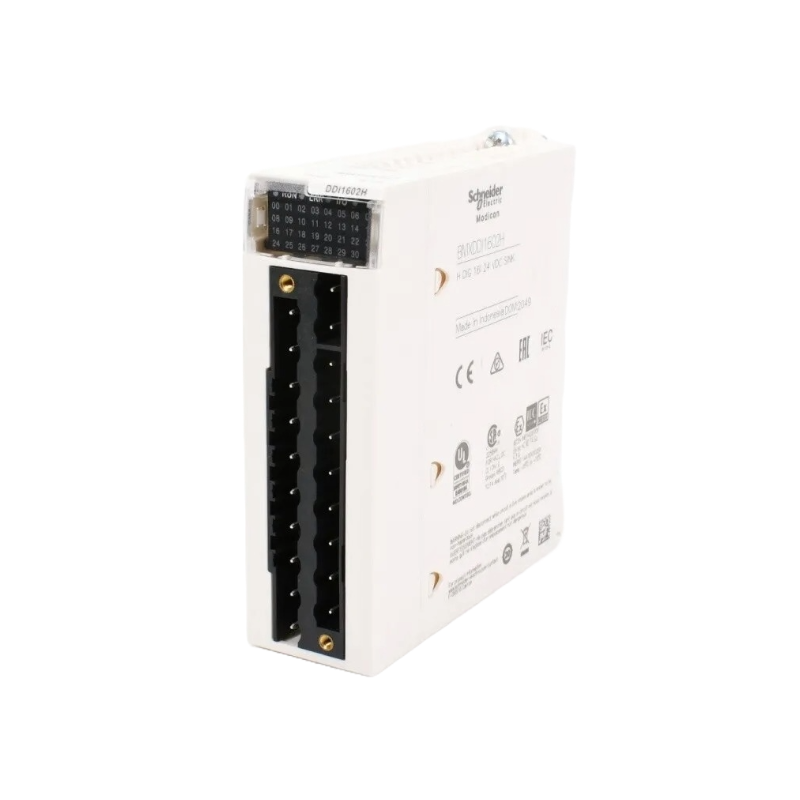

Schneider BMXDDI1602H Discrete Input Module Original

Brand：Schneider

Item No.：BMXDDI1602H

Product Type：Discrete Input Module

Product Origin：France

Dimensions：160 x 100 x 35 mm

Weight：0.115 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for cooperative testing, and fast response to after-sales service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of logic is used for the inputs on the BMXDDI1602H?
The module uses current sink input logic with positive voltage logic.

Is the BMXDDI1602H compatible with proximity sensors?
Yes, it supports 2-wire and 3-wire proximity sensors that comply with IEC 60947-5-2 and IEC 61131-2 standards.

What is the maximum allowable input voltage?
The input voltage is nominally 24 V DC, with sensor supply voltage ranging from 19 to 30 V.

Does the module provide input isolation?
Yes, the module features isolation between channels.

What protections are integrated into the BMXDDI1602H?
It includes reverse polarity protection and a fast-blow 0.5 A fuse per group of channels.

What is the response time of the input channels?
The typical response time is 4 ms, and the maximum is 7 ms.

What certifications does this module meet?
It is certified by CE, UL, CSA, ATEX, IECEx, RCM, EAC, and the Merchant Navy.

What is the MTBF (Mean Time Between Failures) for the module?
The MTBF is approximately 775,000 hours.
