Name: ABB DI561 1TNE968902R2101 Digital Input Module 30-Day Returns！
Brand: ABB PLC
SKU: 6835
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

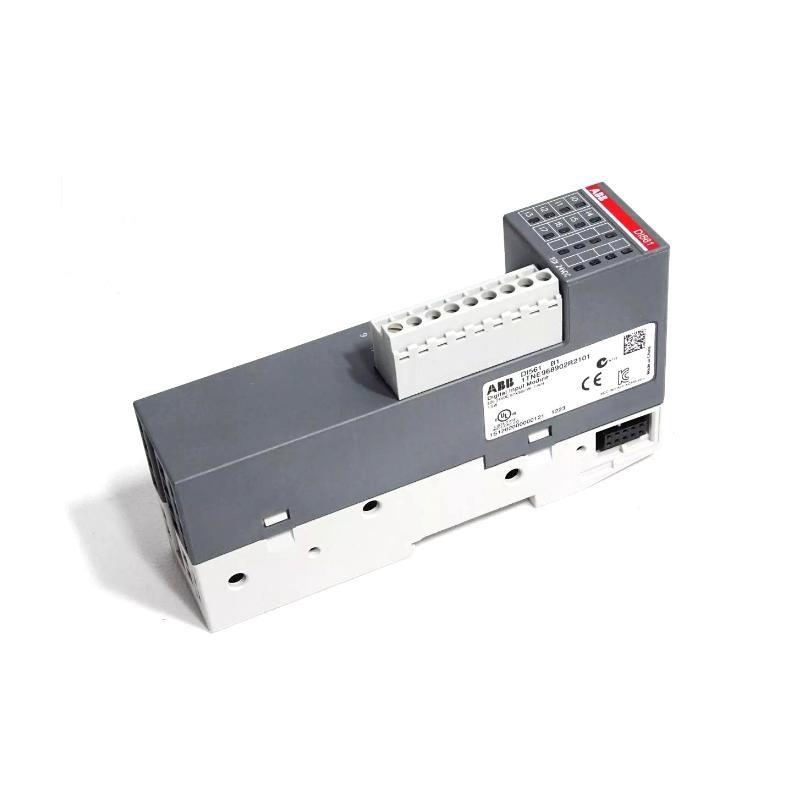

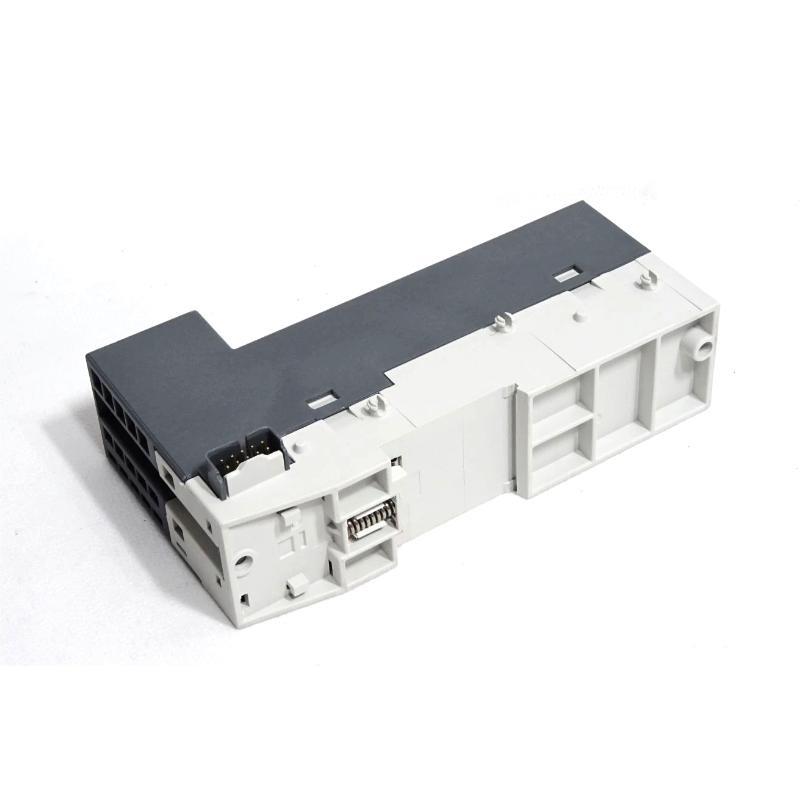

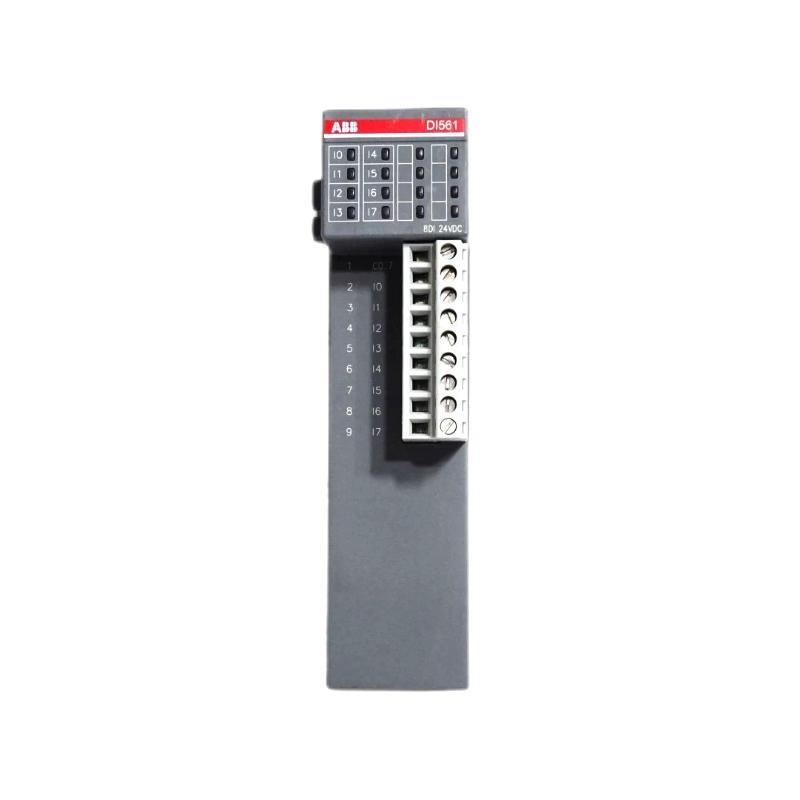

ABB DI561 1TNE968902R2101 Digital Input Module 30-Day Returns！

Brand：ABB

Item No.：DI561 1TNE968902R2101

Product Type：Digital Input Module

Product Origin：Sweden (SE)

Dimensions：135 x 74 x 34 mm

Weight：0.113 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What voltage levels are supported by DI561 module inputs?
The DI561 supports 24 V DC and 24 V AC input signals according to EN 61131-2 Type 1.

How many input channels are available on each DI561 module?
Each module provides 8 digital input channels.

How are input signals indicated on the module?
Each input channel has a yellow LED that lights up when the signal is high.

Does the DI561 module provide galvanic isolation?
Yes, there is galvanic isolation between the input group and the rest of the module.

Can the module be installed both horizontally and vertically?
Yes, it supports both mounting orientations, but cooling and temperature limits must be observed.

Is there an input delay on the DI561?
Yes, the typical input delay is 8 milliseconds.

What is the maximum cable length supported?
Up to 500 meters for shielded cable and 300 meters for unshielded cable.

Does the DI561 have a protection rating?
Yes, it is rated IP20 when all modules and covers are properly installed.
