ABB SDCS-DSL-4 3ADT200005R0001 Serial Communication 30-Day Returns!

0.0
Points

  • 100% Original and Authentic.
  • 100% Brand New, Ready to ship.
  • Support Refund, 7X24h Service.
  • 1-Year Warranty on All Products.
Today's Discount: 90% 00 : 00 : 00
Low stock: 86 left
57%

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

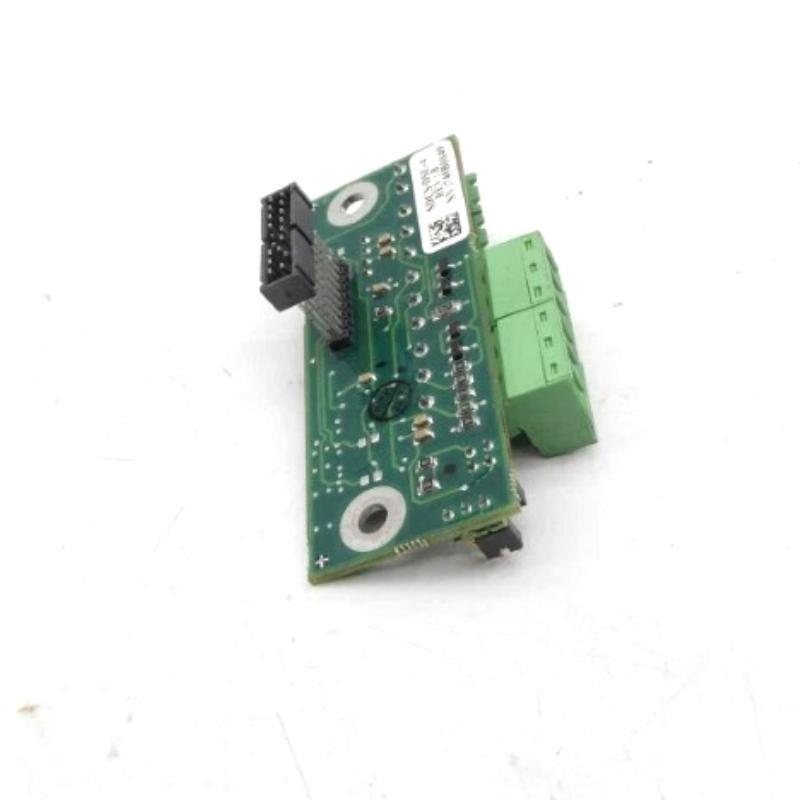

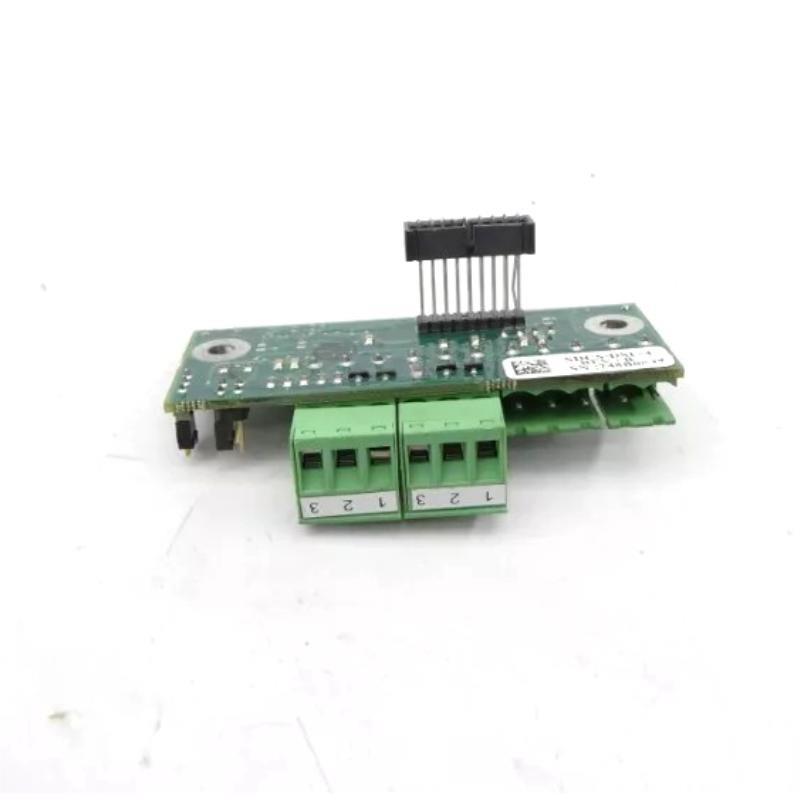

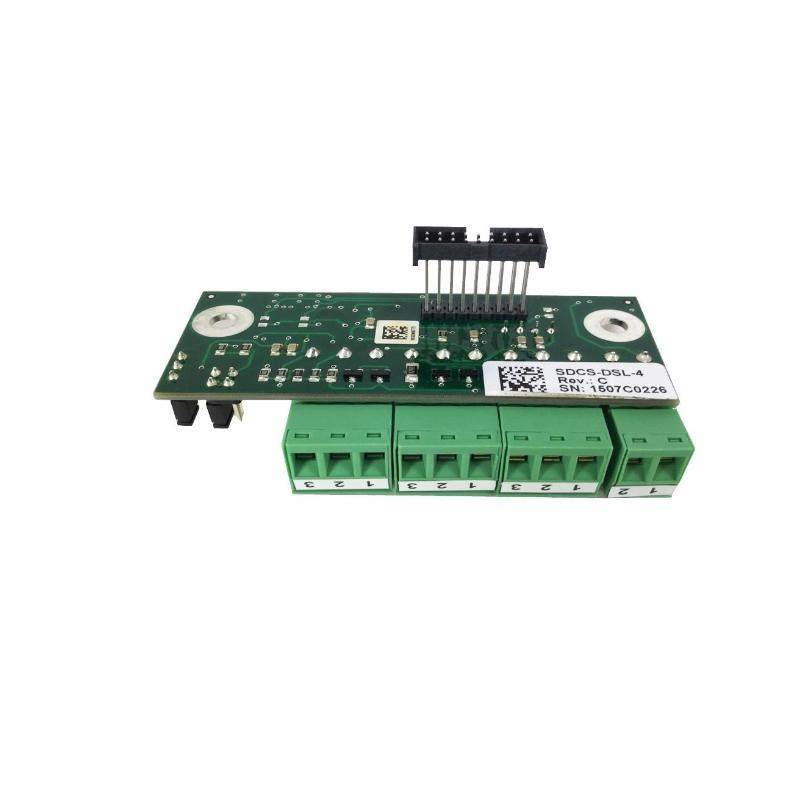

ABB SDCS-DSL-4 3ADT200005R0001 Serial Communication 30-Day Returns!

Brand:ABB

Item No.:SDCS-DSL-4 3ADT200005R0001

Product Type:Serial Communication Board

Product Origin:Sweden (SE)

Dimensions:73 x 40 x 20 mm

Weight:0.3 kg

Payment:T/T, Western Union, Credit Card

Shipping Port:Xiamen, China

Lead Time:1-3 Days

Condition:Brand New And Original

Warranty:1 Year

The source of goods is formal, the test instructions can be coordinated, and the after-sales service continues to follow up

Various models are in stock flexibly, supporting quick response, and welcome cooperation and communication!

Company Information

E-mail: [email protected]

Mobile:+8613043043316

Whatsapp:+8613043043316

Add: Alishan Building, 2 Lvling Rd, Siming District, Xiamen, Fujian, China, 361006

Our services

We are specialized in providing industrial automation parts with a one-year warranty. Our industrial automation parts are sold all over the world

We can provide equipment and spare parts from different countries and manufacturers, solve your worries or quality problems in many places, and have a great price advantage.

Welcome to call for more product details.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the function of the SDCS-DSL-4 board?
It serves as a communication interface via DCSLink for field exciters, master-follower, 12-pulse setups, and inter-drive communication.

Where is the SDCS-DSL-4 board installed?
It is installed into connector X8 on the SDCS-CON-4 board.

What voltage does connector X51 supply?
It supplies 24 VDC with a maximum of 250 mA, suitable for external field exciters.

What do connectors X52 and X53 support?
These are DCSLink connectors and can be used in parallel to connect separate cables.

Is connector X54 used for any function?
No, connector X54 is currently unused.

What is the purpose of jumper S1?
Jumper S1 sets the bus termination, essential at the physical ends of the DCSLink bus.

What is the recommended cable for DCSLink?
A shielded twisted pair cable that also includes lines for 24 VDC power supply.

What is the typical use of the SDCS-DSL-4 in a drive system?
It enables reliable communication and synchronization between multiple DC drives and exciters.
