Product Details

HIMA provide full solution, including hardware, software, engineering, to ensure safe production processes.

HIMA H41q/H51q Series——MS/HS/HRS(AK6/SIL3)

HIMA Himatrix Series——F20/F30/F31/F35/F60(AK6/SIL3)

Product Introduction

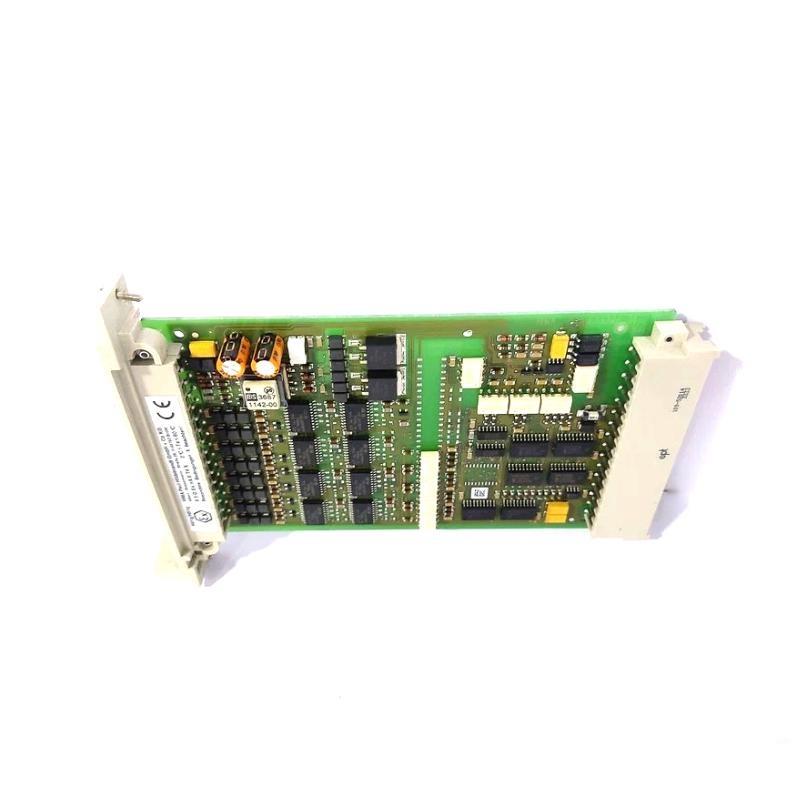

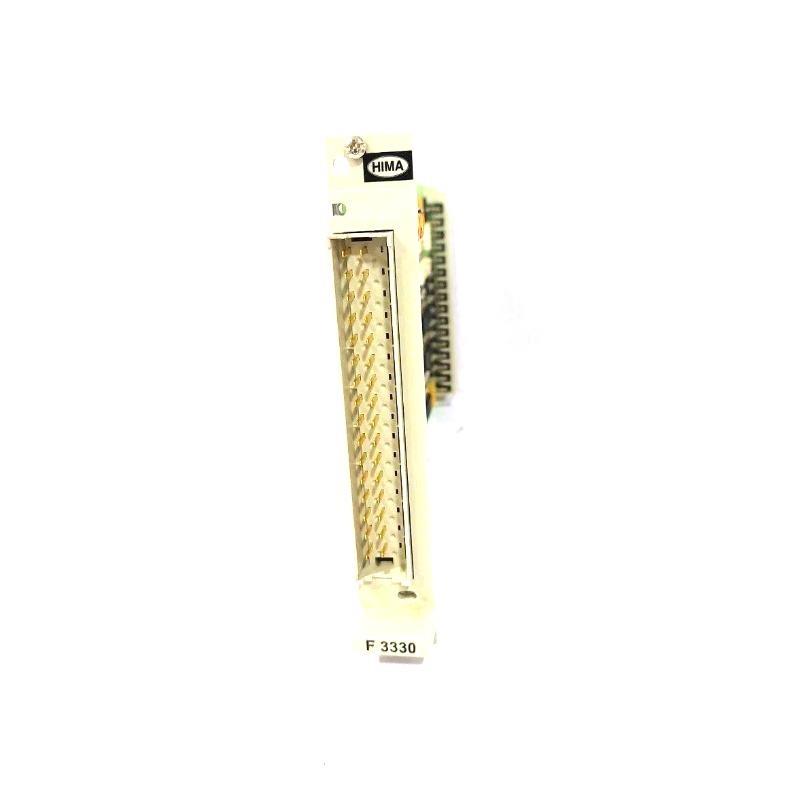

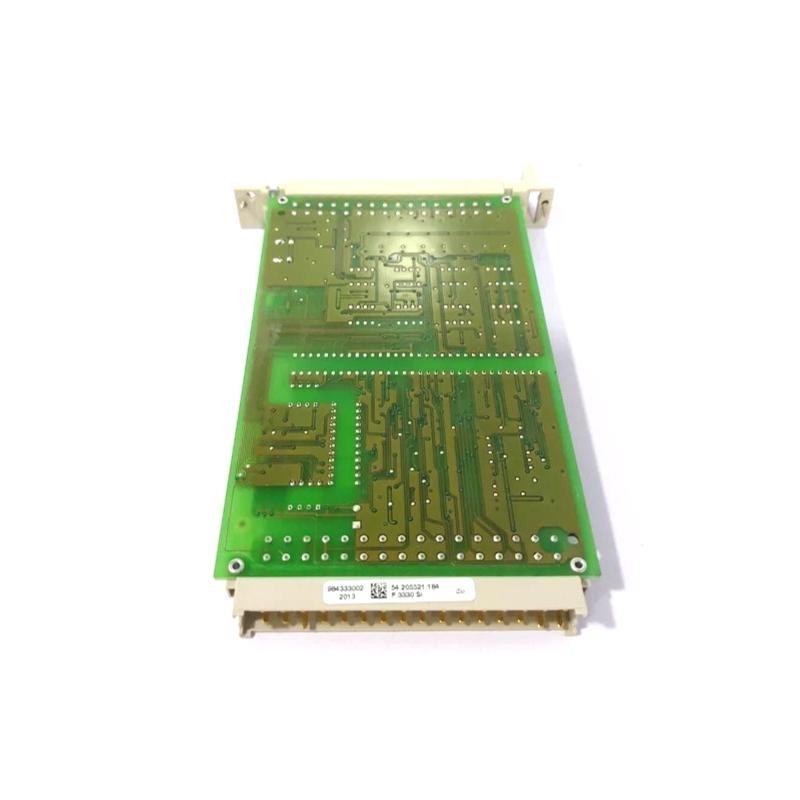

HIMA F3330 8-Channel Output Module New In Stock

Brand：HIMA

Item No.：F3330

Product Type：8-Channel Output Module

Product Origin：Germany

Dimensions：100 x 75 x 50 mm

Weight：0.25 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What types of loads can the F3330 module handle?
The module supports resistive and inductive loads, with a maximum current of 500 mA per channel and a power rating up to 12 W.

Is the module protected against short circuits?
Yes, the F3330 includes short-circuit protection and can handle temporary currents between 0.75 A and 1.5 A.

Does the module ensure safety in case of power loss?
Yes, in the event of a break in the L- supply, the output is safely turned off to prevent uncontrolled operation.

Is an external diode required for inductive loads?
Yes, when using inductive loads, external diodes such as 1N4007 or 1N4448 must be used to suppress voltage spikes.

What is the maximum output leakage current per channel?
The leakage current for each output channel is limited to a maximum of 350 µA.

Can multiple F3330 modules be used in parallel?
Yes, up to 10 output modules can be installed in one I/O rack under nominal load, and they can be paralleled without external diodes.

Does the module include any self-diagnostic features?
Yes, it features automatic runtime diagnostics, including output signal feedback and walking-bit tests.

What are the requirements for rack installation?
A maximum of 10 F3330 output modules can be installed per I/O rack when operating at full nominal load.
