Product Details

Emerson brands include Fisher, Rosemount, DeltaV, Epro，Ovation.

Product Introduction

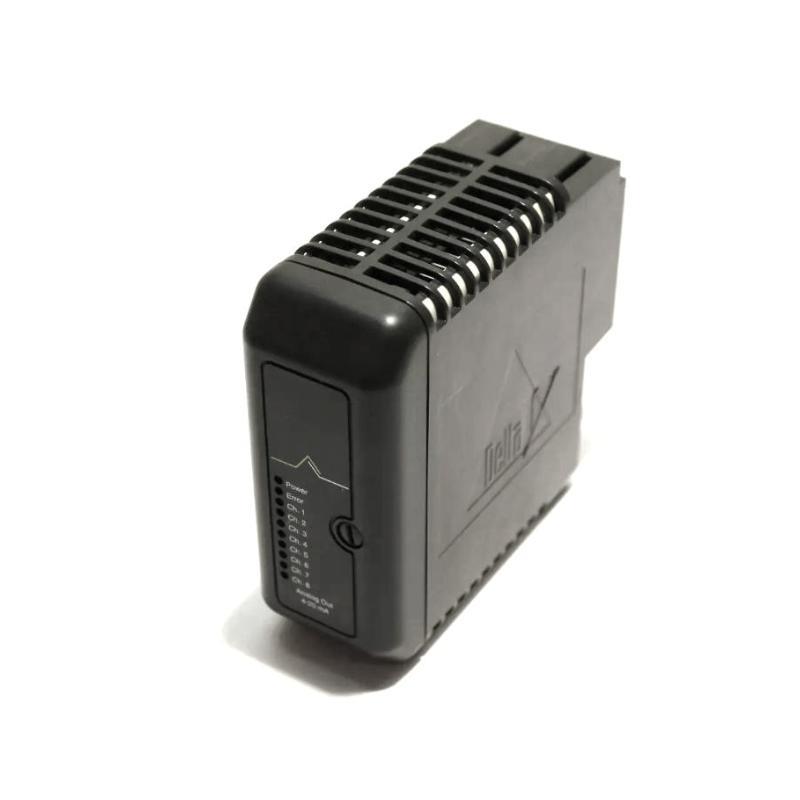

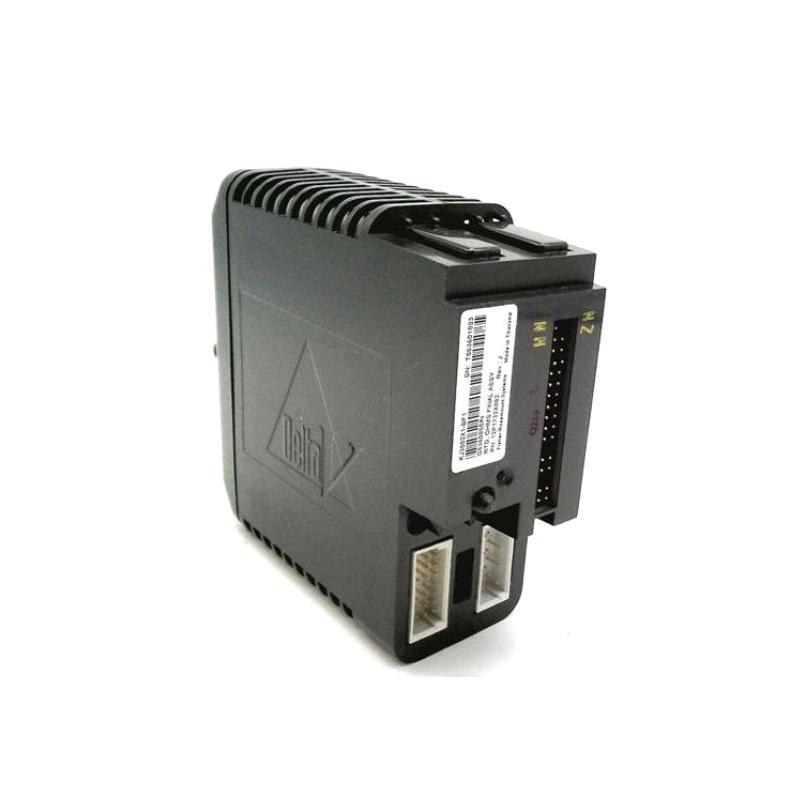

Emerson KJ3002X1-BB1 DeltaV Analog Output Module Original

Brand：Emerson

Item No.：KJ3002X1-BB1

Product Type：DeltaV Analog Output Module

Product Origin：USA

Dimensions：107 x 41 x 105 mm

Weight：1.13 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, fast response to after-sales service

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many output channels does the KJ3002X1-BB1 module support?
It supports 8 analog output channels, each delivering 4-20 mA.

What is the required power supply for the module?
12 VDC at 150 mA for LocalBus and 24 VDC at 300 mA for field power.

What is the ambient temperature range for operation?
The operating temperature range is 0°C to 60°C.

Is hot swapping supported for this module?
Yes, under certain conditions. Field power must be disconnected, and only one module may be swapped at a time.

Does the module require calibration?
No, calibration is not required as the module is factory-calibrated.

Is this module certified for hazardous areas?
Yes, it has ATEX and Class I, Div.2 certifications for use in hazardous environments.

What terminal block keying does the module use?
It uses terminal blocks keyed to position A4.

Can the module be replaced while the system is powered?
Yes, but only when specific power conditions and inductance limits are met as per installation guidelines.
