Product Introduction

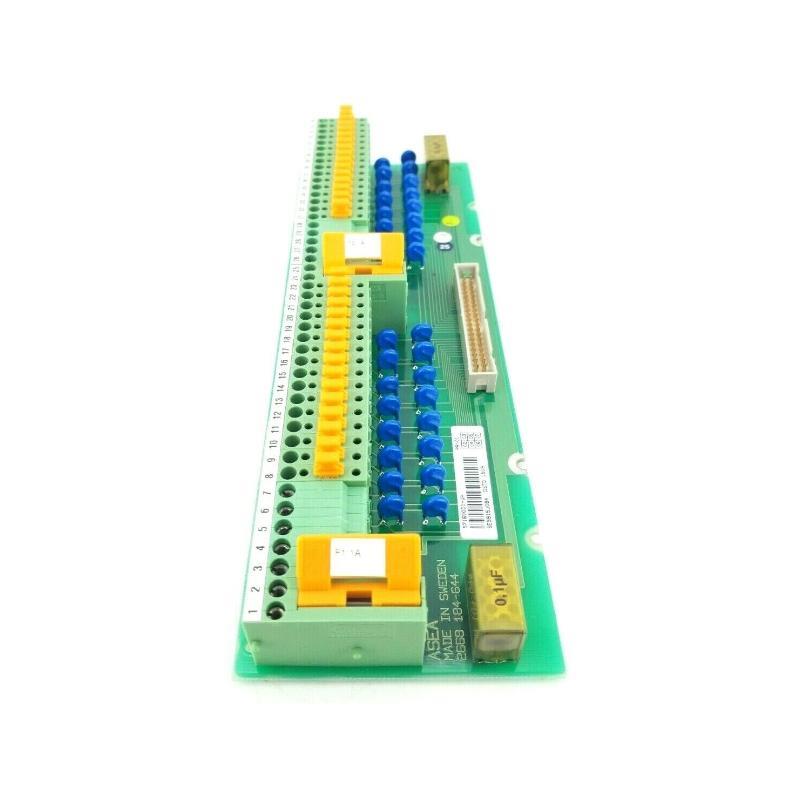

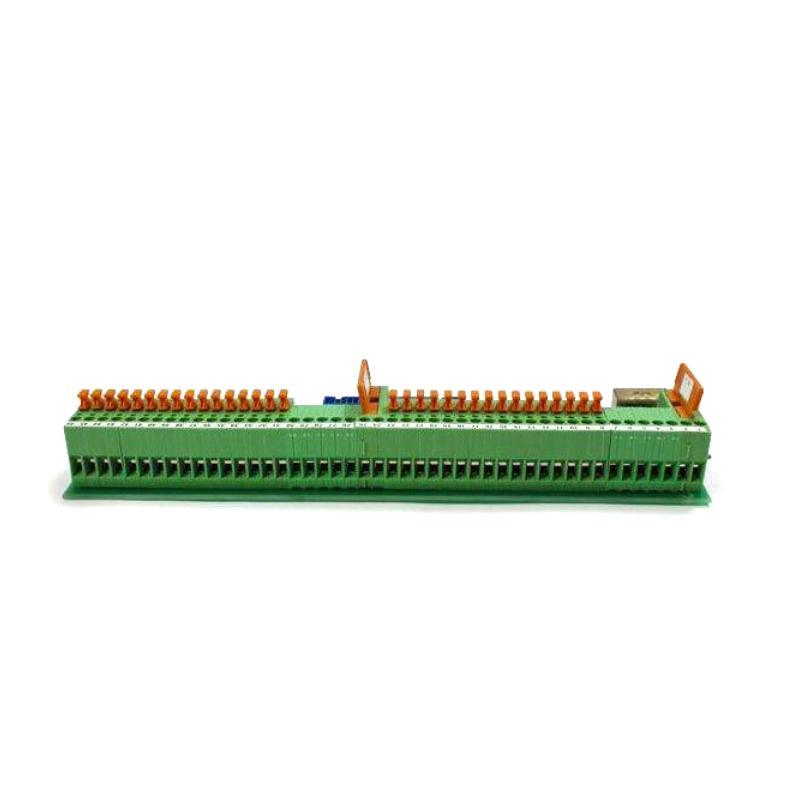

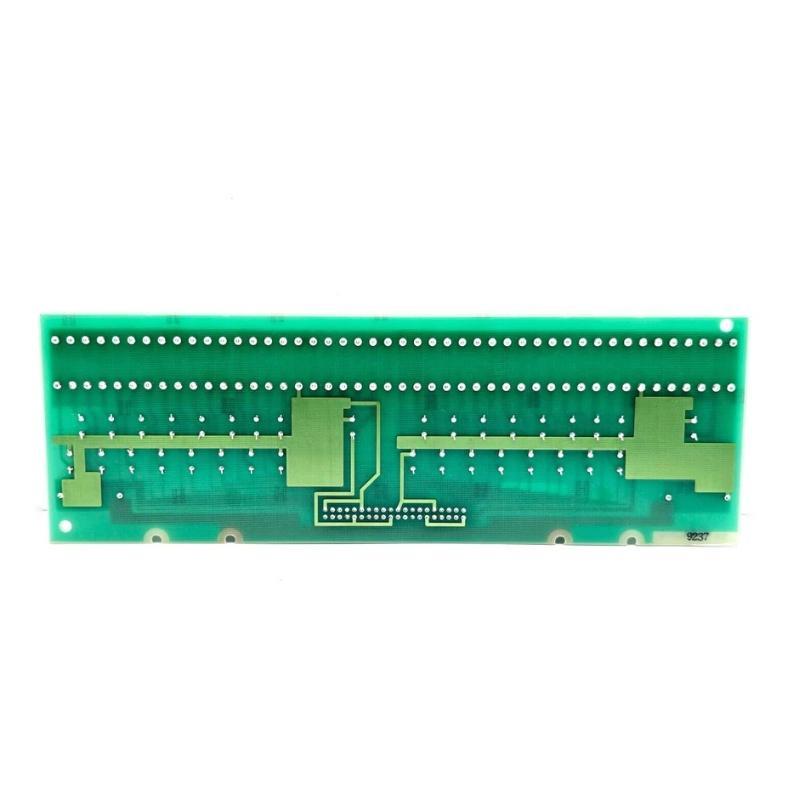

ABB DSTD 150A 57160001-UH Connection Unit for Digital Input Board 12-Month Warranty

Brand：ABB

Item No.：DSTD 150A 57160001-UH

Product Type：Connection Unit

Product Origin：Sweden (SE)

Dimensions：255 ×25 ×90 mm

Weight：0.135 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service continues to follow up

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

requently Asked Questions (FAQ)

What is the function of the DSTD 150A unit?
It serves as a connection unit for digital input modules in ABB’s S100 I/O systems.

How many channels does the DSTD 150A support?
It supports connection for 32 digital input channels when used with compatible modules like DSDI 110A.

Does the DSTD 150A support pulse counting?
Yes, it supports up to 12 pulse counting inputs at a maximum frequency of 10 kHz with 5/12/24 VDC input levels.

What kind of input signal is supported?
It supports 24 VDC digital inputs and is compatible with scanning or interrupt-driven signal types.

What type of connector cable is used with the DSTD 150A?
It is typically used with the DSTK150 or DSTK160 connection cables, depending on the I/O configuration.

Is galvanic isolation provided in DSTD 150A?
No, galvanic isolation is not specified for this unit; it depends on the paired input module.

In which systems is DSTD 150A used?
It is used in ABB’s Advant Controller systems, particularly in the S100 I/O subsystem.

What are the installation dimensions and weight of DSTD 150A?
The unit measures 255 × 25 × 90 mm and weighs 0.135 kg.
