Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

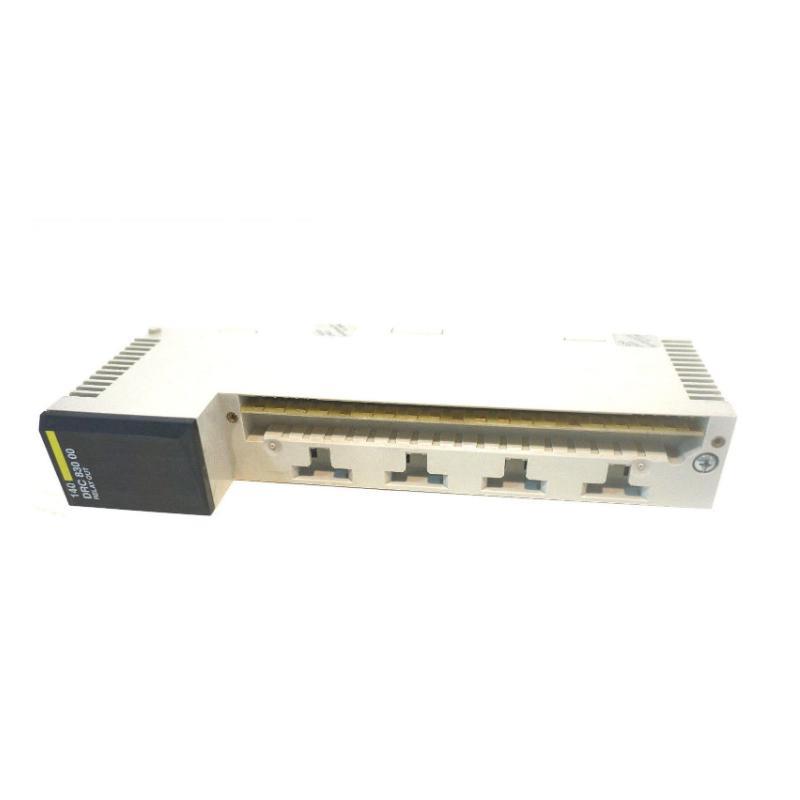

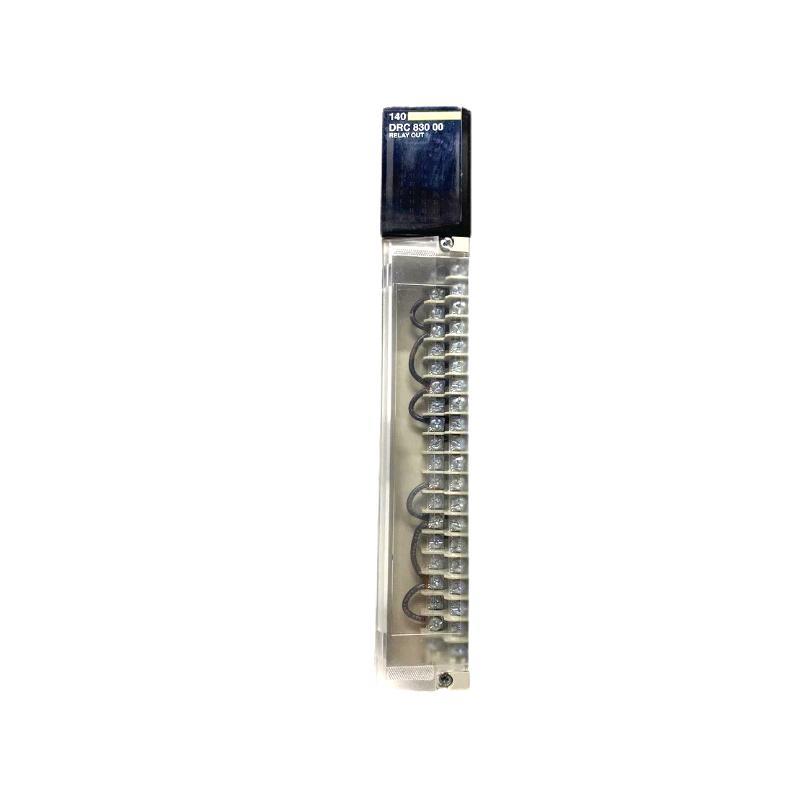

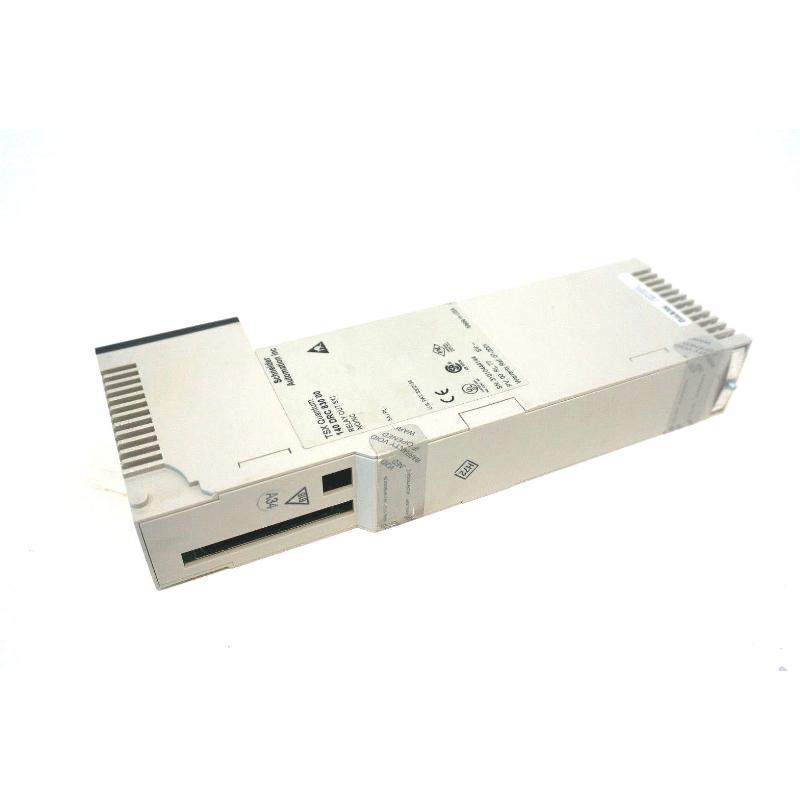

Schneider 140DRC83000 Relay Discrete Output Module Original

Brand：Schneider

Item No.：140DRC83000

Product Type：Relay Discrete Output Module

Product Origin：France

Dimensions：103.9 × 40.3 × 250 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of contacts does the 140DRC83000 module use?
It uses Form C contacts with 1 NO/NC configuration.

What is the maximum load current the module can handle?
It supports up to 5 A for resistive loads at 250 V AC or DC.

How is overvoltage protection implemented?
The module uses an internal 275 V varistor for overvoltage protection.

What is the switching capacity of the module?
It has a maximum resistive switching capacity of 1250 VA.

What kind of isolation does this module provide?
It provides 1780 Vrms AC or 2500 V DC isolation between channels and between channels and the bus.

How many discrete outputs does the module support?
The module supports 8 discrete relay outputs.

What are the dimensions and weight of the module?
The module measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg.

What environmental standards does this module comply with?
It meets UL 508, CSA C22.2 No. 142, FM Class 1 Div 2, and several marine certifications like ABS, DNV, and RINA.
