Name: ABB Bailey IMFEC11 Infi 90 Analog Input/FSK Slave Module 12-Month Warranty
Brand: ABB PLC
SKU: 6934
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

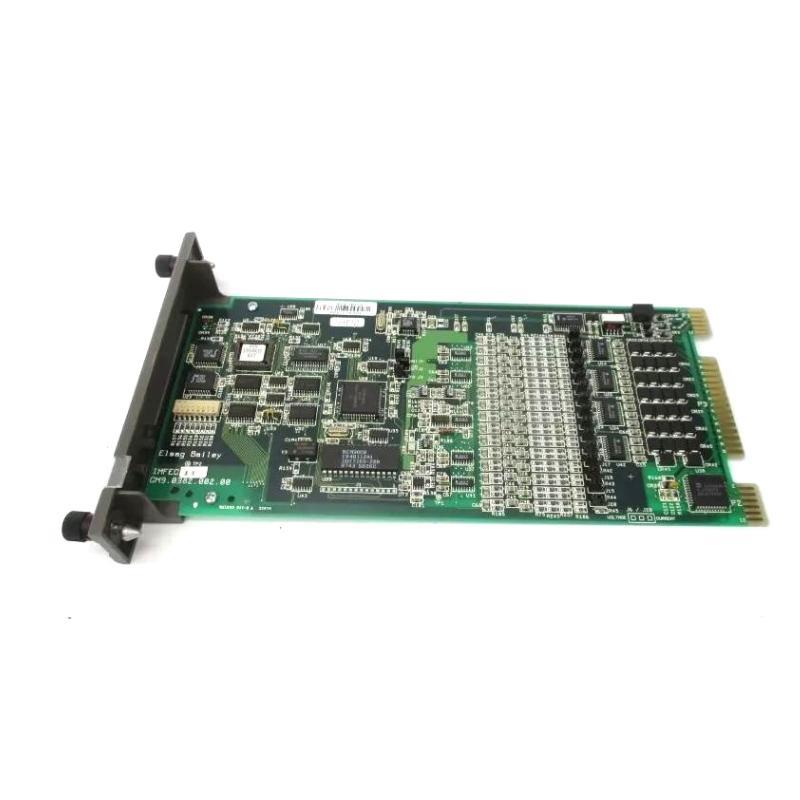

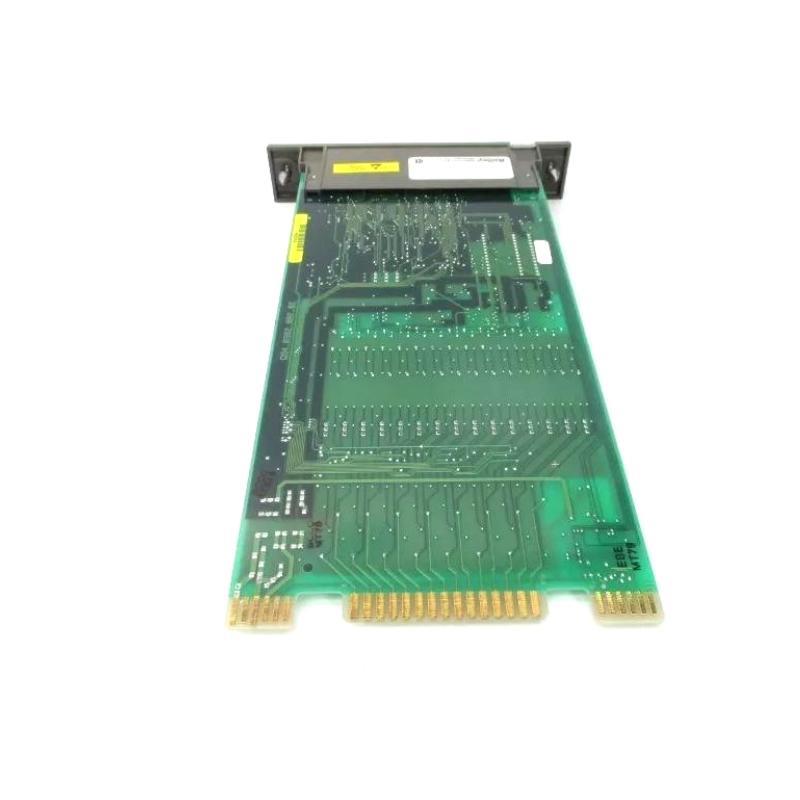

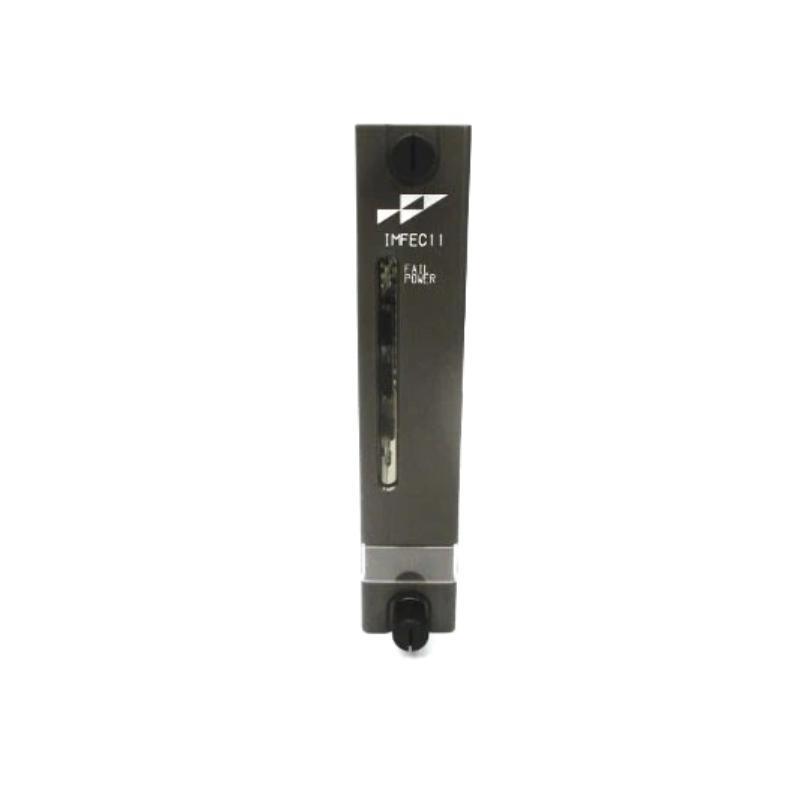

ABB Bailey IMFEC11 Infi 90 Analog Input/FSK Slave Module 12-Month Warranty

Brand：ABB Bailey

Item No.：IMFEC11

Product Type：Analog Input/FSK Slave Module

Product Origin：Sweden (SE)

Dimensions：132 x 25 x 125 mm

Weight：0.567 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many input channels does the IMFEC11 module support?
The IMFEC11 supports 15 independently configurable analog or FSK digital input channels.

What are the supported signal types for analog inputs?
The module accepts 4-20 mA, 1-5 VDC, 0-1 VDC, 0-5 VDC, 0-10 VDC, and -10 to +10 VDC input signals.

Can the IMFEC11 module interface with smart transmitters?
Yes, it supports communication with Bailey-Fischer & Porter smart transmitters via FSK protocol.

What is the resolution of the analog-to-digital converter?
The A/D converter provides 14-bit resolution including polarity.

What is the update rate for FSK digital inputs?
The update rate is 3 to 10 times per second in FSK field bus mode.

What is the power consumption of the module?
Typical power dissipation is 1.1 W.

What are the dimensions and weight of the IMFEC11 module?
The module measures 132 x 25 x 125 mm and weighs 0.567 kg.

Is the IMFEC11 certified for hazardous locations?
It has CSA and pending FM approvals for use in Class I Division 2 and Class II Division 2 locations.
