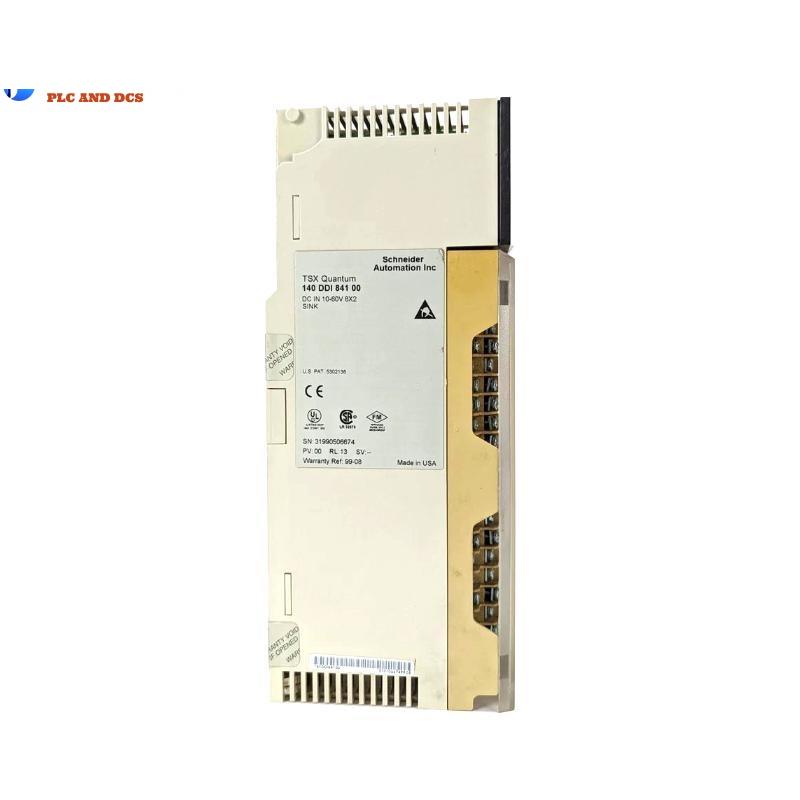

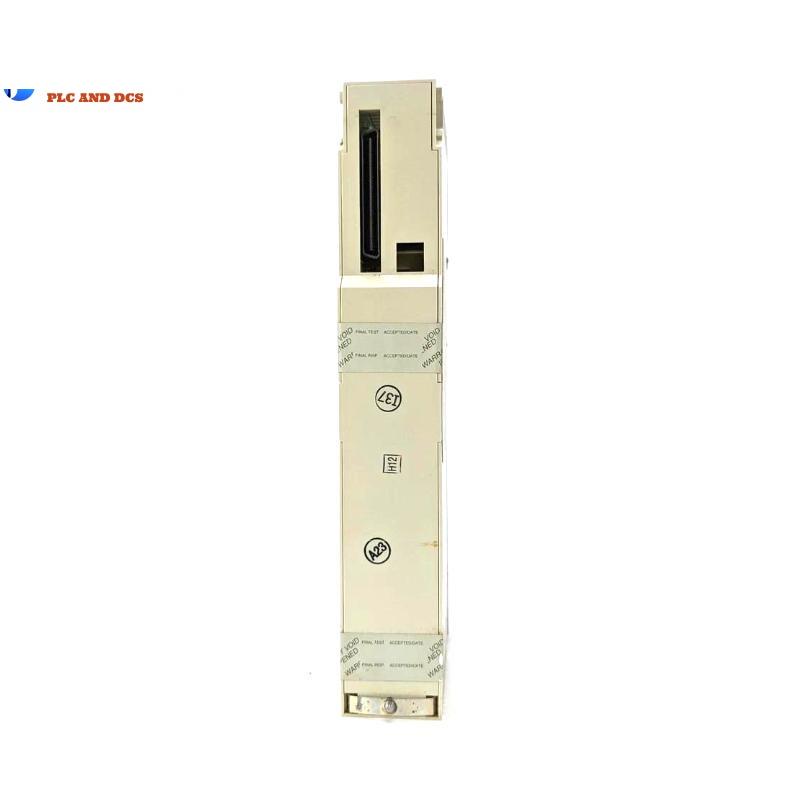

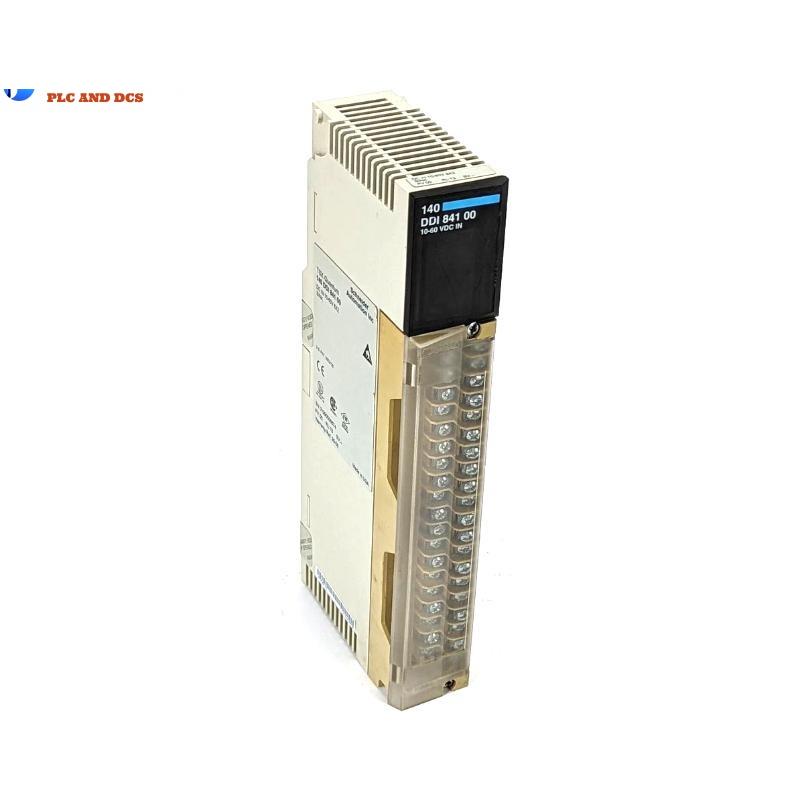

Schneider 140DDI84100 Discrete Input Module Original

Schneider 140DDI84100 Discrete Input Module Original

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 135 left

90%

Add to cart

Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

Schneider 140DDI84100 Discrete Input Module Original

Brand：Schneider

Item No.：140DDI84100

Product Type：Discrete Input Module

Product Origin：France

Dimensions：103.9 × 40.3 × 250 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The inventory covers multiple brands and series, supports fast delivery, welcome to call for negotiation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the number of input channels for the 140DDI84100 module?
The module has 16 discrete input channels grouped into 2 groups of 8.

What is the acceptable voltage range for the inputs?
The input voltage range is 10 to 60 V DC, with absolute maximum voltage up to 75 V.

What type of logic is supported by this module?
It supports positive logic (sink input).

What are the guaranteed voltage levels for logic high and low states?
Logic ‘1’ is guaranteed between 9–60 V depending on the voltage class; logic ‘0’ is guaranteed between 0–10 V.

What is the response time of the module?
The response time is 4 ms for both state transitions (0 → 1 and 1 → 0).

What is the isolation level between the input group and the bus?
The module offers 2500 Vrms isolation between input groups and the bus for 1 minute.

How is the module’s status visually indicated?
It includes 16 green LEDs for input status, one green LED for bus communication, and one red LED for fault indication.

What is the physical size and weight of the 140DDI84100 module?
The module measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg.
