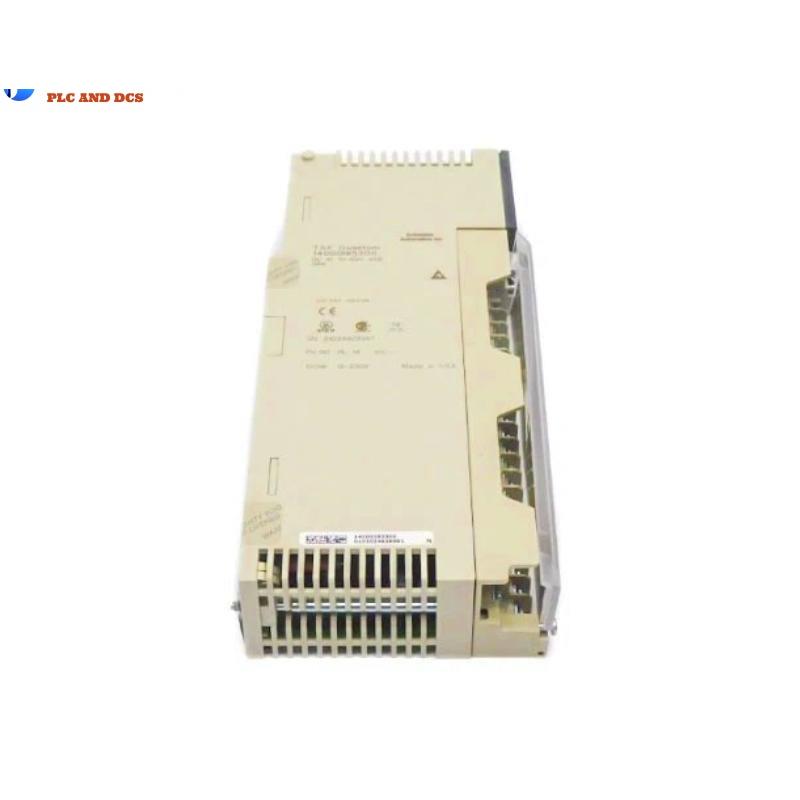

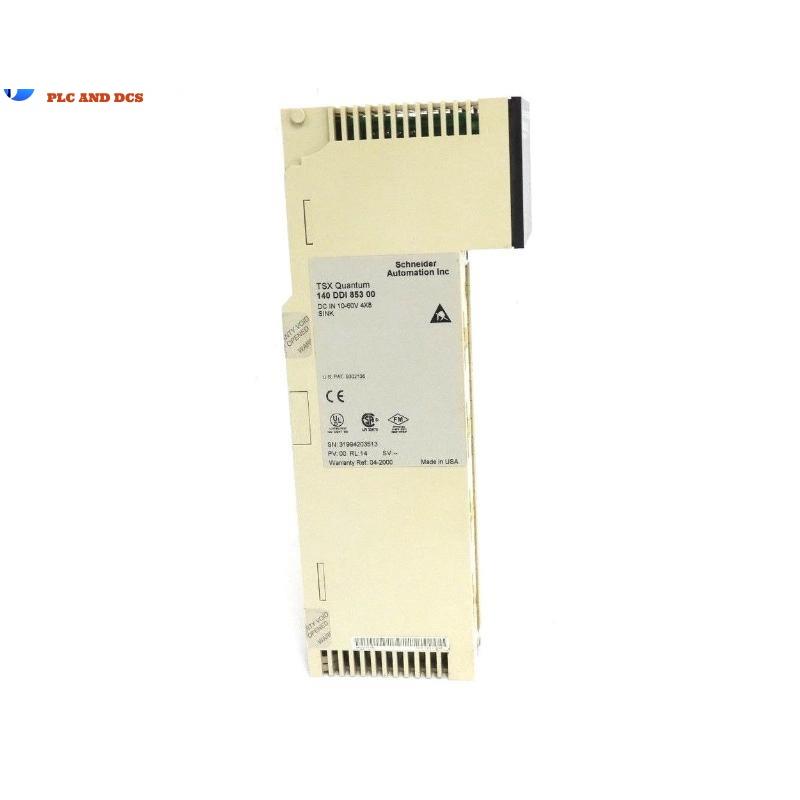

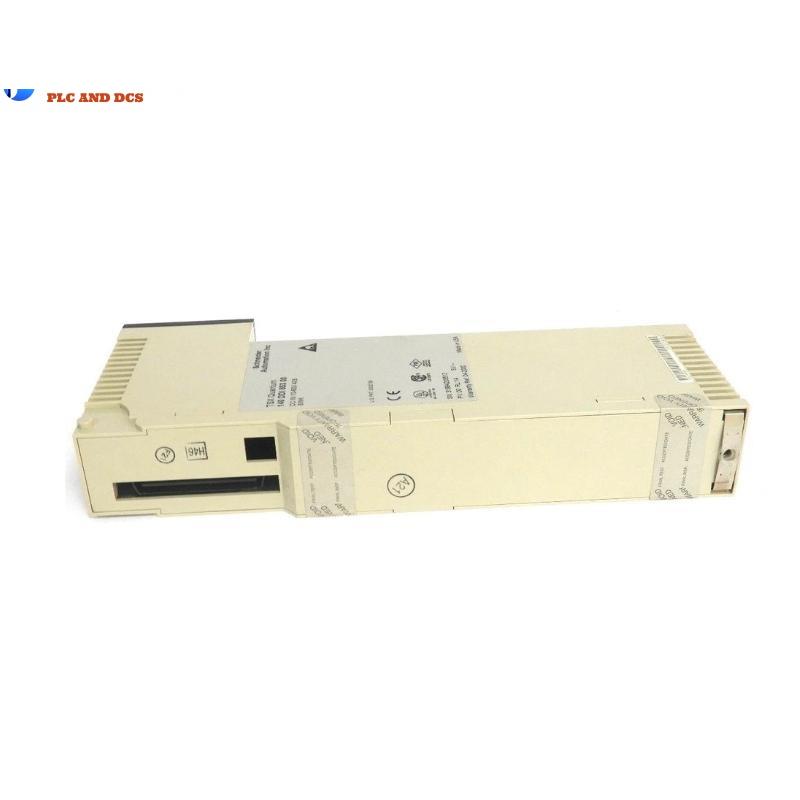

Schneider 140DDI85300 Discrete Input Module Original

Schneider 140DDI85300 Discrete Input Module Original

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 35 left

23%

Add to cart

Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

Schneider 140DDI85300 Discrete Input Module Original

Brand：Schneider

Item No.：140DDI85300

Product Type：Discrete Input Module

Product Origin：France

Dimensions：103.9 × 40.3 × 250 mm

Weight：0.295 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What input voltages are supported by the 140DDI85300 module?
The module supports 12 V, 24 V, 48 V, and 60 V DC inputs with respective current ranges of 5–10 mA, 6–30 mA, 2–15 mA, and 1–5 mA.

What is the maximum input voltage the module can withstand?
The absolute maximum input voltage is 75 V DC.

What is the response time of the 140DDI85300?
The response time is 4 milliseconds for both 0 to 1 and 1 to 0 transitions.

What is the maximum switching frequency supported?
The module supports a switching frequency of up to 100 Hz.

How are input and communication statuses indicated on the module?
It has 1 green LED for bus communication and 32 green LEDs for individual input status indication.

Is the module suitable for hazardous location applications?
Yes, it is certified for use in Class 1 Division 2 hazardous environments.

What is the operating temperature range for the module?
It operates between 0°C and 60°C, and can be stored between -40°C and 85°C.

What are the physical dimensions and weight of the 140DDI85300 module?
The module measures 103.9 × 40.3 × 250 mm and weighs 0.295 kg.
