Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

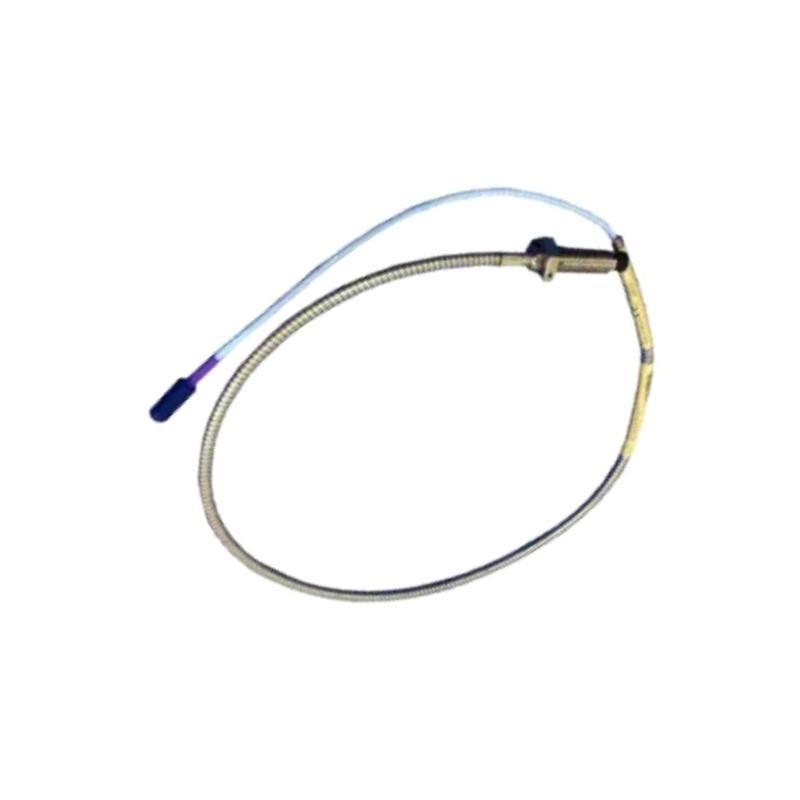

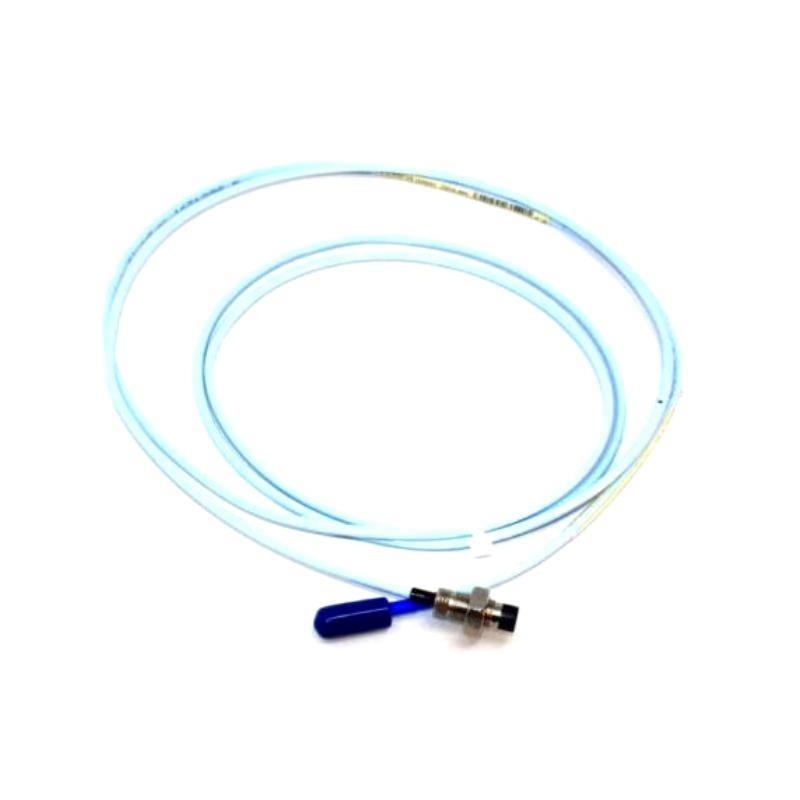

Bently Nevada 330171-00-32-05-05-01 3300 Series 5 mm Eddy-Current Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330171-00-32-05-05-01

Product Type：3300 Series 5 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 5 mm; probe body length 32 mm; cable length 0.5 m

Weight：0.35 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the 330171-00-32-05-05-01 proximity probe?
It is used to measure shaft vibration, axial position, and displacement in rotating machinery applications.

What does the “330171” model series indicate?
It identifies a 3300 Series 5 mm proximity probe designed for industrial eddy-current measurement systems.

What does the “32-05-05-01” configuration represent?
It specifies a 32 mm probe body length, a 0.5 m integral cable, a specific connector option, and a defined standard configuration.

Which monitoring systems are compatible with this probe?
The probe is designed to operate with Bently Nevada 3300 XL Proximitor Sensors and related monitoring modules.

Is this probe suitable for harsh industrial environments?
Yes, the stainless-steel housing and robust construction allow reliable operation in oil-contaminated and high-vibration environments.

What type of output signal does this probe provide?
It provides an analog voltage output proportional to the measured shaft displacement or vibration.

What is the operating temperature range of this proximity probe?
The probe operates reliably from –35 °C to +177 °C.

What are the physical dimensions and weight of the probe?
The probe has a 5 mm tip diameter, a 32 mm body length, a 0.5 m cable, and weighs approximately 0.35 kg.
