Name: ABB Bailey IMASI23 Infi 90 Analog Input Module 100% New
Brand: ABB PLC
SKU: 7005
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

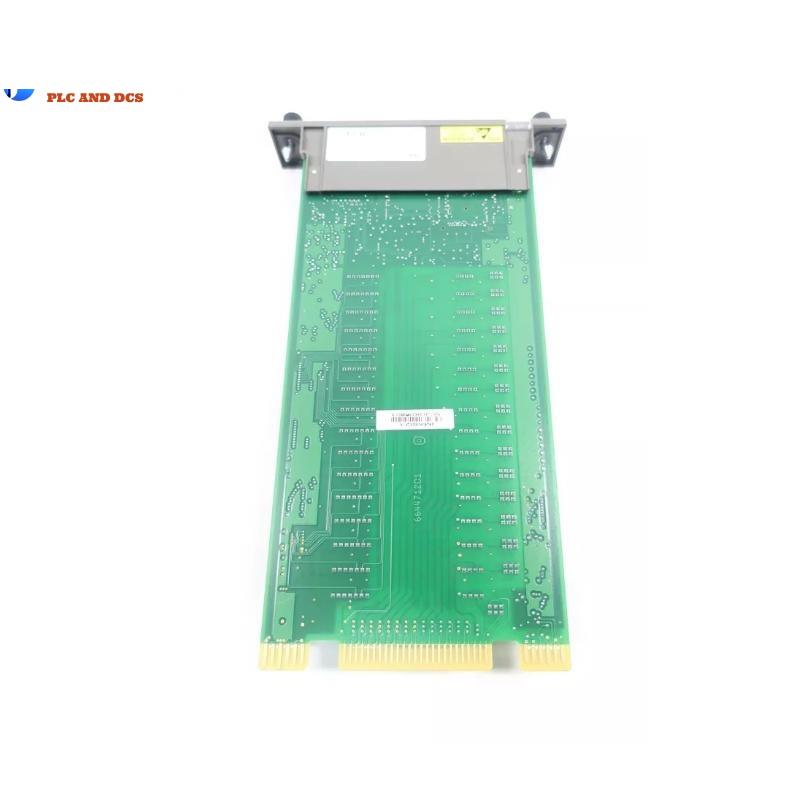

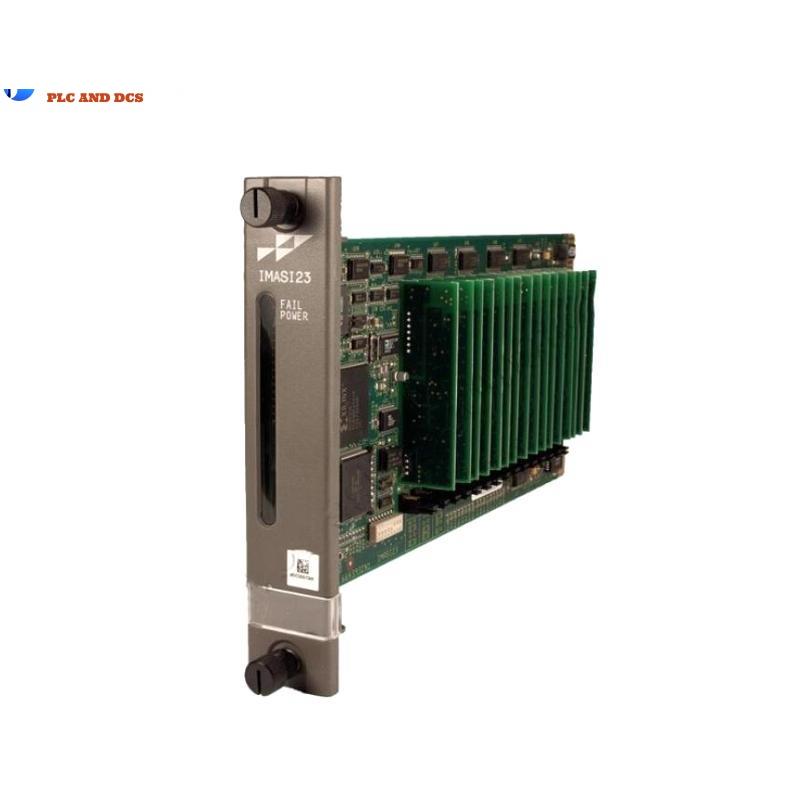

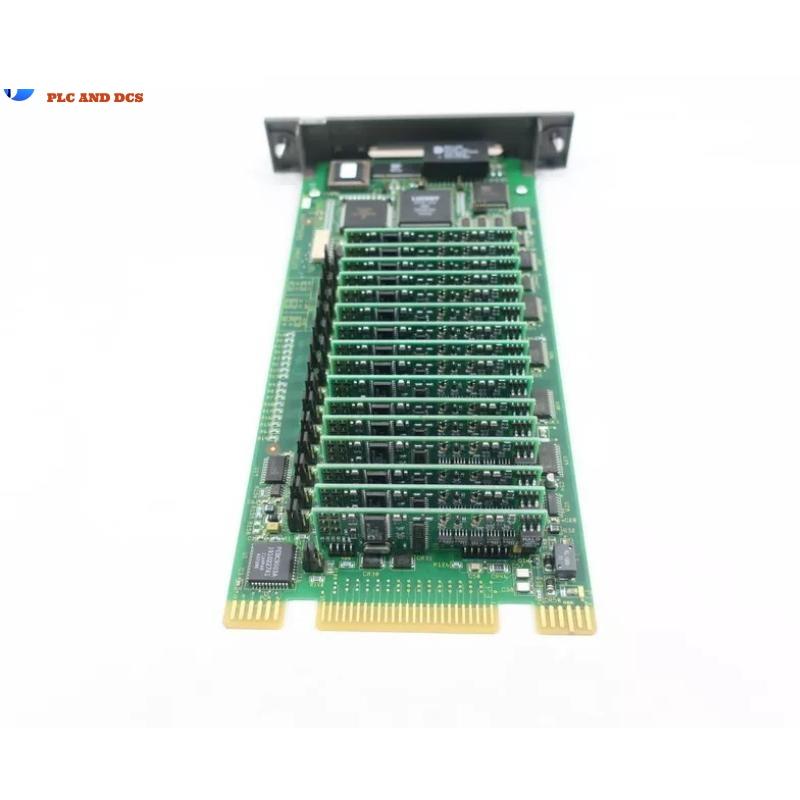

ABB Bailey IMASI23 Infi 90 Analog Input Module 100% New

Brand：ABB Bailey

Item No.：IMASI23

Product Type：Analog Input Module

Product Origin：Sweden (SE)

Dimensions：279.4 x 355.6 x 55.4 mm

Weight：0.4 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of the product is clear and reliable, supports third-party testing, and has complete after-sales support

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the maximum number of analog input channels supported by the IMASI23 module?
The IMASI23 module supports up to 16 isolated analog input channels.

What types of analog signals are compatible with this module?
It supports millivolt, thermocouple, RTD, 1 to 5 VDC, and 4 to 20 mA signals.

Does the module provide cold junction compensation for thermocouple inputs?
Yes, the module uses built-in RTDs in the termination unit for accurate cold junction compensation.

What diagnostic capabilities are included in the IMASI23?
The module includes power-up self-tests, reset diagnostics, real-time monitoring, and watchdog timers.

How is configuration data set for the module?
Through function codes: FC 215 for module configuration, FC 216 for channel configuration, and FC 217 for user calibration.

Is field calibration required for this module?
Normally not required, as the module is factory-calibrated. Field calibration is optional if precision references are available.

What happens if a field wire is disconnected or input is open?
The module detects and reports open input conditions as bad quality on the corresponding channels.

What termination unit and cable are required for connection to field wiring?
The NTAI06 termination unit and either NKAS01 or NKAS11 cable are required for field signal connection.
