Name: Yokogawa AAP849 Analog I/O Module Original
Brand: Yokogawa Electric
SKU: 7022
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

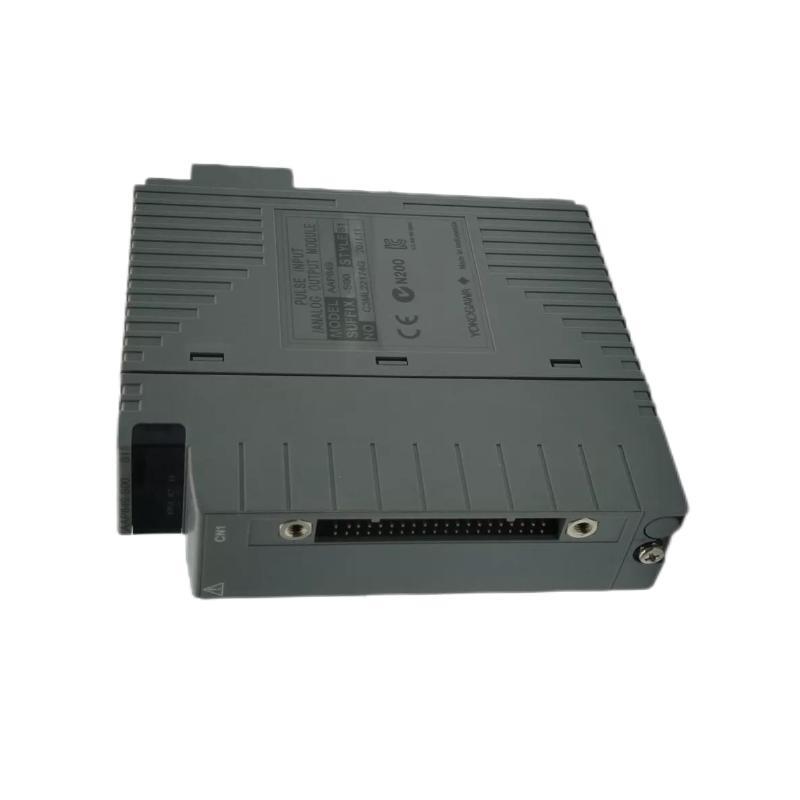

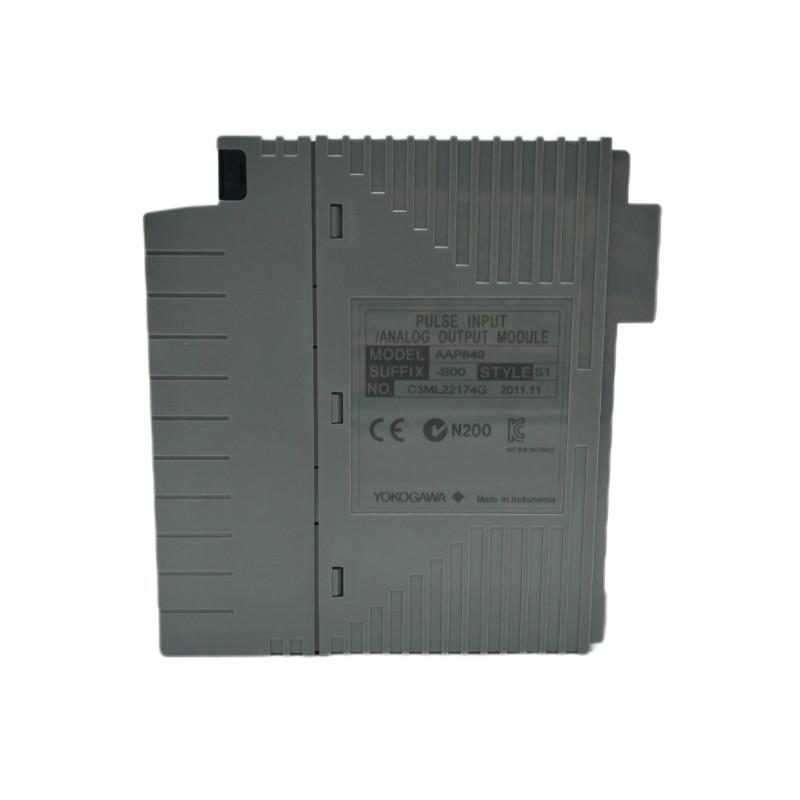

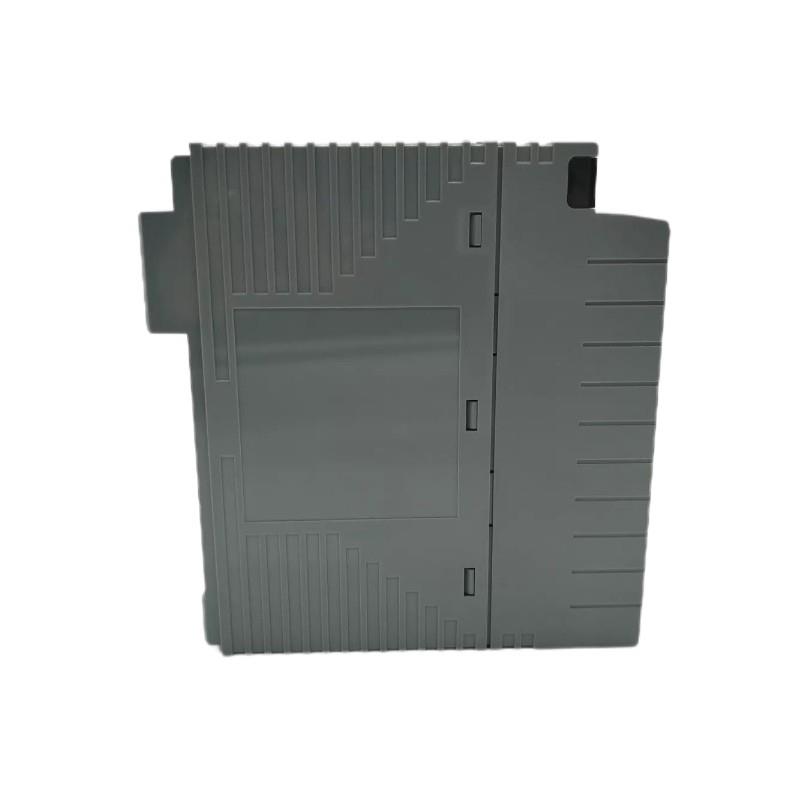

Yokogawa AAP849 Analog I/O Module Original

Brand：Yokogawa

Item No.：AAP849

Product Type：Analog I/O Module

Product Origin：Japan

Dimensions：130 × 32.8 × 127.2 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of signals can the AAP849 module receive on its input channels?
The AAP849 supports contact ON/OFF signals, voltage pulses, and current pulses on its input channels.

How many input and output channels are available on the AAP849?
The module offers 8 pulse input channels and 8 analog output channels.

What is the output signal range of the AAP849?
The output signal range is 4 to 20 mA DC for each analog output channel.

Is the AAP849 suitable for use in a dual-redundant configuration?
Yes, the module can be used in a dual-redundant setup.

What are the selectable shunt resistor values for the pulse input?
The selectable shunt resistance values are 200 Ω, 500 Ω, and 1000 Ω, including an option for no shunt.

What is the minimum input pulse width that the AAP849 can detect?
The minimum detectable pulse width is 40 microseconds.

Can the AAP849 module power external transmitters?
Yes, it provides 12 V DC (±10%) up to 40 mA or 24 V DC (±10%) up to 30 mA per channel.

What types of cable connections are supported by the AAP849?
Supported connection methods include pressure clamp terminals, KS cable adapters, and MIL connectors.
