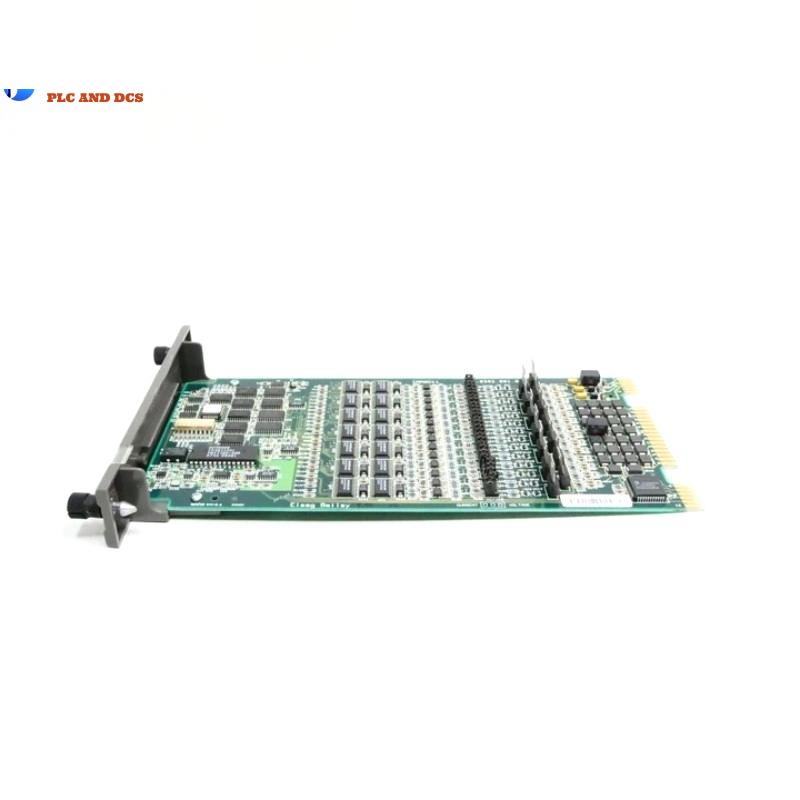

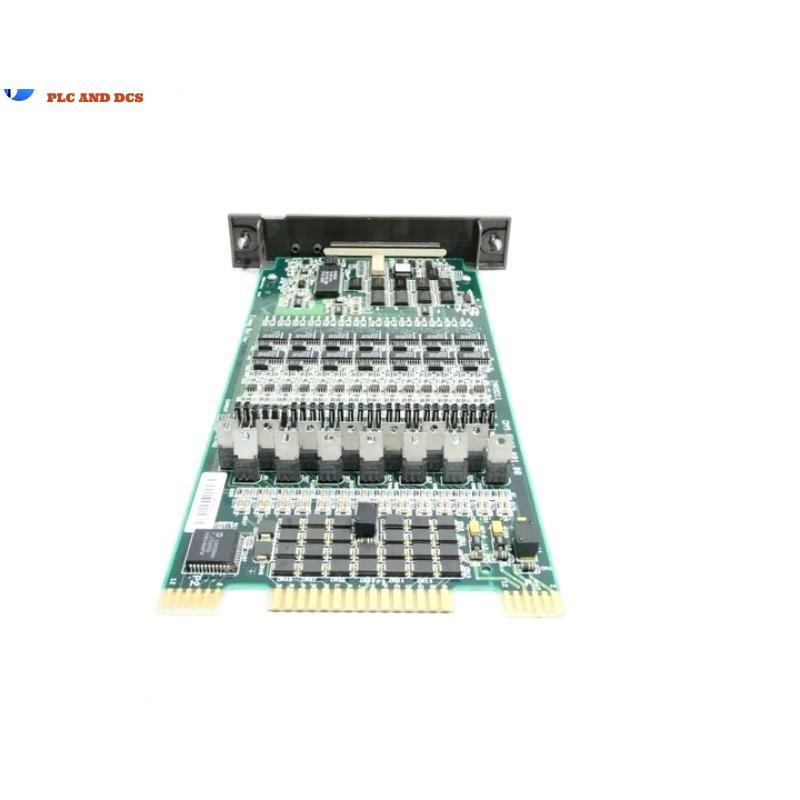

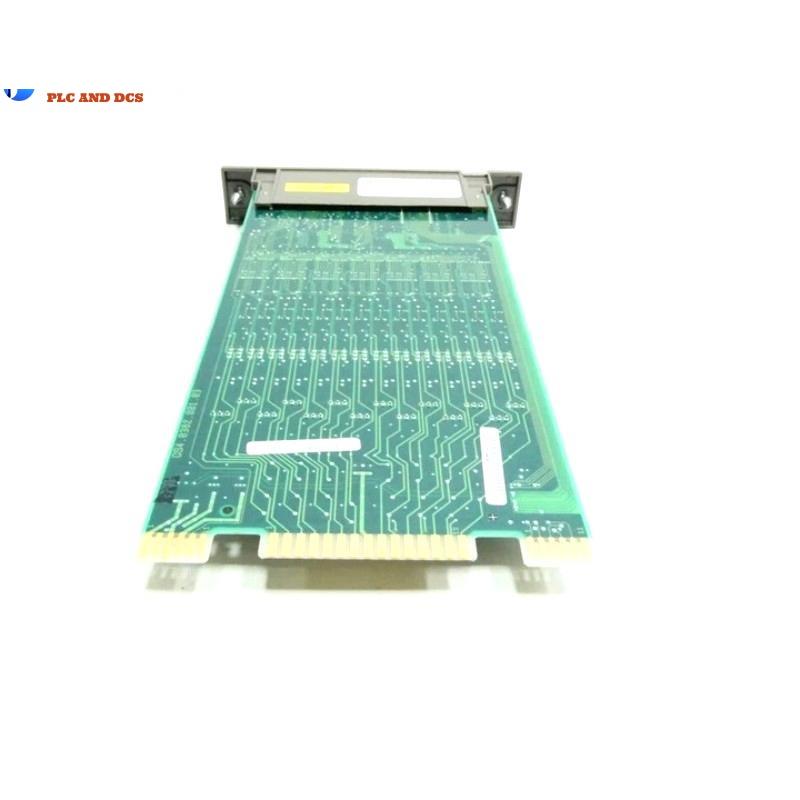

ABB Bailey IMASO01 Infi 90 Analog Slave Output Module New In Stock

Brand：ABB Bailey

Item No.：IMASO01

Product Type：Analog Slave Output Module

Product Origin：Sweden (SE)

Dimensions：271.78 × 358.14 × 73.66 mm

Weight：0.34 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and after-sales docking is smooth

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many analog outputs does the IMASO01 module provide?
It provides up to 14 independent analog output channels.

How is the output mode (voltage/current) configured?
Each channel’s mode is set individually using DIP switches S2 to S15 on the module.

What happens to the outputs on startup or communication loss?
All outputs default to 0% (1 V or 4 mA); during a communication timeout, outputs follow the preset configuration: 0%, 100%, or hold last value.

Does the module have short circuit protection?
Yes, each output is limited to approximately 50 mA to protect against short circuits.

Can the module be hot-swapped?
Yes, the module can be inserted or removed without powering down the system.

What does a red LED on the module indicate?
A red LED indicates a bus fault or communication timeout with the master module.

What are the load limitations for the outputs?
Voltage mode requires a minimum of 22 kΩ load; current mode allows a maximum of 750 Ω.

How does the module connect to field devices?
The module connects to either NTDI01 or NIDI01 termination units via the P3 connector and uses terminal blocks for wiring to field devices.
