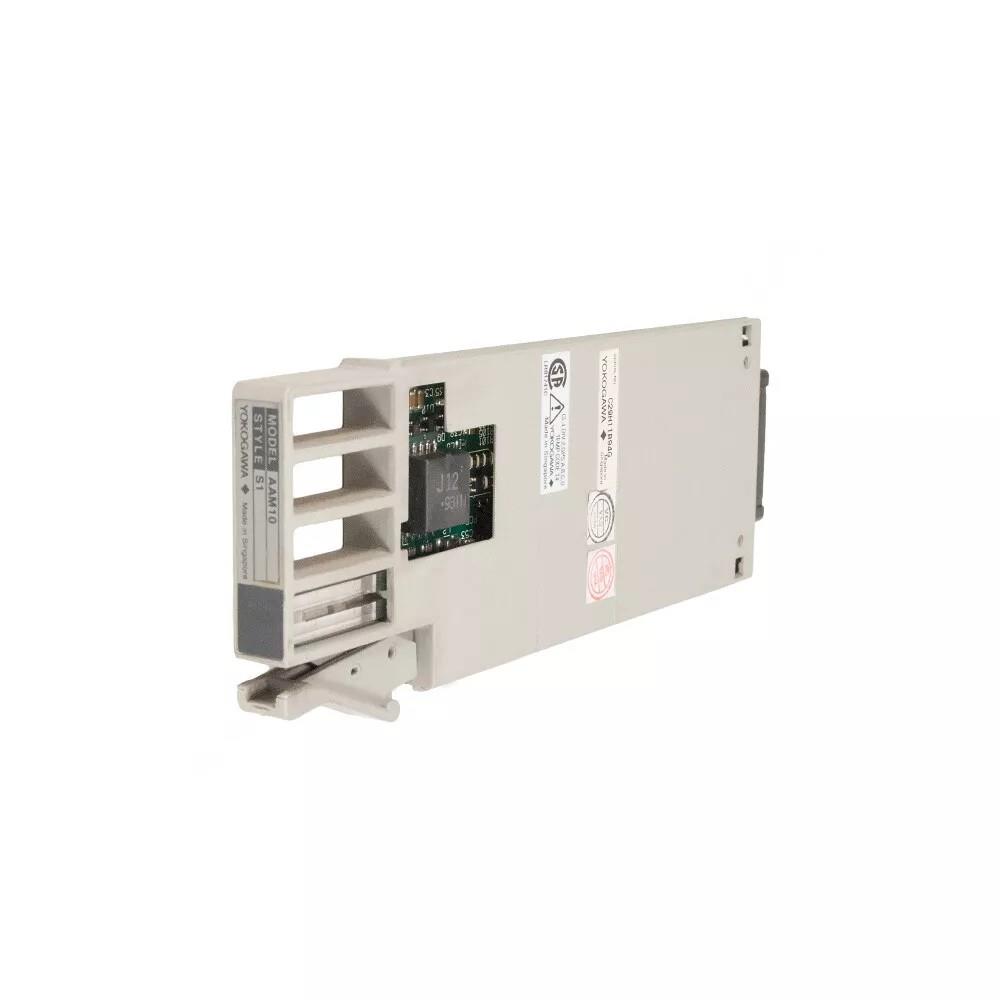

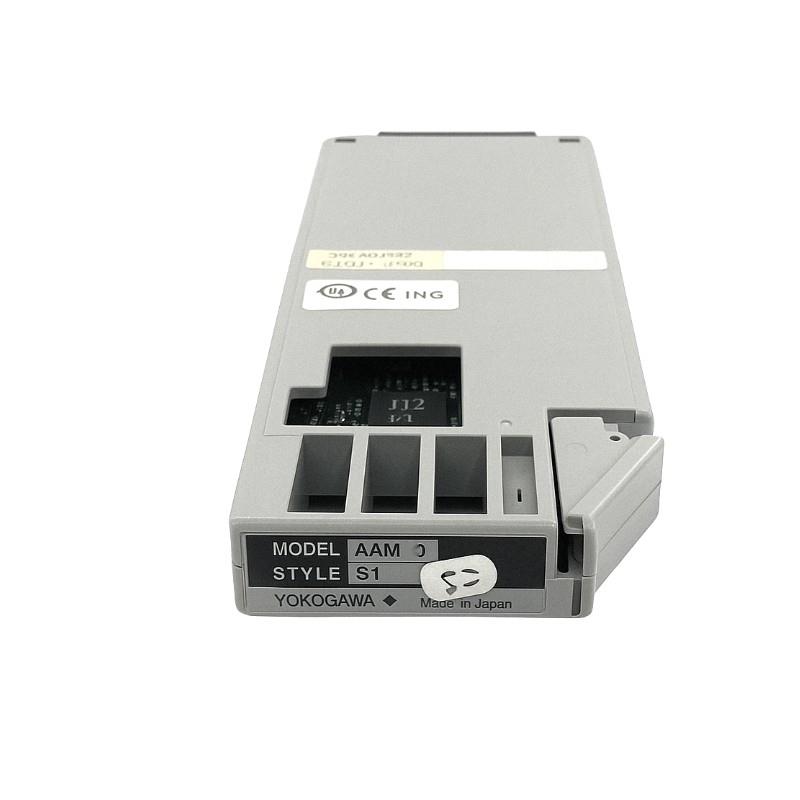

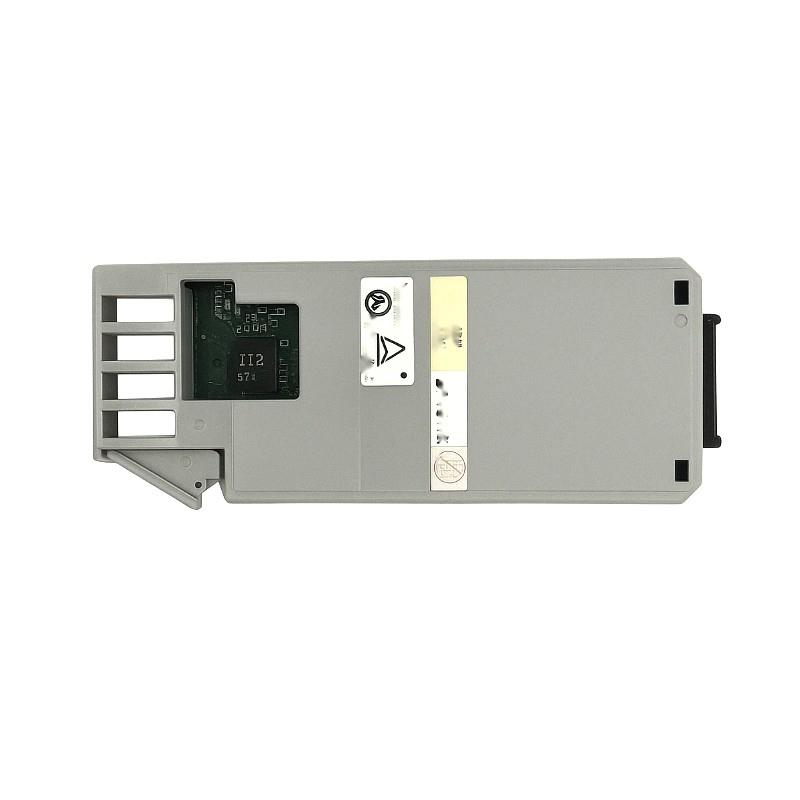

Yokogawa AAM10-S1 Current/Voltage Input Module Original

Yokogawa AAM10-S1 Current/Voltage Input Module Original

Name: Yokogawa AAM10-S1 Current/Voltage Input Module Original
Brand: Yokogawa Electric
SKU: 7041
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 117 left

78%

Add to cart

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa AAM10-S1 Current/Voltage Input Module Original

Brand：Yokogawa

Item No.：AAM10-S1

Product Type：Current/Voltage Input Module

Product Origin：Japan

Dimensions：42.9 × 130 × 146.8 mm

Weight：0.10 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service is continuously followed up

Flexible stock of multiple models, support quick response, welcome to cooperate and exchange!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What types of signals does the AAM10-S1 module support?
The AAM10-S1 supports 4–20 mA DC current signals and 1–5 V DC voltage signals.

How many input channels are available on the AAM10-S1?
The module provides two isolated analog input channels.

Is the input electrically isolated from the system side?
Yes, the AAM10-S1 provides electrical isolation between the field and the system to ensure signal integrity and safety.

What is the typical resolution of the analog input on this module?
The AAM10-S1 offers a 12-bit resolution for precise analog signal conversion.

Can this module be used in systems with noise interference from power lines?
Yes, it has a high common mode rejection ratio (≥120 dB) and normal mode rejection ratio (≥40 dB) at 50/60 Hz to reject noise effectively.

Does the module require an independent power supply?
No, the module receives power from the nest in which it is mounted (AMN11 or AMN12).

Is the module suitable for use with both CENTUM CS and CENTUM VP systems?
Yes, it is compatible with CENTUM CS, CS 1000, CS 3000, and CENTUM VP systems.

What is the recommended installation location for this module?
The AAM10-S1 is designed to be installed on the AMN11 or AMN12 nests within the Yokogawa RIO system cabinets.
