Name: Triconex 3501E Digital Input Module Unbelievable Prices!
Brand: Invensys Triconex
SKU: 7079
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

The Triconex line allows clients to optimize their choice of safety system for their specific requirements. Our strong parts are Tricon Rack, Tricon Power Modules, Main Processor Module, Input Module, Output Module, Tricon Communication Module TCM.

Product Introduction

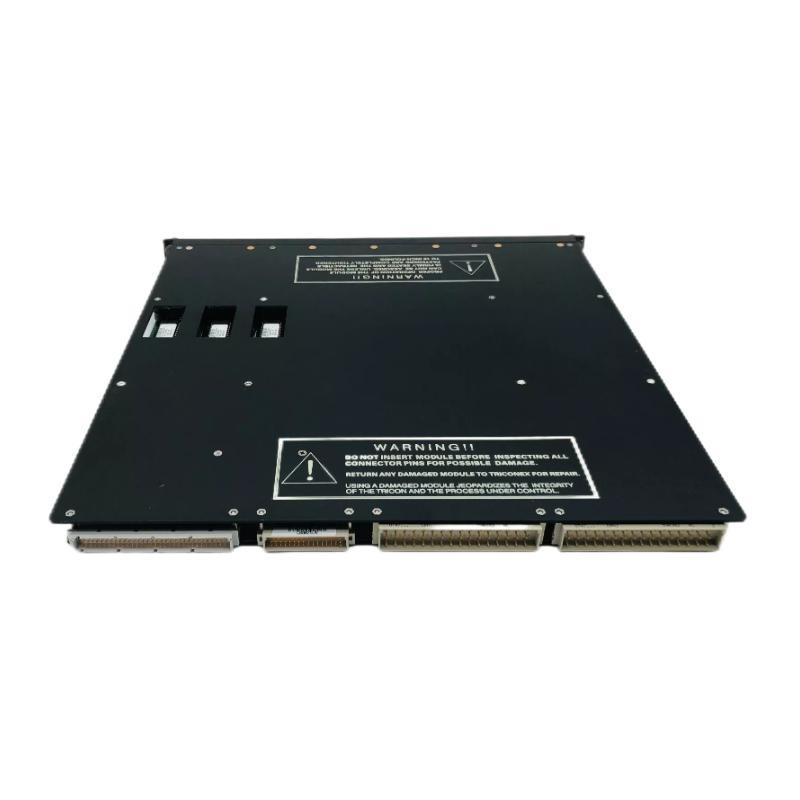

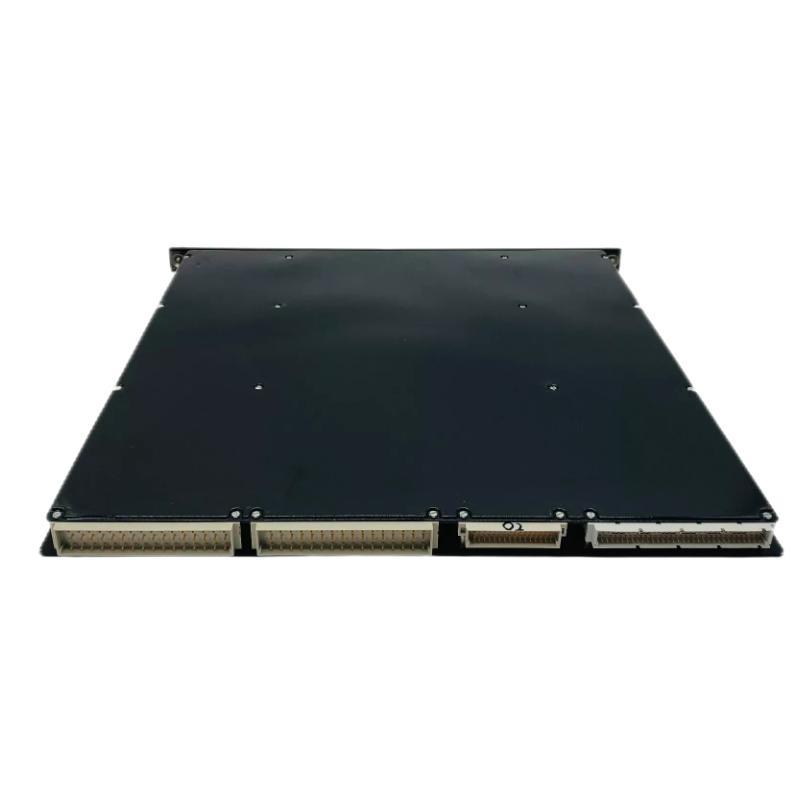

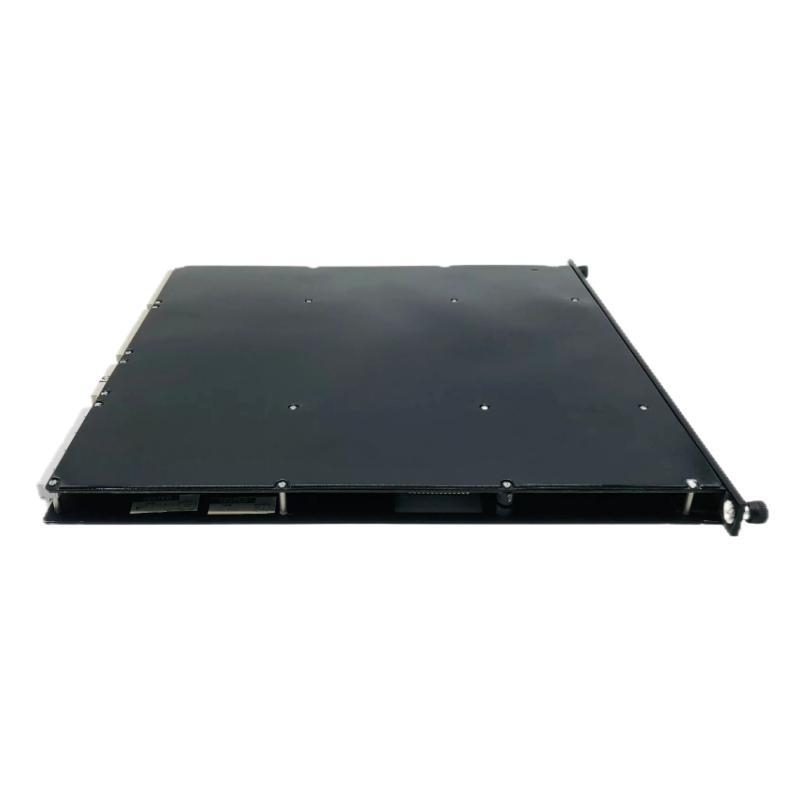

Triconex 3501E Digital Input Module Unbelievable Prices!

Brand：Invensys Triconex

Item No.：3501E

Product Type：Digital Input Module

Product Origin：USA

Dimensions：132 x 205 x 48 mm

Weight：2.267 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Please contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQs

What types of input signals does the Triconex 3501E Digital Input Module support?
The 3501E module supports 115 VAC/VDC input signals, all of which are non-commoned and isolated.

What is the typical turn-on current for the 3501E?
The typical turn-on current for the 3501E module is between 6-9 mA.

What is the input delay of the 3501E module?
The input delay for the 3501E module is less than 8 ms for OFF to ON and less than 15 ms for ON to OFF.

What is the maximum voltage for the 3501E?
The maximum voltage for the 3501E module is 155 VAC/VDC.

Does the 3501E support hot-spare capability?
Yes, the 3501E module supports hot-spare capability, and it has a triple redundant design to ensure high availability.

Does the 3501E module include diagnostic indicators?
Yes, the 3501E module includes diagnostic indicators for each input point, showing PASS, FAULT, and ACTIVE statuses.

Does the 3501E require an external termination panel for installation?
Yes, the 3501E module requires an external termination panel (ETP) for connection to the Tricon backplane.

What are the dimensions and weight of the 3501E module?
The dimensions of the 3501E module are 132 x 205 x 48 mm, and its weight is 2.267 kg.
