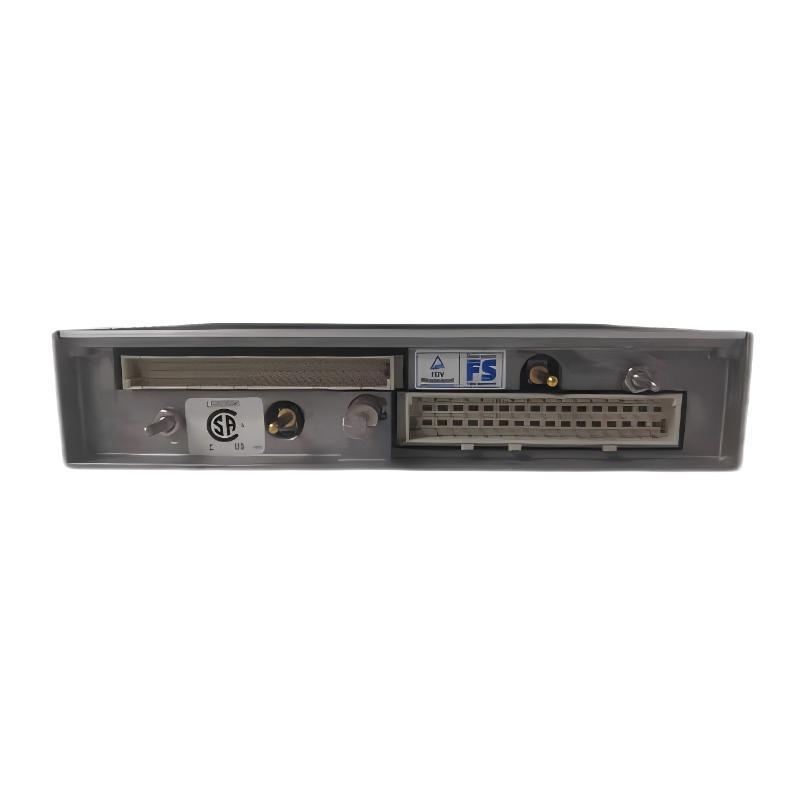

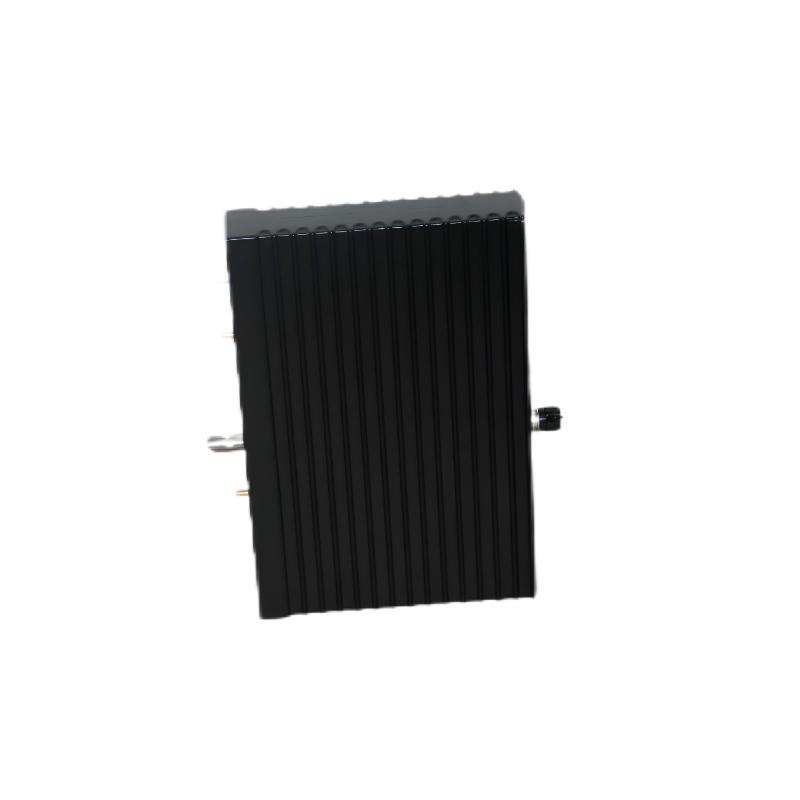

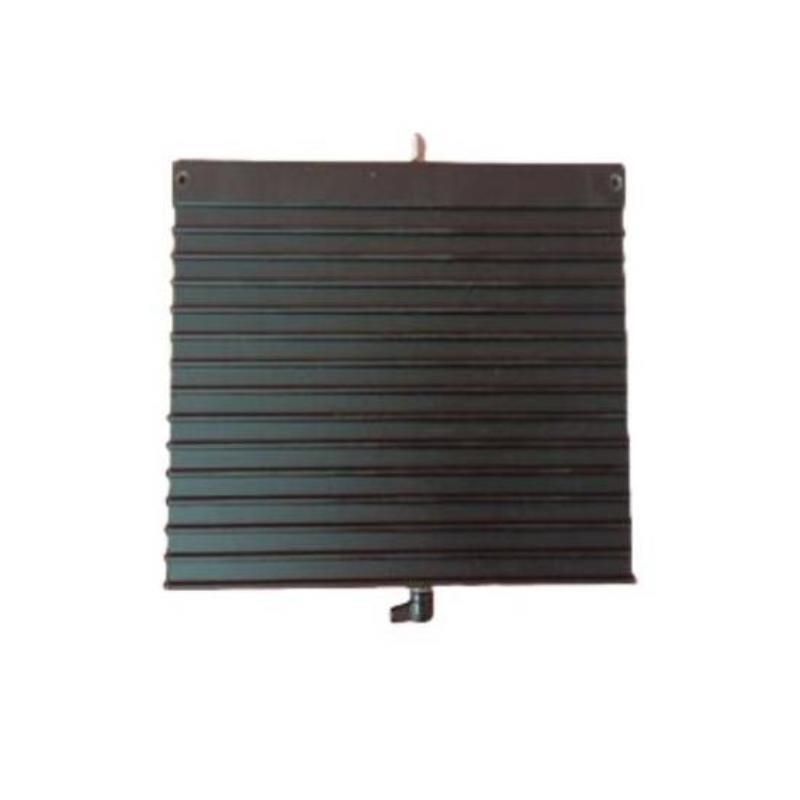

Name: Triconex 3482 High-Current Analog Output Module New In Stock
Brand: Invensys Triconex
SKU: 7081
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

The Triconex line allows clients to optimize their choice of safety system for their specific requirements. Our strong parts are Tricon Rack, Tricon Power Modules, Main Processor Module, Input Module, Output Module, Tricon Communication Module TCM.

Product Introduction

Triconex 3482 High-Current Analog Output Module New In Stock

Brand：Invensys Triconex

Item No.：3482

Product Type：High-Current Analog Output Module

Product Origin：USA

Dimensions：173 x 117 x 25 mm

Weight：0.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source, data support test content, efficient after-sales processing

Regular models are in stock for a long time, inventory is stable, welcome to inquire about prices!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the output range for Points 1-2 on the Triconex 3482 module?
The output range for Points 1-2 is 4-20 mA, with a controlled 0-22 mA over-range, and a 0 mA output capability (step function <2 mA).

What is the resolution of the 3482 High-Current Analog Output Module?
The resolution of the 3482 module is 12 bits.

What is the output accuracy for Points 1-2?
The output accuracy for Points 1-2 is less than 0.25% of Full Scale Range (FSR) (0-22 mA), from 0°C to 70°C (32°F to 158°F).

What diagnostic features does the 3482 module support?
The 3482 module supports Forced-Switch Diagnostic (FSD), continuously monitoring and verifying output integrity.

What is the maximum external loop power?
The maximum external loop power is 32 V DC, with a nominal value of 24 V DC.

What protection does the module have against over-range?
The module has over-range protection of 36 V DC, continuous, and 0 V DC, continuous for both Points 1-2 and Points 3-4.

What is the switching time when there is a failure in one leg?
The switch time on leg failure is typically 1 ms, with a maximum of 3 ms.

What is the size and weight of the Triconex 3482 module?
The Triconex 3482 High-Current Analog Output Module has dimensions of 173 x 117 x 25 mm and weighs 0.5 kg.
