Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

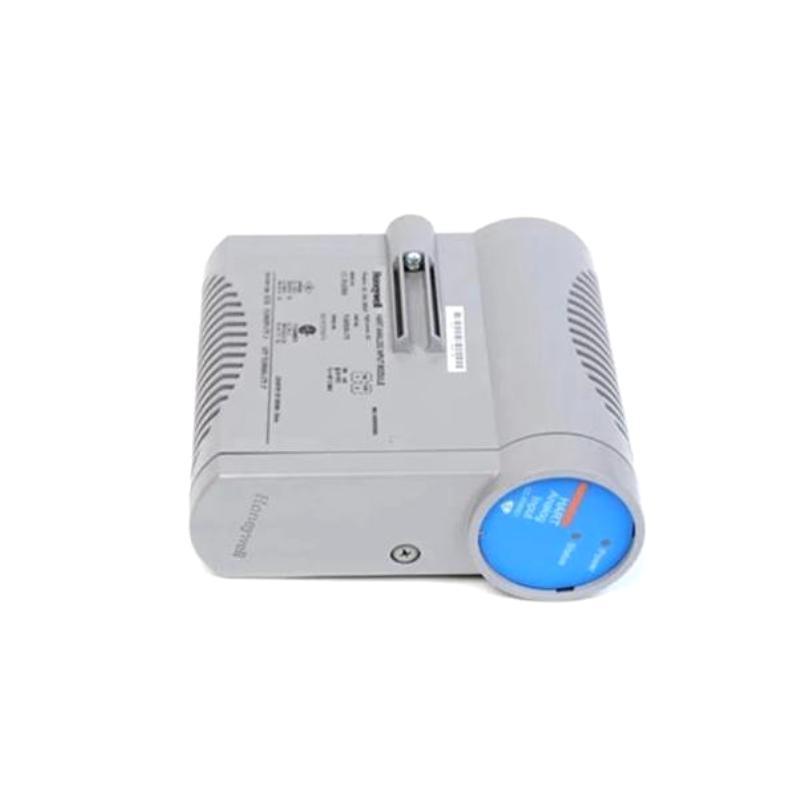

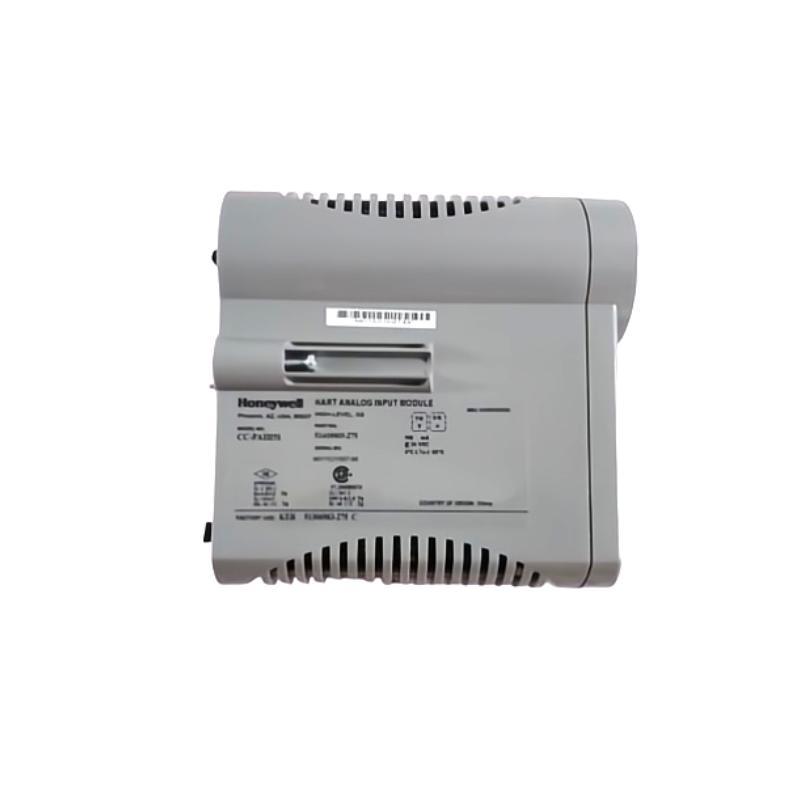

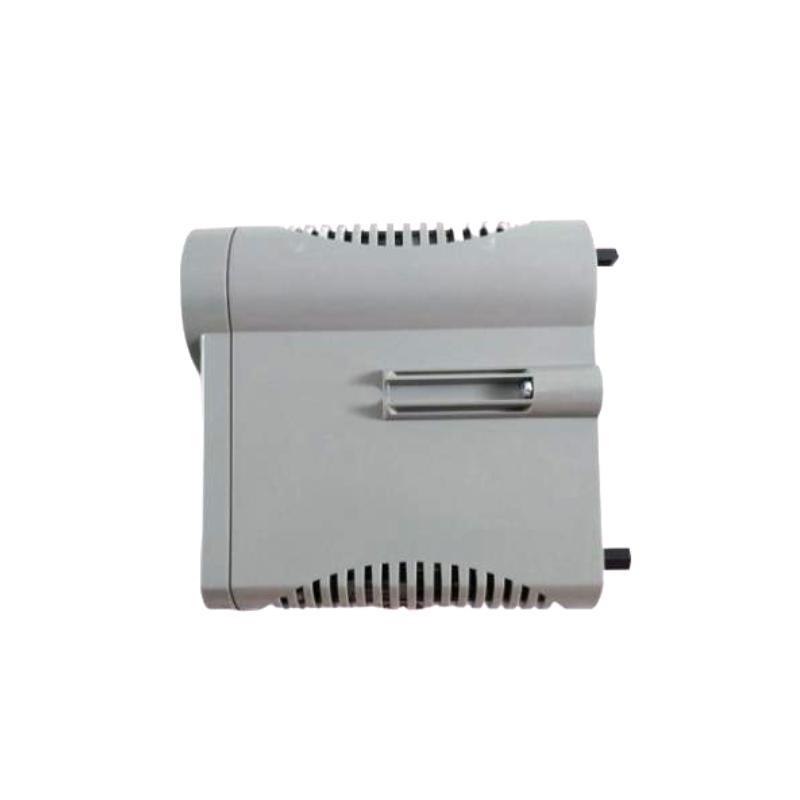

Honeywell CC-PAIH51 51410069-276 Experion Series-C Analog Input Module Fast Shipping!

Brand：Honeywell

Item No.：CC-PAIH51 51410069-276

Product Type：Analog Input Module

Product Origin：USA

Dimensions：63.5 x 124.46 x 307.34 mm

Weight：0.299 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular channels, complete test instructions, and responsive services

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the input type for the Honeywell CC-PAIH51 module?
The CC-PAIH51 module accepts current inputs from 2-wire or self-powered transmitters.

How many input channels does the CC-PAIH51 have?
The module provides 16 input channels, all single-ended.

What is the A/D converter resolution for the CC-PAIH51?
The A/D converter resolution is 16 bits.

What is the accuracy of the module?
The hardware accuracy is ±0.075% of full scale at 23.5°C ± 2°C, and ±0.15% of full scale from 0°C to 60°C.

Does the CC-PAIH51 module support redundancy?
Yes, the module supports redundancy with the use of the CC-TAIX61 IOTA (12″).

What is the maximum normal mode input for the CC-PAIH51?
The maximum normal mode input is ±30 Volts.

What are the dimensions and weight of the CC-PAIH51 module?
The module’s dimensions are 63.5 x 124.46 x 307.34 mm, and it weighs 0.299 kg.

What type of field power conditioning does the module provide?
The module features individually protected current limiting circuits for Class 1, Division 2 non-incendive interfacing. No fusing is required.
