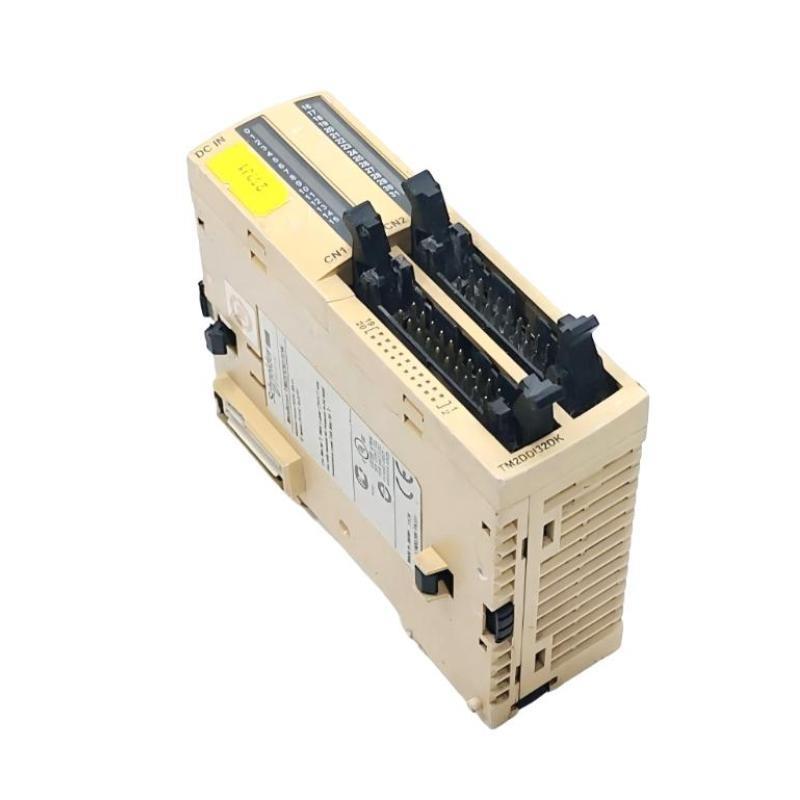

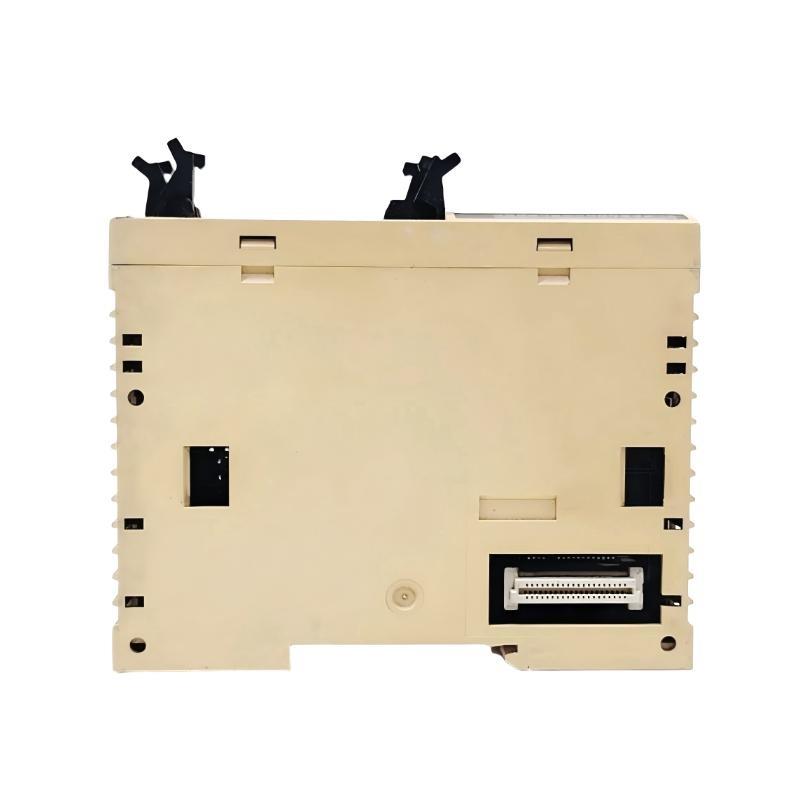

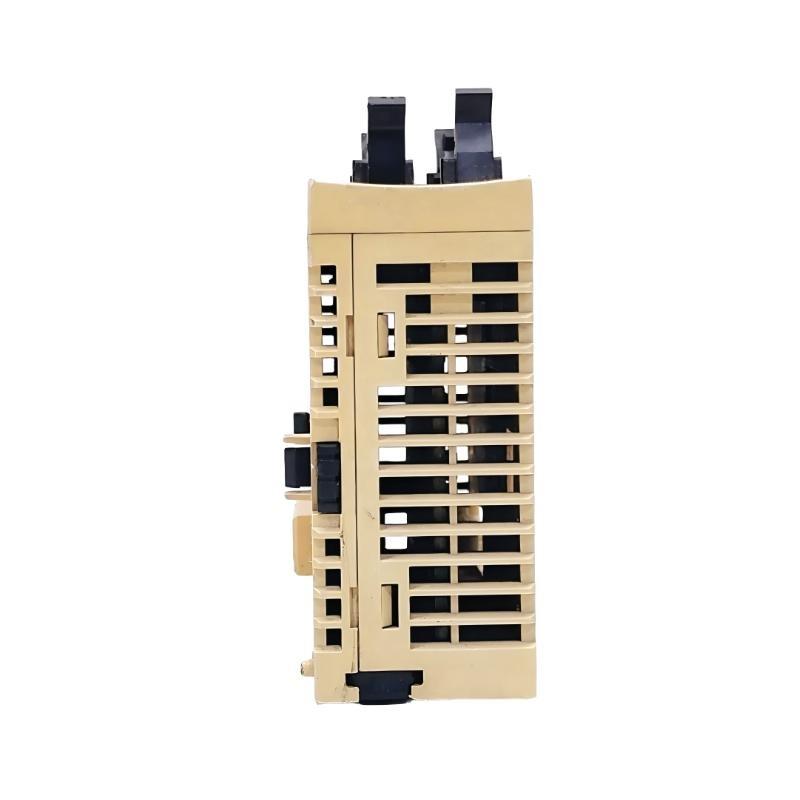

Schneider TM2DDI32DK Discrete Input Module Original

FAQ

What type of field devices work best with this module?
It is ideal for sensors, switches, and control contacts with sinking-type outputs at 24 V DC.

Can the input channels be individually configured?
Each channel can be addressed individually in the PLC program, while electrical parameters are set at module level.

How does the module handle electrical noise?
It uses built-in filtering and isolation to improve noise immunity in industrial environments.

What happens if an input signal exceeds the rated voltage?
Internal protection limits potential damage and prevents incorrect signal reading.

Can this module be replaced without shutting down the PLC?
Hot-swap support depends on the controller and system configuration; usually power-off replacement is recommended.

How are input faults detected by the system?
Abnormal signal conditions are reflected through status LEDs and PLC diagnostics.

Does the module require an external power supply for the inputs?
Yes, a suitable 24 V DC field supply is required for proper sensing.

Can this module be combined with both analog and digital TM2 modules?
Yes, it integrates seamlessly with other TM2 series I/O modules in the same system.
