Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

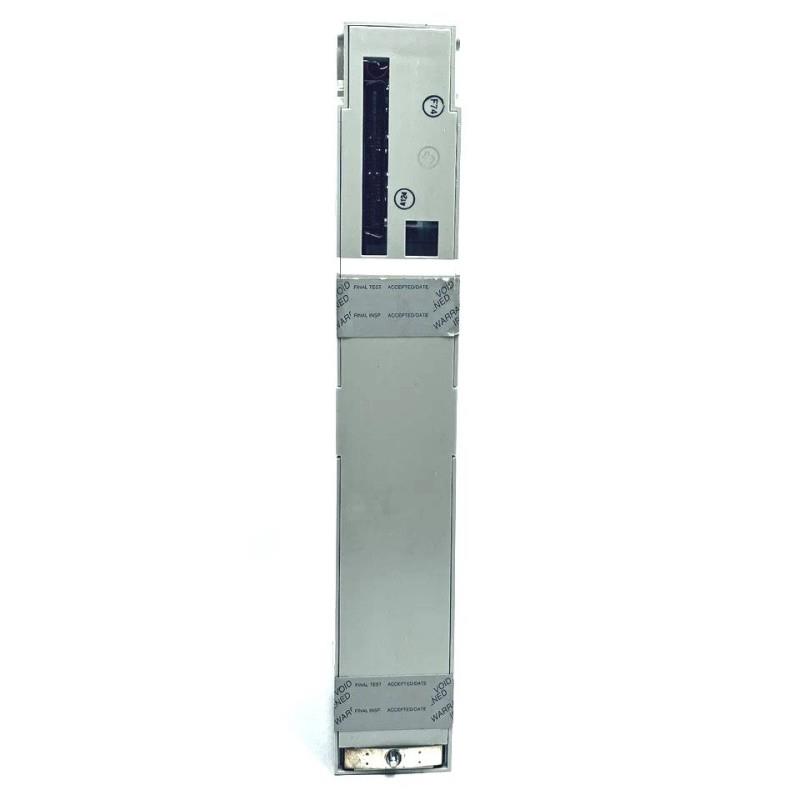

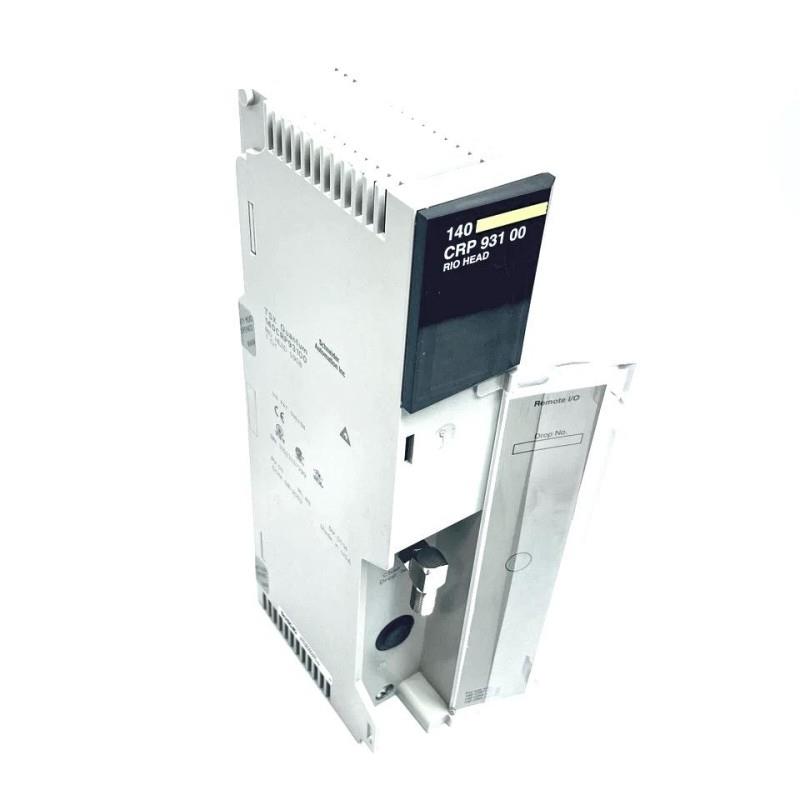

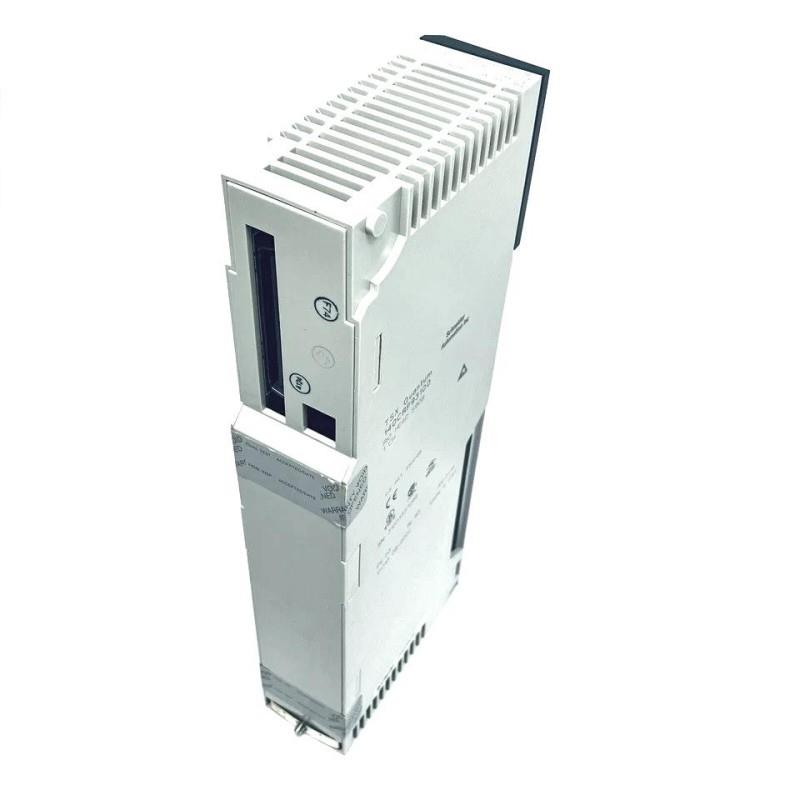

Schneider 140CRP93100 RIO Head End Adaptor Module 12-Month Warranty

Brand：Schneider

Item No.：140CRP93100

Product Type：RIO Head End Adaptor Module

Product Origin：France

Dimensions：43 × 163 × 314 mm

Weight：0.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular channels, complete test instructions, and responsive services

Regular models are in stock for a long time, the inventory is stable, welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQs

What type of I/O systems is the 140CRP93100 module compatible with?
The module supports I/O systems from Quantum, 200 Series, 500 Series, 800 Series, and SY/MAX, among others.

How many I/O modules can the 140CRP93100 support?
The module can support a maximum of 31 I/O modules, each with 64 inputs and 64 outputs.

What is the data transfer rate of the module?
The data transfer rate is 1.544 mbps.

What is the current requirement for the module?
The current requirement is 600 mA for single-channel mode and 750 mA for dual-channel mode.

How can communication issues be diagnosed?
The module provides various diagnostic functions, including power-up checks, dual-port memory checks, checksum, RAM address/data checks, and more.

Does the module require external power?
No, the module does not require external power; it operates with power provided through its connection to the system.

What information do the module’s LED indicators show?
The LED indicators show “Ready” (green), “Com Act” (green), and “Error” (red).

Can the coaxial cable termination be configured?
Yes, the module uses an internal 75Ω coaxial cable termination for connections.
