Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

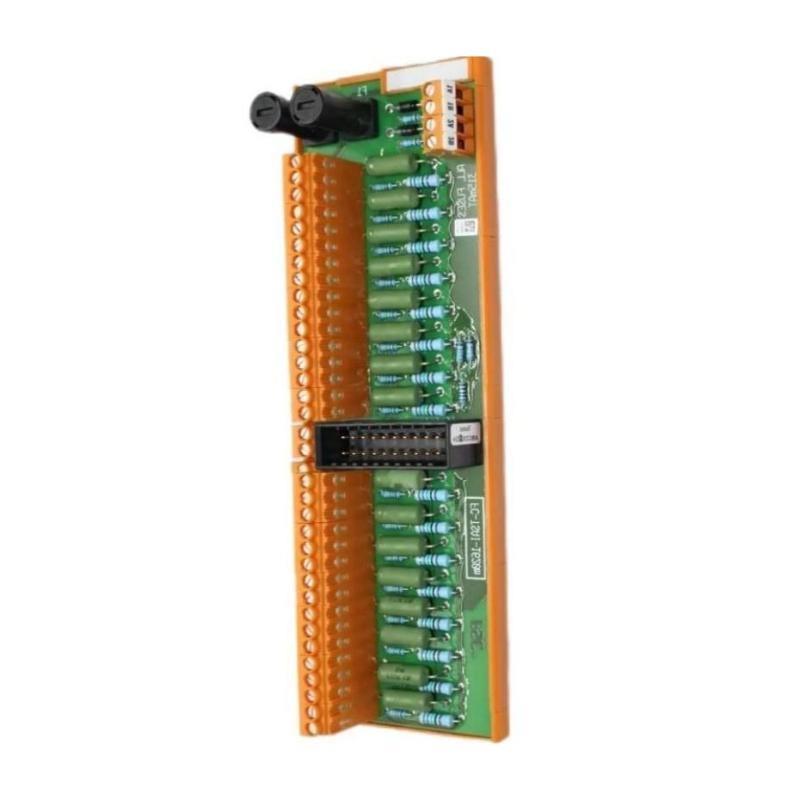

Honeywell FC-TSAI-1620 Safety Manager System Analog Input Module 12-Month Warranty

Brand：Honeywell

Item No.：FC-TSAI-1620

Product Type：Analog Input Module

Product Origin：USA

Dimensions：210 × 70 × 60 mm

Weight：0.5 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service is continuously followed up

Flexible stock of multiple models, support quick response, welcome to cooperate and exchange!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What are the main functions of the FC-TSAI-1620m module?
Answer: The main functions of the FC-TSAI-1620m module include linear direct conversion of 0—20 mA field signals to the signal levels required by the SAI-1620m module, providing power to each transmitter, and enabling external power monitoring.

What input current range does the FC-TSAI-1620m module support?
Answer: The module supports an input current range of 0 to 25 mA.

How many input channels does the FC-TSAI-1620m module have?
Answer: The FC-TSAI-1620m module has 16 input channels, divided into two groups of eight channels with a common 0 V.

How is the FC-TSAI-1620m module powered?
Answer: The module is powered by an external 30 Vdc supply, with a current of 3 mA when there is no load on the input loops.

What type of DIN rail does the FC-TSAI-1620m module support?
Answer: The module supports TS32 / TS35 × 7.5 DIN rails.

Is the FC-TSAI-1620m module suitable for use in Class I Division 2 hazardous areas?
Answer: Yes, the FC-TSAI-1620m module can be used in non-incendiary field circuits for Class I Division 2 applications.

What is the output voltage of this module?
Answer: The output voltage of the module is 0—4 Vdc, with an accuracy of 0.1%.

What are the dimensions and weight of the FC-TSAI-1620m module?
Answer: The dimensions are 210 × 70 × 60 mm, and the weight is 0.5 kg.
