ABB DI802 3BSE022360R1 S800 I/O Systems Digital Input Module Trusted supplier

ABB DI802 3BSE022360R1 S800 I/O Systems Digital Input Module Trusted supplier

Name: ABB DI802 3BSE022360R1 S800 I/O Systems Digital Input Module Trusted supplier
Brand: ABB PLC
SKU: 7170
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 60 left

40%

Add to cart

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

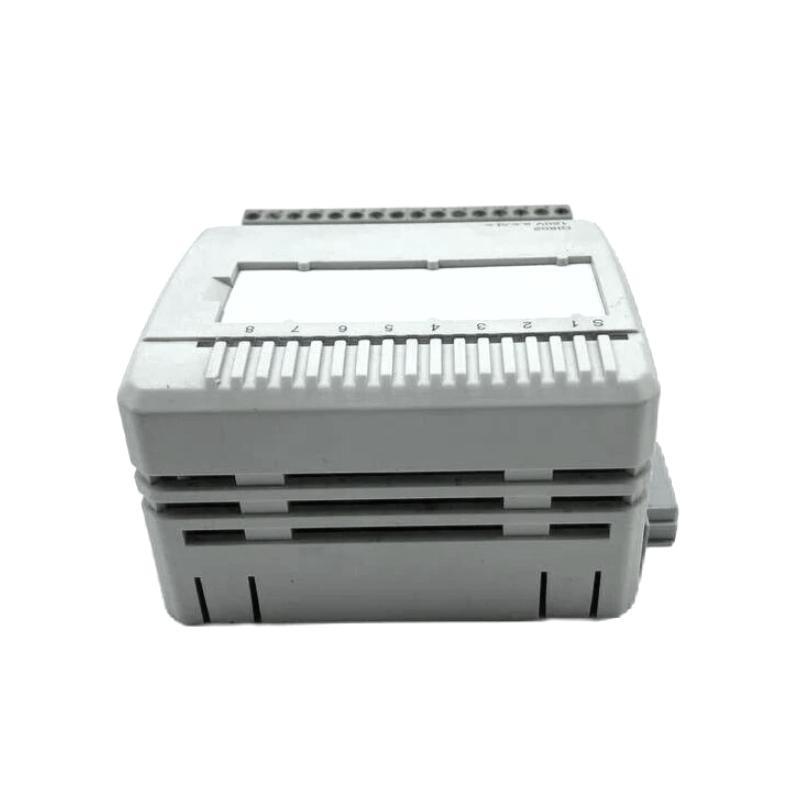

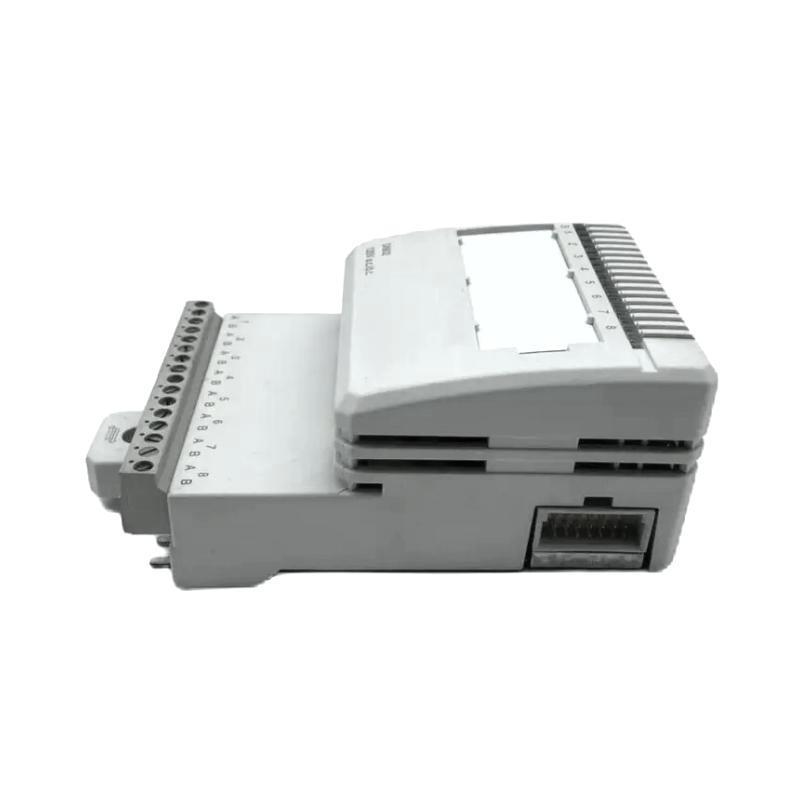

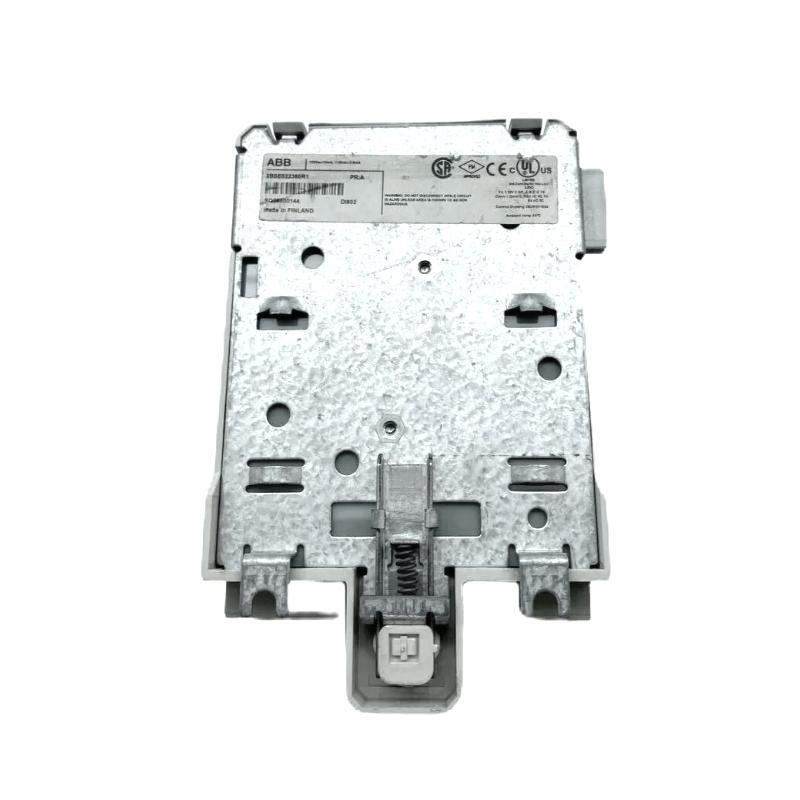

ABB DI802 3BSE022360R1 S800 I/O Systems Digital Input Module Trusted supplier

Brand：ABB

Item No.：DI802 3BSE022360R1

Product Type：Digital Input Module

Product Origin：Sweden (SE)

Dimensions：86.1×58.5×110 mm

Weight：0.24 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and has smooth after-sales connection

Large stock, diverse series, suitable for different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of signals does the DI802 module accept?
The module supports 120 V AC or 110 V DC digital input signals, using a current sinking configuration.

Are the input channels electrically isolated?
Yes, all 8 channels are individually isolated to enhance system safety and reliability.

What is the function of channel 8?
Channel 8 can be used to monitor field power voltage for channels 1 to 7.

Does the module offer input signal filtering?
Yes, digital filtering is available with selectable delay times of 2, 4, 8, and 16 ms.

How is the module installed?
The module is DIN rail mountable with an integrated locking mechanism.

What are the acceptable wiring specifications?
Solid wires: 0.05–2.5 mm², Stranded wires: 0.05–1.5 mm², Strip length: 6–7.5 mm.

What is the insulation voltage of the DI802?
The rated insulation voltage is 250 V, and dielectric test voltage is 2000 V AC.

In which industrial environments is DI802 suitable?
It is suitable for high-voltage input monitoring in industrial automation systems requiring high reliability and voltage supervision.
