Product Introduction

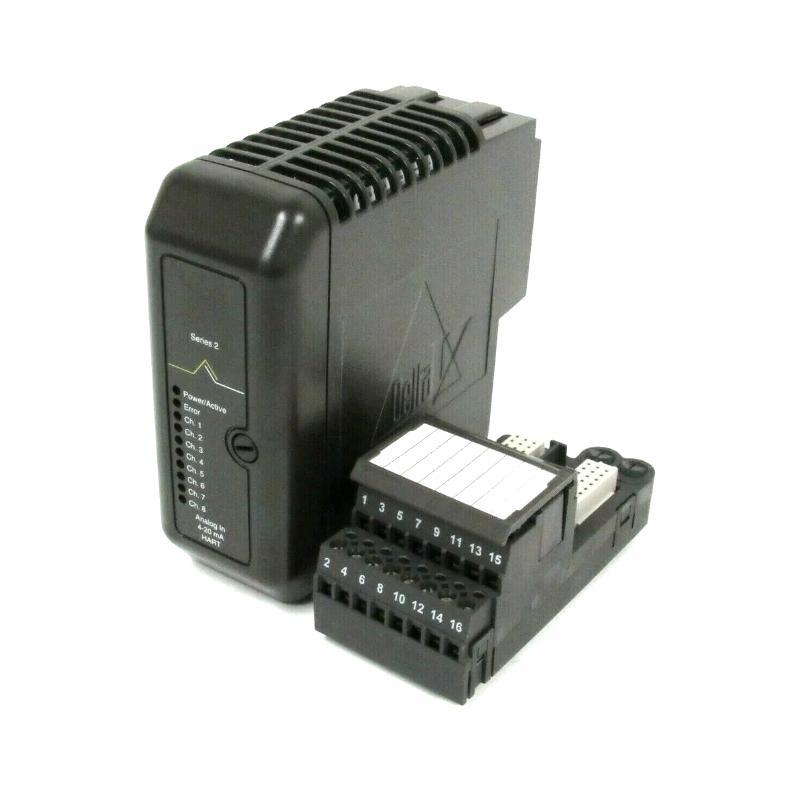

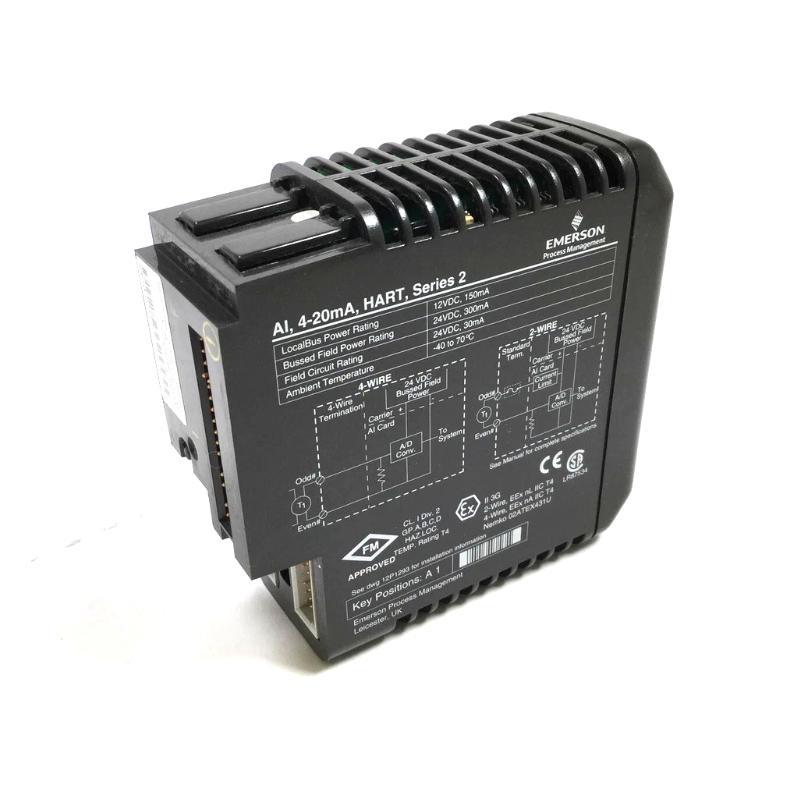

Emerson KJ3222X1-BA1 12P2532X092 DeltaV Analog Input Card Fast Shipping!

Brand：Emerson

Item No.：KJ3222X1-BA1 12P2532X092

Product Type：DeltaV Analog Input Card

Product Origin：USA

Dimensions：107 x 41 x 105 mm

Weight：0.18 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The import process is standardized, supports testing, and after-sales service is guaranteed

Various models are flexible in stock, support quick response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ (Frequently Asked Questions)

What is the power supply requirement for the KJ3222X1-BA1 Analog Input Card?
The power supply requirements are dual DC/DC, with a local bus power rating of 12 VDC at 150 mA and a bussed field power rating of 24 VDC at 300 mA.

What is the operating temperature range for the KJ3222X1-BA1?
The operating temperature range is from -40°C to 70°C.

Is the KJ3222X1-BA1 suitable for use in hazardous areas?
Yes, the KJ3222X1-BA1 is certified for use in hazardous atmospheres with certifications such as Ex nA IIC Gc and Ex nA [nL] IIC Gc.

How many channels does the KJ3222X1-BA1 card support?
The KJ3222X1-BA1 supports 8 channels of 4-20 mA HART Series 2 signals.

What is the vibration resistance of the KJ3222X1-BA1?
The KJ3222X1-BA1 is resistant to vibrations with a 1mm peak-to-peak from 5 to 16Hz, and 0.5g from 16 to 150Hz.

What are the field circuit and field power ratings?
The field power rating is 24 VDC at 300 mA, and the field circuit rating is 24 VDC at 30 mA.

What safety certifications does the KJ3222X1-BA1 have?
The KJ3222X1-BA1 has several safety certifications, including FM, ATEX, and IECEx approvals.

Can the KJ3222X1-BA1 be installed while the system is powered?
Yes, the unit can be inserted or removed while the system power is on, but only one unit at a time and under specific conditions.
