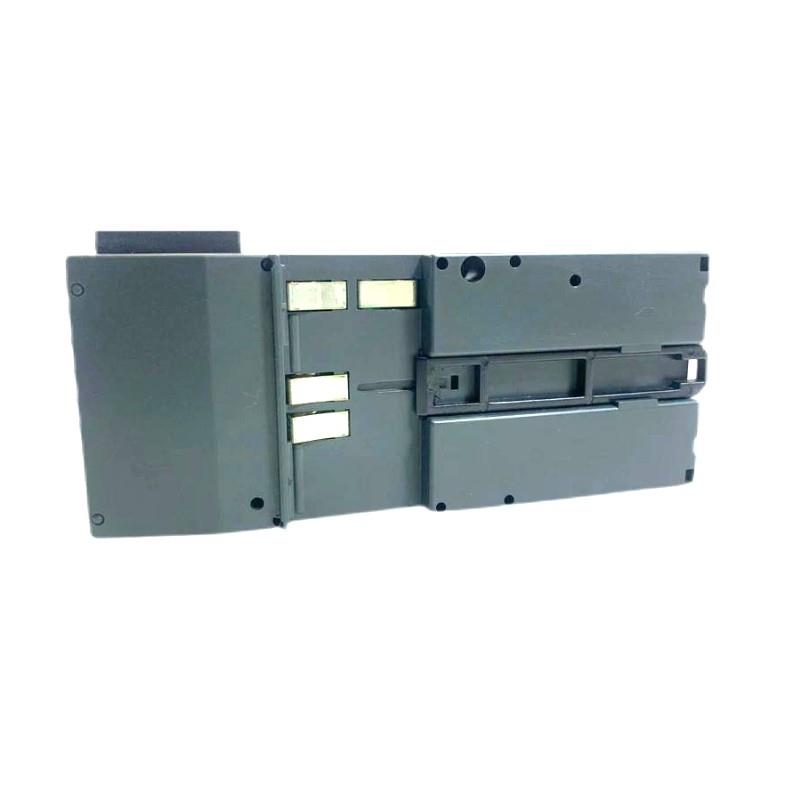

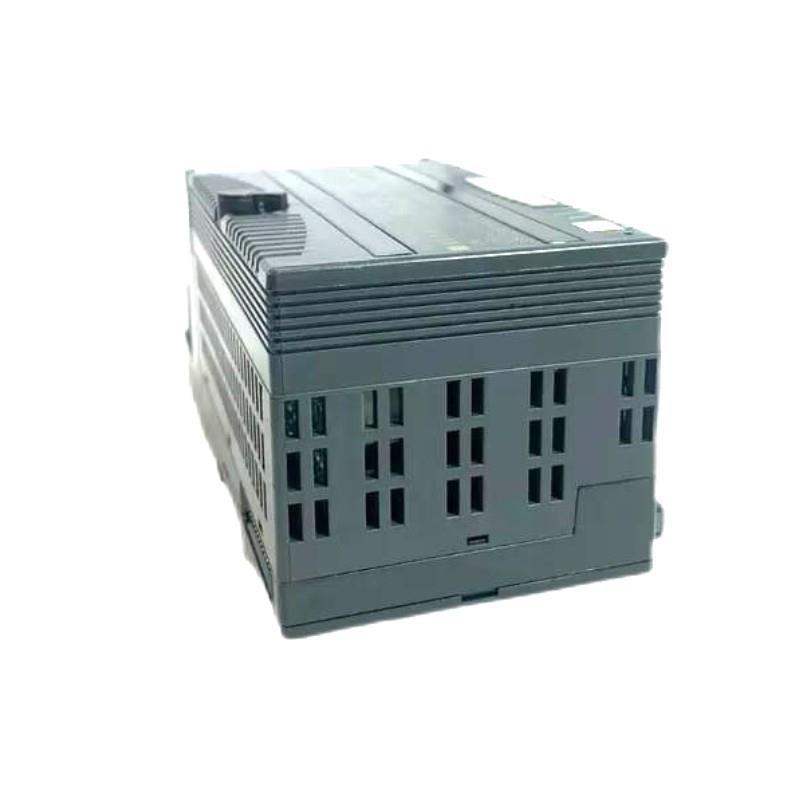

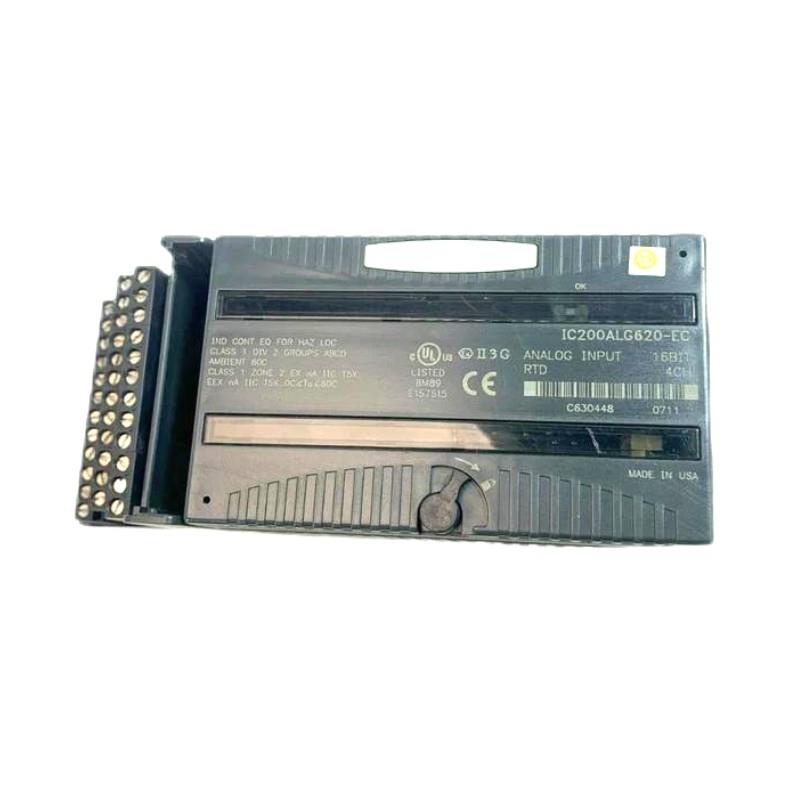

Name: GE IC200ALG620-EC VersaMax Analog Input Module Unbelievable Prices!
Brand: GE Fanuc PLC
SKU: 7220
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC200ALG620-EC VersaMax Analog Input Module Unbelievable Prices!

Brand：GE Fanuc

Item No.：IC200ALG620-EC

Product Type：Analog Input Module

Product Origin：USA

Dimensions：110 x 66.8 x 50 mm

Weight：0.39 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What RTD types are supported by the IC200ALG620 module?
The module supports 25, 100, and 1000 ohm platinum RTDs, 10, 50, and 100 ohm copper RTDs, 100 and 120 ohm nickel RTDs, and 604 ohm nickel/iron RTDs.

What is the operating temperature range of the IC200ALG620 module?
The operating temperature range is 0°C to 60°C.

What is the accuracy of the IC200ALG620 module?
The accuracy is ±0.15% for both resistance measurements and temperature measurements at 25°C.

Can I connect 3-wire and 4-wire RTDs to the module?
Yes, the module supports both 3-wire and 4-wire RTDs.

What is the update rate of the IC200ALG620 module?
The update rate is approximately 210 ms per channel at 60 Hz, and 230 ms per channel at 50 Hz.

What types of alarms are supported by the module?
The module supports high/low alarms, under-range/over-range alarms, open wire alarms, and input short alarms.

Does the IC200ALG620 module require an external power supply?
No, the module does not require an external power supply. It provides the excitation current for the RTDs internally.

What is the maximum lead resistance allowed for the RTDs?
The maximum lead resistance is 50 ohms per lead.
