Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

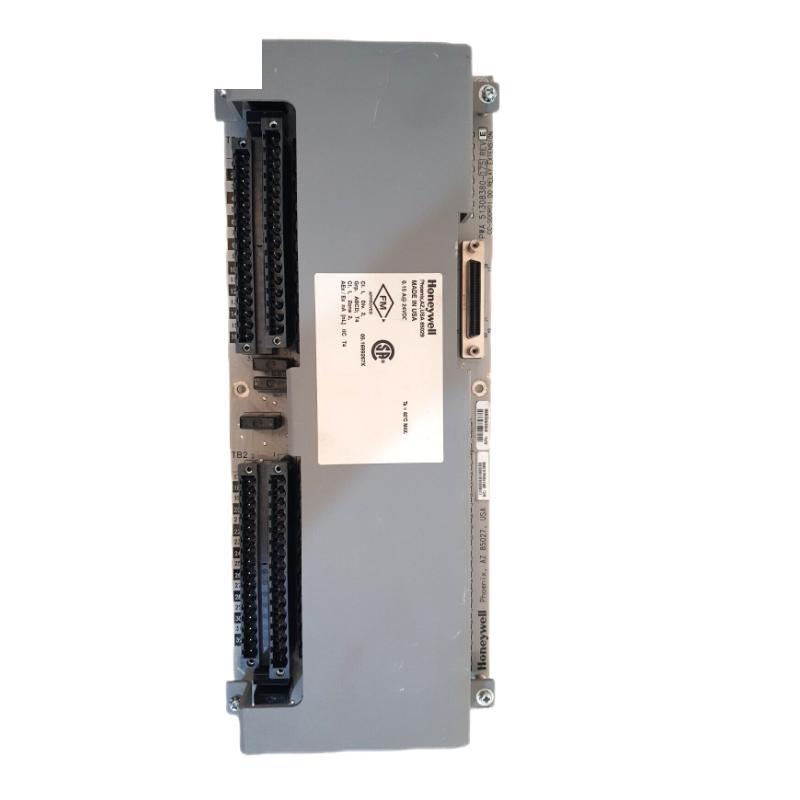

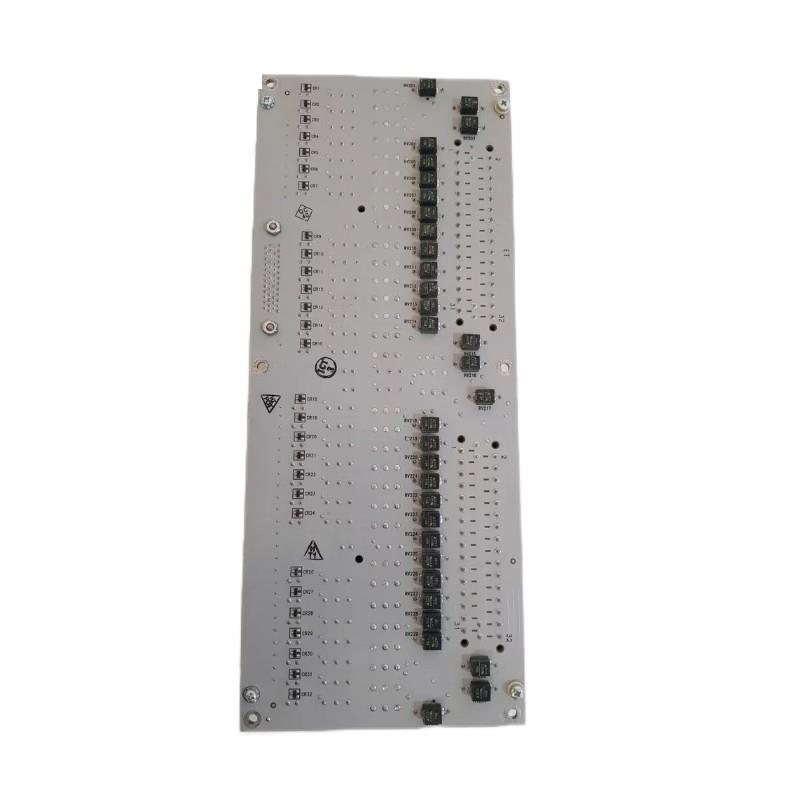

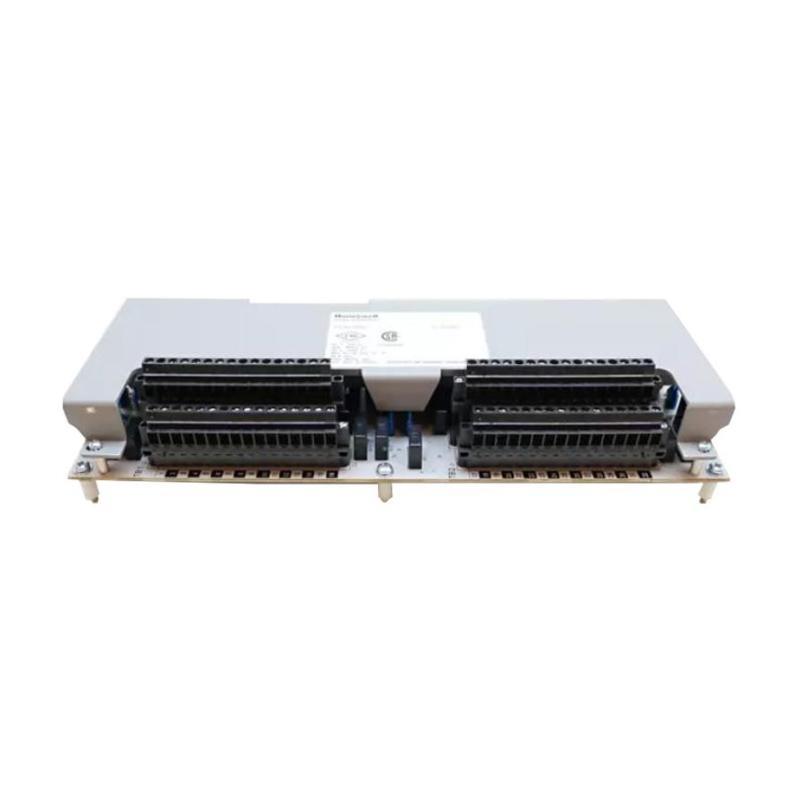

Honeywell CC-SDOR01 51308380-175 Digital Output Relay 30-Day Returns！

Brand：Honeywell

Item No.：CC-SDOR01 51308380-175

Product Type：Digital Output Relay

Product Origin：USA

Dimensions：192 ×140× 45 mm

Weight：0.32 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

Regular models are in stock for a long time, the inventory is stable, welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the Honeywell CC-SDOR01 Digital Output Relay?

The CC-SDOR01 is used to provide a dry contact for isolated low voltage/low current or high voltage/high current discrete output applications, suitable for various control processes in industrial settings.

What is the maximum load voltage that the CC-SDOR01 can handle?

The maximum load voltage for the CC-SDOR01 is 250 VAC (RMS) or 125 VDC.

How many output channels does the CC-SDOR01 relay support?

The CC-SDOR01 relay supports 32 isolated output channels.

What is the contact type of the CC-SDOR01?

The contact type of the CC-SDOR01 is AgSnO2, which is suitable for reliable switching.

Can the CC-SDOR01 support both Form A and Form B contacts?

Yes, the relay supports both Form A (SPST/NO) and Form B (SPST/NC) contacts, and the selection can be made via jumper configuration.

What is the maximum steady state load current for the output of the CC-SDOR01?

The maximum steady state load current per output is 3 A for resistive loads at 125/250 VAC, 3 A for 30 VDC resistive, and 1 A for 48 VDC resistive loads.

Does the CC-SDOR01 provide galvanic isolation?

Yes, the CC-SDOR01 provides galvanic isolation between channels and between channels and the logic common, with a maximum of 1500 VAC RMS or ±1500 VDC.

How long is the contact life of the CC-SDOR01?

The mechanical contact life is 5,000,000 cycles, while the electrical contact life is 50,000 cycles at 6 A.
