Name: Yokogawa AAT141 TC/mV Input Module 12-Month Warranty
Brand: Yokogawa Electric
SKU: 7259
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

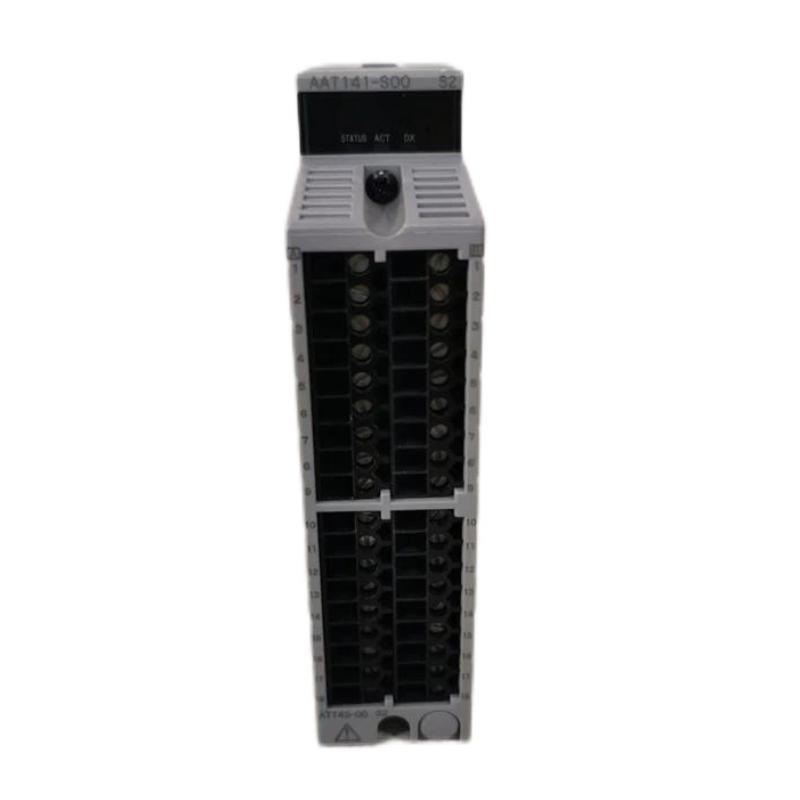

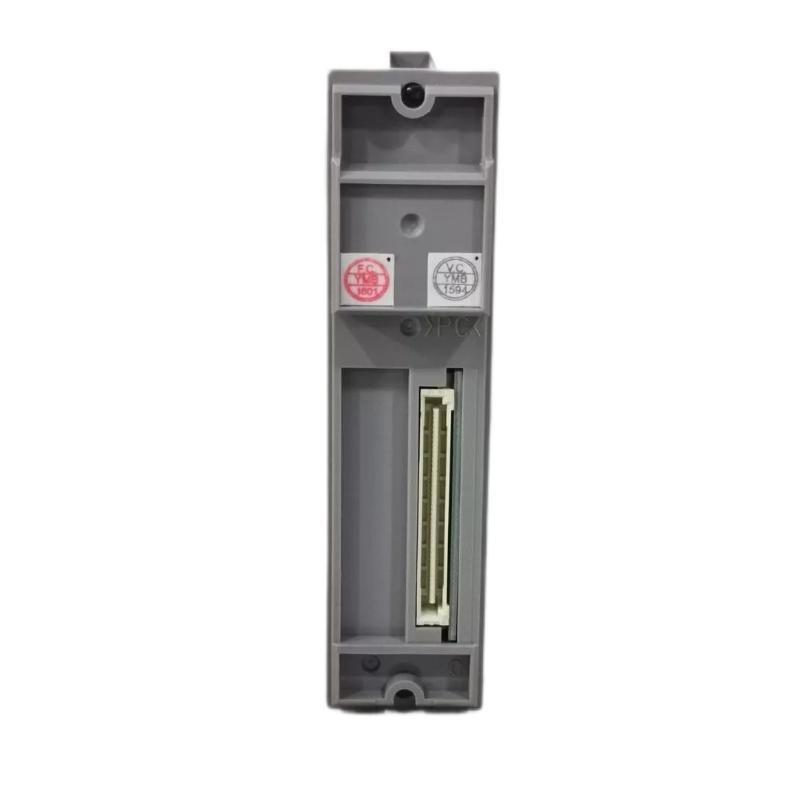

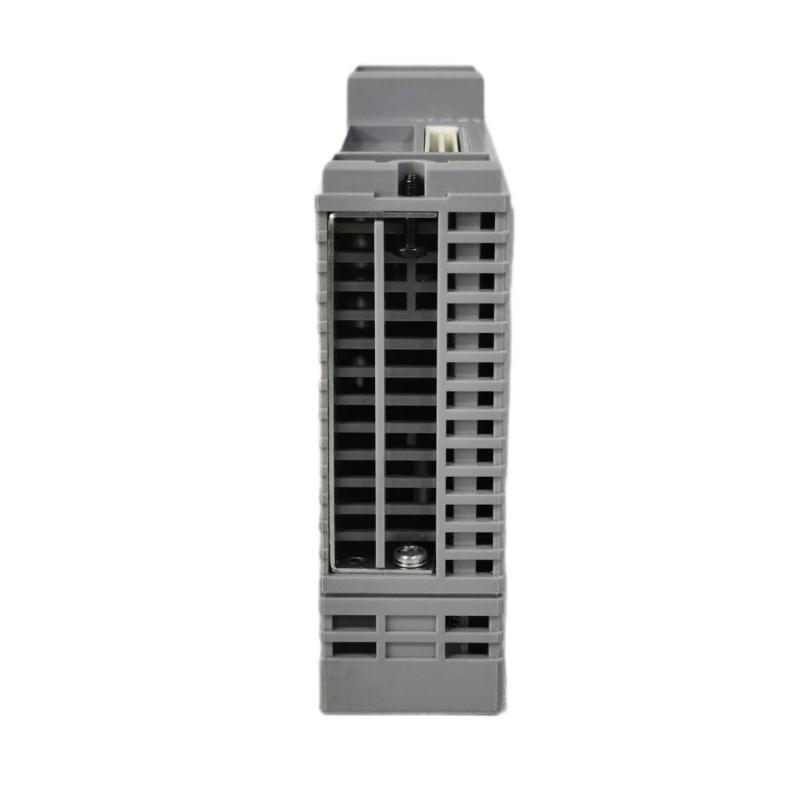

Yokogawa AAT141 TC/mV Input Module 12-Month Warranty

Brand：Yokogawa

Item No.：AAT141

Product Type：TC/mV Input Module

Product Origin：Japan

Dimensions：32.8 × 130 × 107.5 mm

Weight：0.2 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in stock, and the spot is shipped quickly. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ:

What type of input signals can the AAT141 accept?
The AAT141 module accepts input signals from thermocouples (J, K, E, B, R, S, T, N) and millivolt (mV) ranges from -100 to 150 mV or -20 to 80 mV.

How is the input resistance for the AAT141 module specified?
The input resistance is 2 MΩ or larger when powered on, and 2 MΩ or larger when powered off.

What is the accuracy of the AAT141 module for thermocouple and mV inputs?
The accuracy for thermocouple inputs is ±30 µV. For mV inputs, it is ±80 µV for spans between -100 to 150 mV and ±30 µV for spans between -20 to 80 mV.

Can the AAT141 detect burn-out?
Yes, the AAT141 module supports burn-out detection with a detection time of 60 seconds, which can be set as UP or DOWN.

What is the data update period for the AAT141?
The data update period is 1 second for this module.

What is the temperature drift specification for the AAT141 module?
For thermocouple inputs, the temperature drift is ±30 µV/10 °C. For mV inputs, it is ±80 µV/10 °C.

What is the maximum current consumption of the AAT141?
The maximum current consumption is 450 mA at 5 V DC.

What are the dimensions of the AAT141 module?
The dimensions of the AAT141 module are 32.8 × 130 × 107.5 mm.
