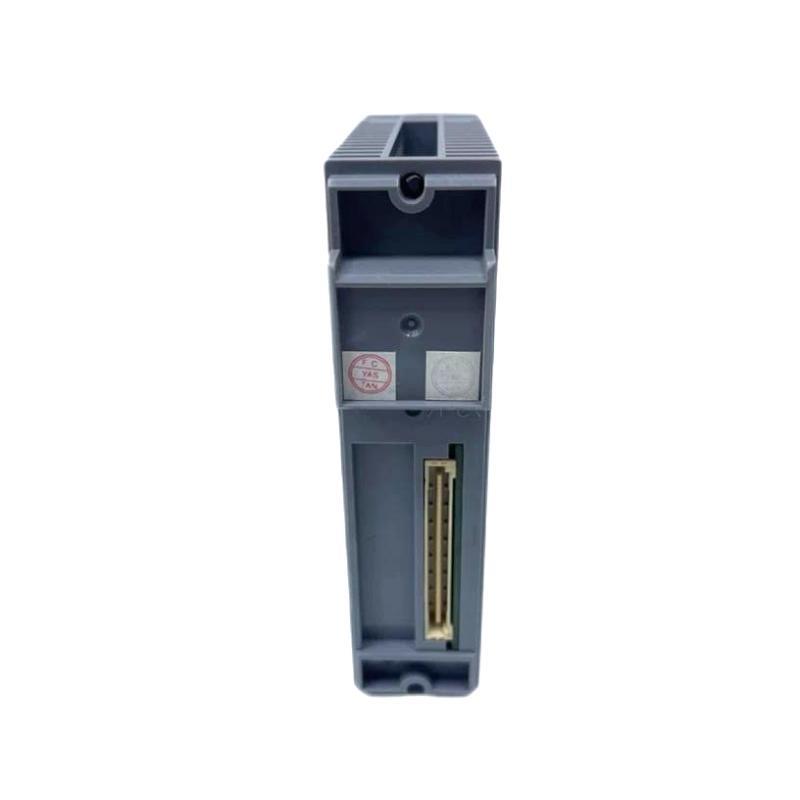

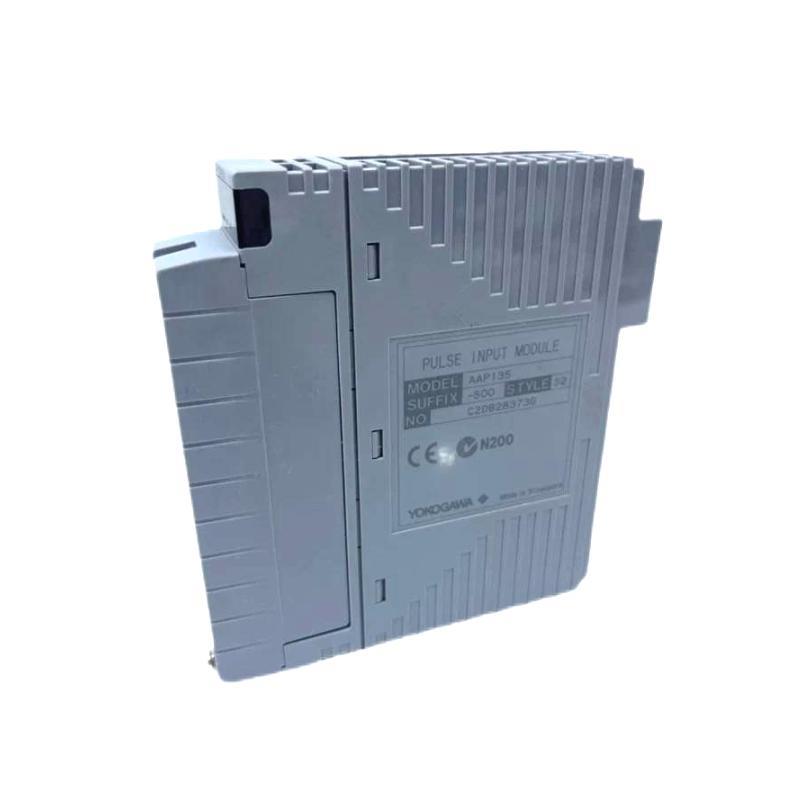

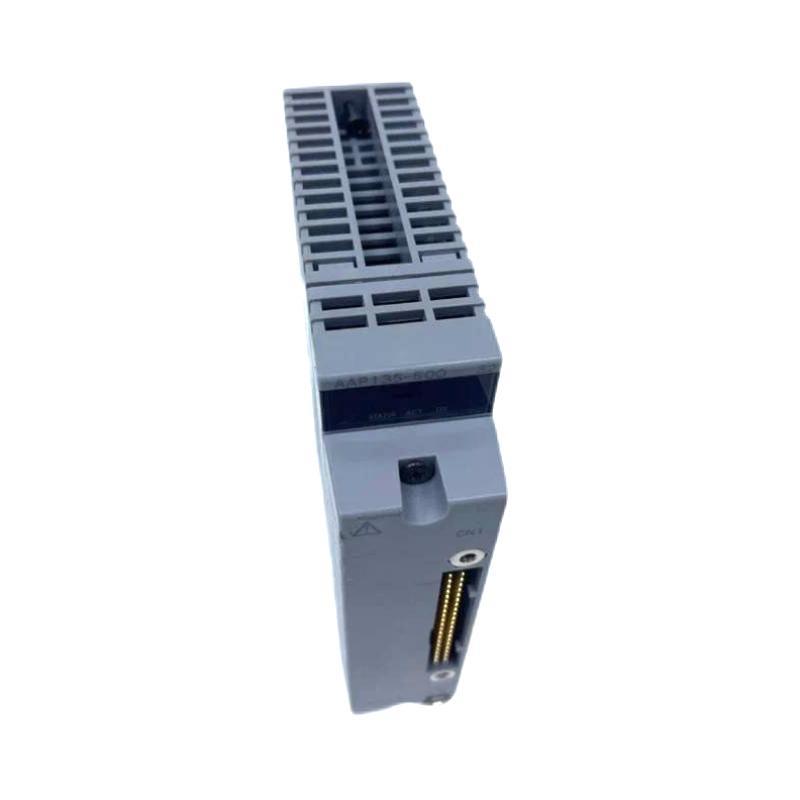

Yokogawa AAP135-S00 S2 Pulse Input Module 12-Month Warranty

0.0
Points

  • 100% Original and Authentic.
  • 100% Brand New, Ready to ship.
  • Support Refund, 7X24h Service.
  • 1-Year Warranty on All Products.
Today's Discount: 90% 00 : 00 : 00
Low stock: 90 left
60%

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa AAP135-S00 S2 Pulse Input Module 12-Month Warranty

Brand:Yokogawa

Item No.:AAP135-S00 S2

Product Type:Pulse Input Module

Product Origin:Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.3 kg

Payment:T/T, Western Union, Credit Card

Shipping Port:Xiamen, China

Lead Time:1-3 Days

Condition:Brand New And Original

Warranty:1 Year

The import process is standardized, testing is supported, and after-sales service is guaranteed

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Company Information

E-mail: [email protected]

Mobile:+8613043043316

Whatsapp:+8613043043316

Add: Alishan Building, 2 Lvling Rd, Siming District, Xiamen, Fujian, China, 361006

Our services

We are specialized in providing industrial automation parts with a one-year warranty. Our industrial automation parts are sold all over the world

We can provide equipment and spare parts from different countries and manufacturers, solve your worries or quality problems in many places, and have a great price advantage.

Welcome to call for more product details.

The inventory of the product is stable, the delivery response is fast, the unit price is reasonable, and large orders are supported for negotiation discounts.

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What input signal types does the AAP135 support?
It supports contact ON/OFF, voltage pulse, and current pulse for 2-wire connections, and voltage pulse for 3-wire connections.

What is the maximum frequency of input pulses?
The maximum frequency is 10 kHz for general input and 800 Hz for non-voltage contact inputs between terminals B and C.

Can the module supply power to field transmitters?
Yes, selectable 12 V DC (40 mA max) or 24 V DC (30 mA max) power supply is available.

Is channel-to-channel isolation provided?
Yes, each input channel is isolated from others and from the system by 500 V AC.

How is contact input defined in terms of resistance?
Contact is open if resistance ≥100 kΩ and closed if ≤200 Ω.

Can I use this module in a redundant configuration?
Yes, the AAP135 supports dual-redundant configurations with appropriate settings.

What is the purpose of the shunt resistance setting?
It allows tuning input impedance to match field device characteristics; selectable as none, 200 Ω, 500 Ω, or 1000 Ω.

What type of filter is included for contact bounce?
A configurable filter is available to eliminate chattering for mechanical relay-type dry contacts.
