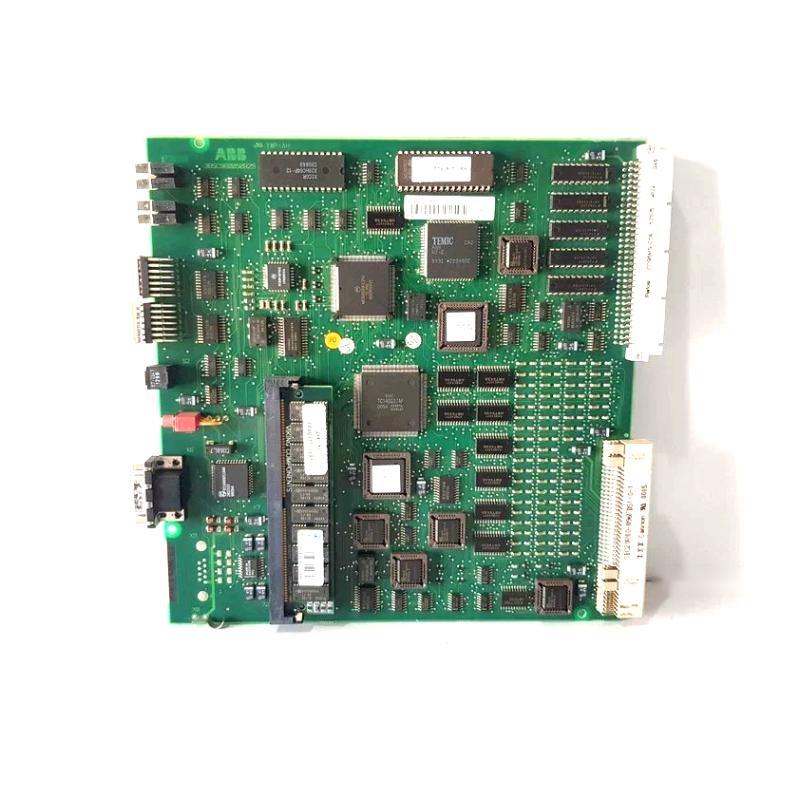

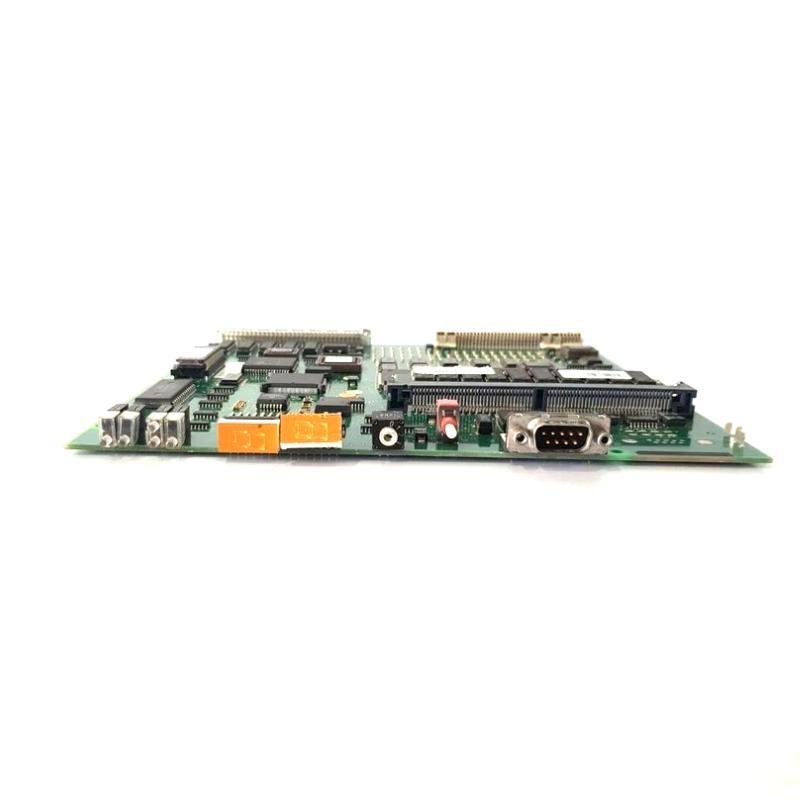

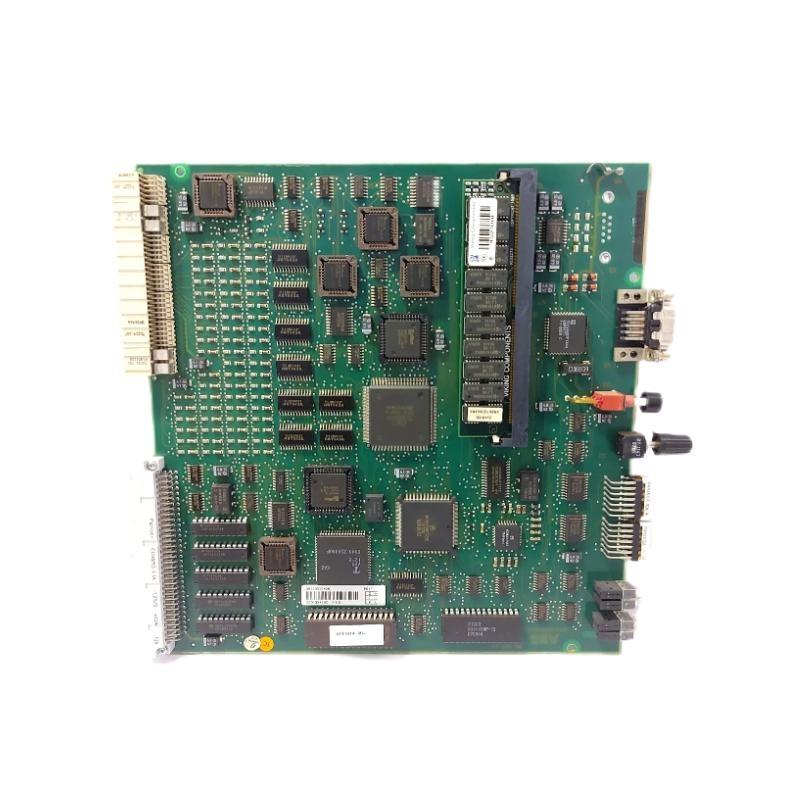

ABB PM151 3BSE003642R1 Analog Input Module Unbelievable Prices!

Frequently Asked Questions (FAQ)

What is the main function of the ABB PM151 module?
The PM151 module converts analog field signals—such as voltage, current, or resistance—into digital values for processing by the AC800F controller.

How many analog signals can the PM151 handle at once?
The module supports either 8 or 16 isolated input channels, allowing connection to multiple analog sensors simultaneously.

What types of analog inputs does the PM151 support?
It supports various analog signal types, including single-ended or differential voltage, current (e.g., 4–20 mA), and resistance inputs.

Can I use more than one PM151 module in the same AC800F system?
Yes, the system allows multiple PM151 modules to be added to increase analog input capacity.

What is the communication protocol used by the PM151 module?
The PM151 communicates with the AC800F base unit via the high-speed S800 I/O bus.

Does the PM151 include diagnostic capabilities?
Yes, the module includes built-in diagnostic tools to monitor input status and detect signal or communication faults.

What resolution does the PM151 offer for analog-to-digital conversion?
It typically offers 12-bit or 16-bit resolution, ensuring precise signal conversion for control processes.

What are the module’s dimensions and weight for installation planning?
The PM151 measures 24 × 125 × 120 mm and weighs approximately 0.35 kg.
