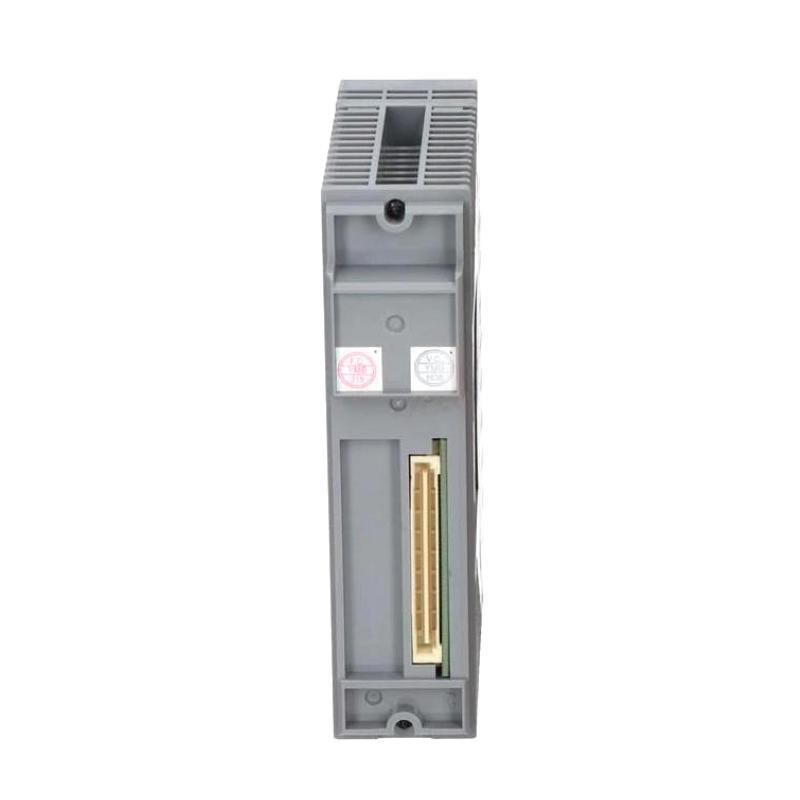

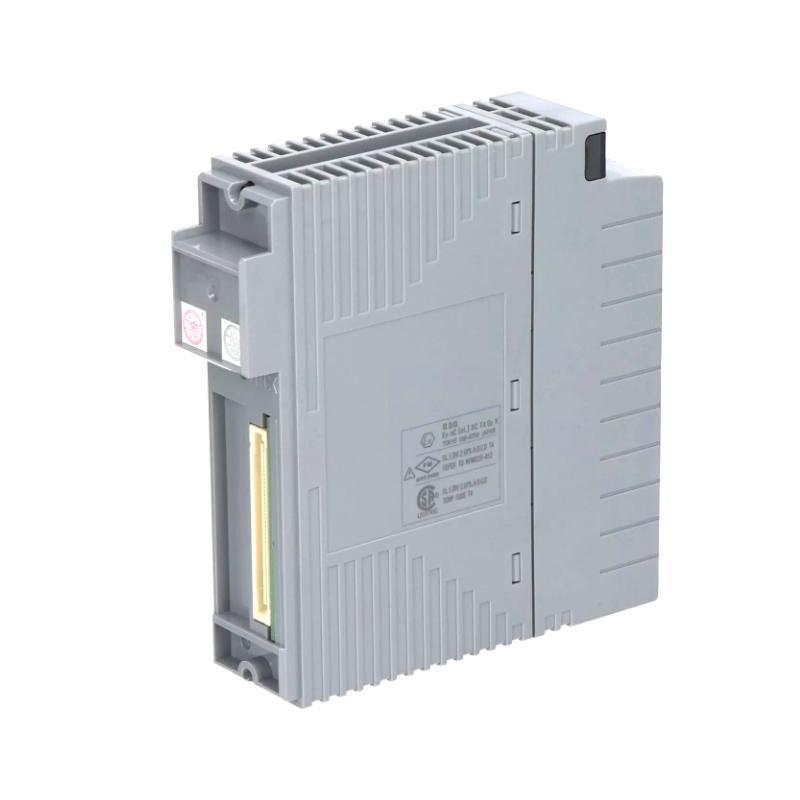

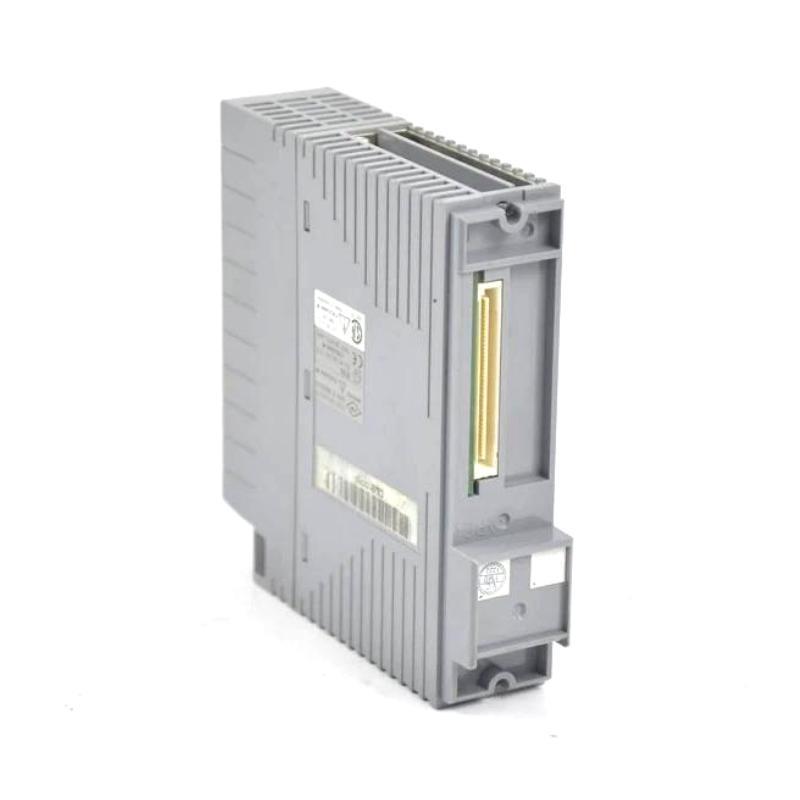

Yokogawa AAT145-S00 TC/mV Input Module Unbelievable Prices!

FAQ

What types of input signals can the AAT145-S00 module handle?
The module can handle thermocouple (TC) signals such as J, K, E, B, R, S, T, N types, as well as mV signals ranging from -100 to 150 mV and -20 to 80 mV.

What is the maximum allowable input voltage for this module?
The maximum allowable input voltage is ±5 V.

How accurate is the AAT145-S00 in reading input signals?
The module’s accuracy for TC signals is ±40 µV, for mV signals, it is ±80 µV for spans between -100 to 150 mV and ±30 µV for spans between -20 to 80 mV. For RTD inputs, the accuracy is ±150 mΩ.

What is the weight of the module?
The module weighs 0.3 kg.

How does the module handle temperature drift?
The module experiences a temperature drift of ±80 µV/10°C for -100 to 150 mV input, ±30 µV/10°C for TC signals between -20 to 80 mV, and ±120 mΩ/10°C for RTD input.

Can I use this module in dual-redundant configurations?
Yes, the AAT145-S00 TC/mV Input Module can be used in dual-redundant configurations.

What is the maximum current consumption of the AAT145-S00?
The maximum current consumption is 450 mA when powered by 5 V DC.

How long does it take for the module to update the data?
The data update period is 1 second.
