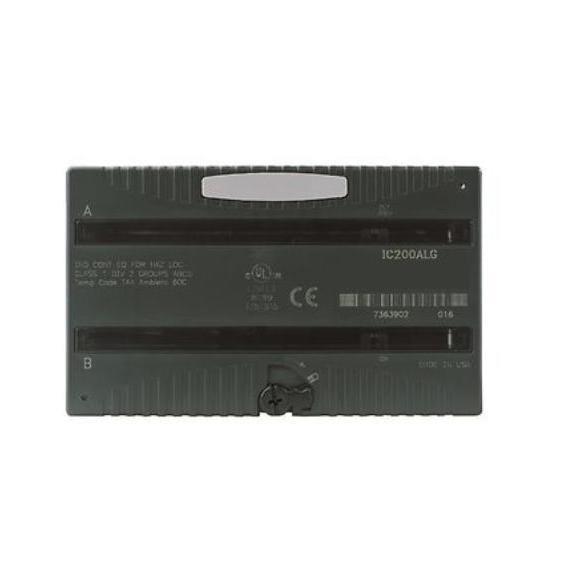

Name: GE IC200ALG432B VersaMax Analog Mixed Module New In Stock
Brand: GE Fanuc PLC
SKU: 7287
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC200ALG432B VersaMax Analog Mixed Module New In Stock

Brand：GE Fanuc

Item No.：IC200ALG432B

Product Type：Analog Mixed Module

Product Origin：USA

Dimensions：110 x 66.8 x 50 mm

Weight：0.159 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the input voltage range supported by the IC200ALG432B?
The module supports analog input voltage in the range of -10V to +10V DC.

What is the resolution of the analog signals?
The module provides a resolution of 12 bits, with a voltage resolution of 2.5 mV = 8 counts for inputs and 5 mV = 16 counts for outputs.

How many channels does the module provide?
It has 4 differential analog input channels and 2 single-ended analog output channels.

What is the required power supply for the outputs?
An external power supply of +18 to +30 VDC is required to power the output channels.

Can the outputs be configured to hold the last value if communication is lost?
Yes, the output behavior is configurable via a jumper. It can either hold the last value or default to 0V.

What isolation is provided between user input and logic circuitry?
The isolation rating is 250 VAC continuous, and 1500 VAC for 1 minute between user input and logic/frame ground.

How is the field power status indicated?
A green LED labeled “FLD PWR” indicates the presence of field-side power.

What are the dimensions and weight of the IC200ALG432B module?
The module dimensions are 110 mm x 66.8 mm x 50 mm, and it weighs 0.159 kg.
