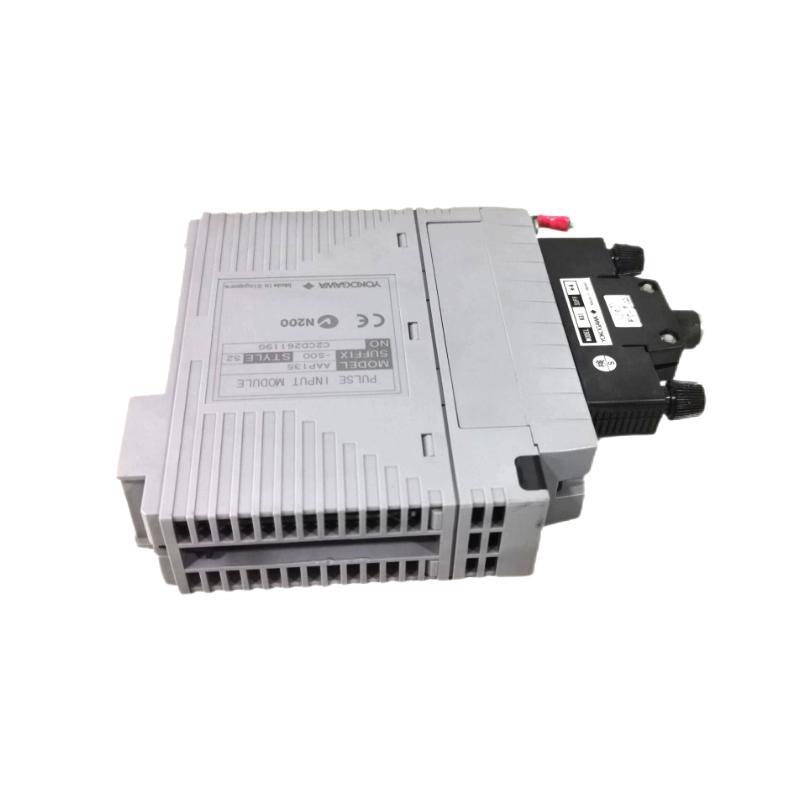

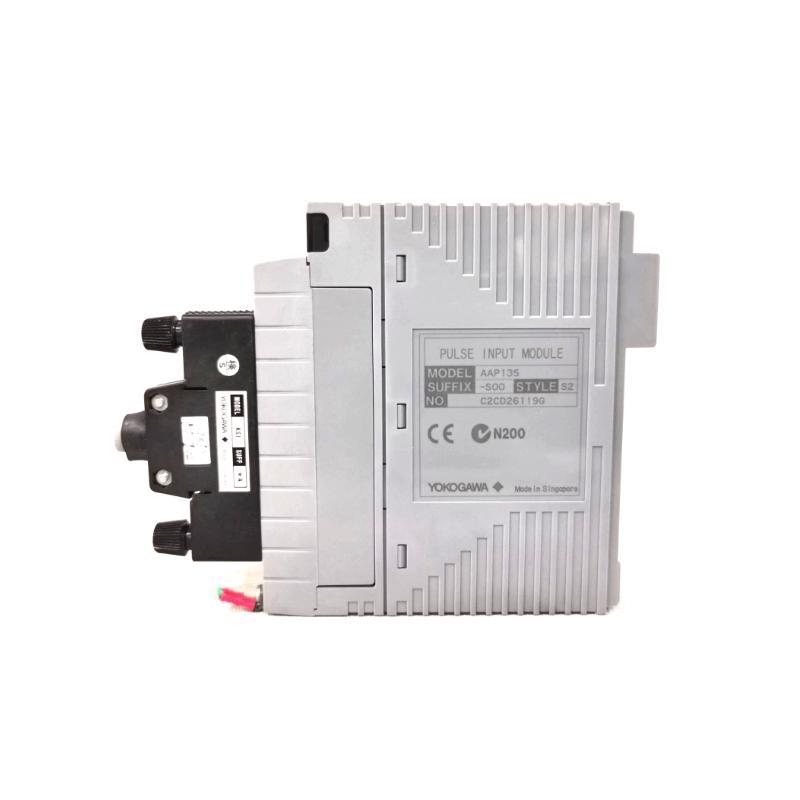

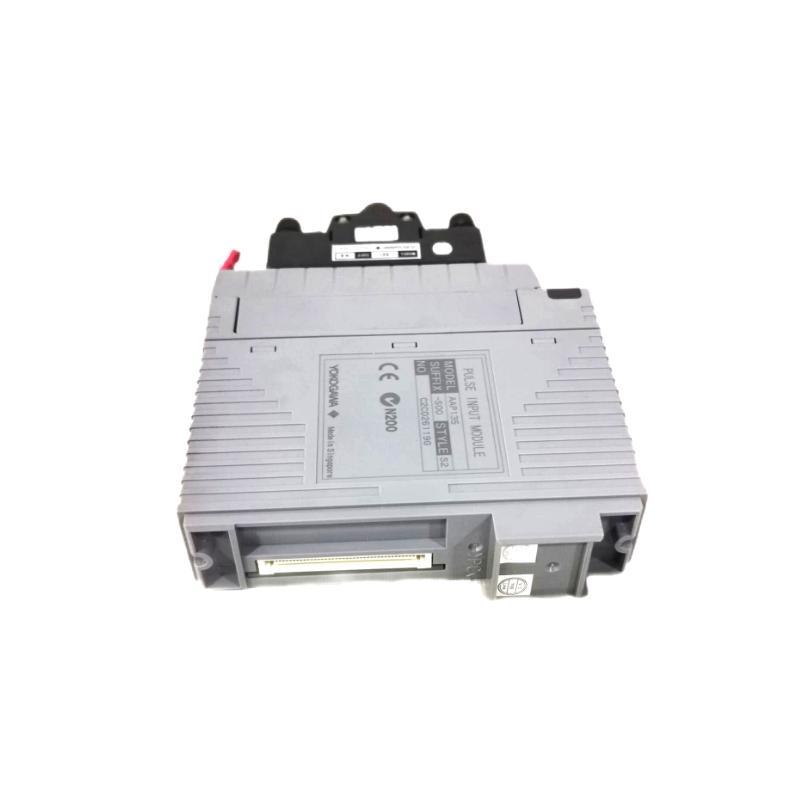

Yokogawa AAP135-s50 Pulse Input Module Original

Yokogawa AAP135-s50 Pulse Input Module Original

Name: Yokogawa AAP135-s50 Pulse Input Module Original
Brand: Yokogawa Electric
SKU: 7291
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 67 left

45%

Add to cart

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa AAP135-s50 Pulse Input Module Original

Brand：Yokogawa

Item No.：AAP135-s50

Product Type：Pulse Input Module

Product Origin：Japan

Dimensions：107.5 × 32.8 × 130 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Sufficient inventory of tens of thousands of models, fast delivery of spot goods, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What types of signals does the AAP135-S50 accept?
It accepts contact ON/OFF signals, voltage pulses, and current pulses for 2-wire types, and voltage pulse for 3-wire types.

Is the AAP135-S50 suitable for high-frequency pulse inputs?
Yes, it supports pulse frequencies up to 10 kHz, making it suitable for high-speed applications.

What is the minimum input pulse width the module can detect?
The minimum detectable input pulse width is 40 microseconds.

How is electrical isolation ensured in the AAP135-S50?
Isolation is provided both between the input and the system and between channels, rated at 500 V AC for 1 minute.

Does the AAP135-S50 support transmitter power supply?
Yes, it offers a selectable transmitter power supply of 12 V DC or 24 V DC with current limits.

Can I use this module in a dual-redundant configuration?
Yes, the AAP135-S50 is designed for dual-redundant setups with appropriate standby handling.

What kind of filtering options are available?
A chatter elimination filter can be configured, particularly useful for dry contact signals up to 10 Hz.

What are the dimensions and weight of the module?
The module measures 107.5 mm × 32.8 mm × 130 mm and weighs 0.3 kg.
