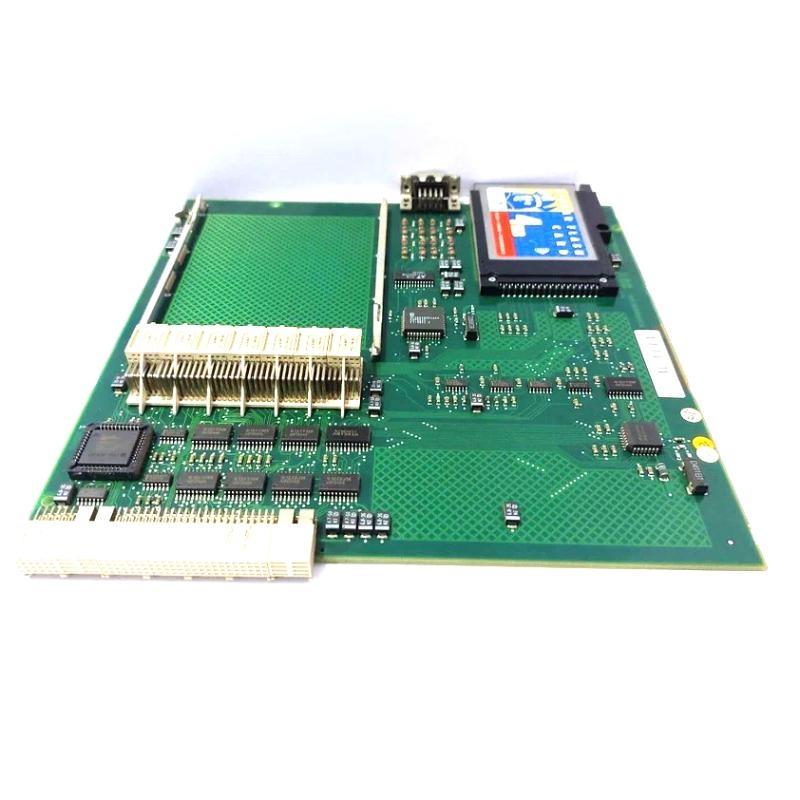

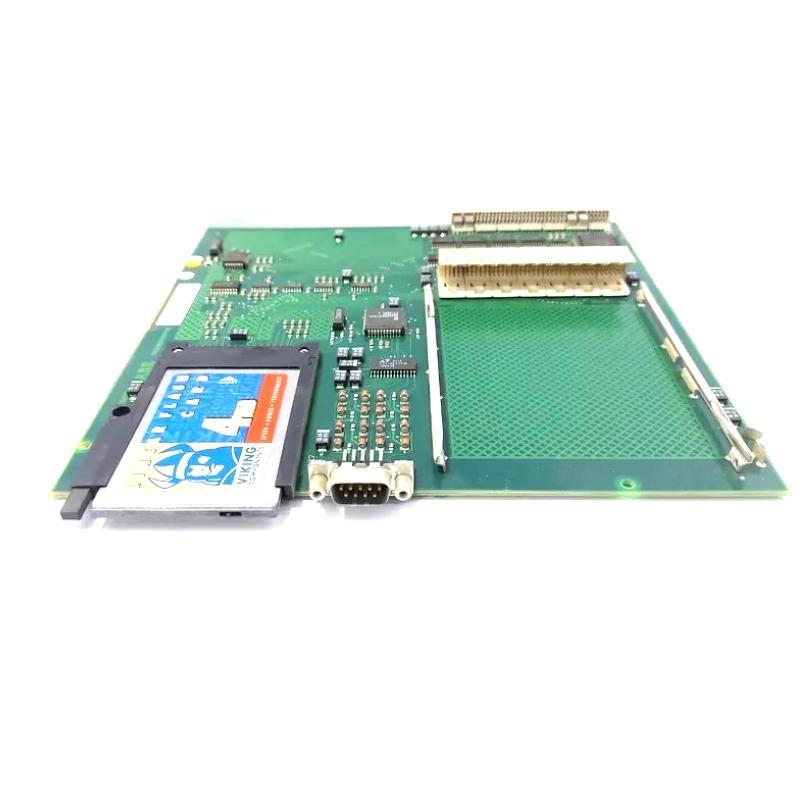

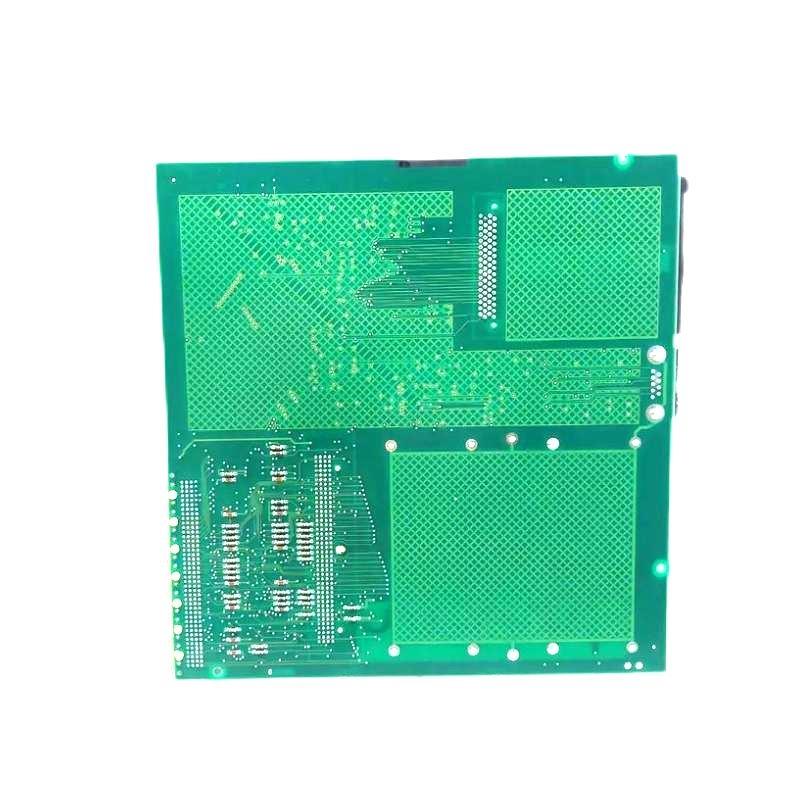

ABB PM152 3BSE003643R1 Analog Output Module 100% New

Frequently Asked Questions (FAQ)

What is the primary function of the PM152 module?
The PM152 converts digital signals from the AC800F controller into analog signals to drive field devices such as actuators or control valves.

How many analog outputs does the PM152 support?
The module typically offers either 8 or 16 isolated analog output channels depending on the configuration.

What types of analog output signals are supported?
It supports both voltage outputs (single-ended or differential) and current outputs for flexible field application.

What resolution does the PM152 module offer?
The module delivers high-resolution outputs, available in either 12-bit or 16-bit formats, ensuring accurate analog signal generation.

Is the PM152 module hot-swappable?
No, the PM152 is not hot-swappable. Power should be turned off during installation or replacement.

Can multiple PM152 modules be used in a single AC800F system?
Yes, the system allows scalable configuration, and multiple PM152 modules can be added to increase analog output capacity.

How does the PM152 module communicate with the AC800F controller?
Communication occurs through the S800 I/O bus, ensuring efficient and synchronized data exchange with the base unit.

Are there built-in diagnostics in the PM152?
Yes, the module includes diagnostic capabilities to monitor status, signal errors, and communication integrity for maintenance and troubleshooting purposes.
