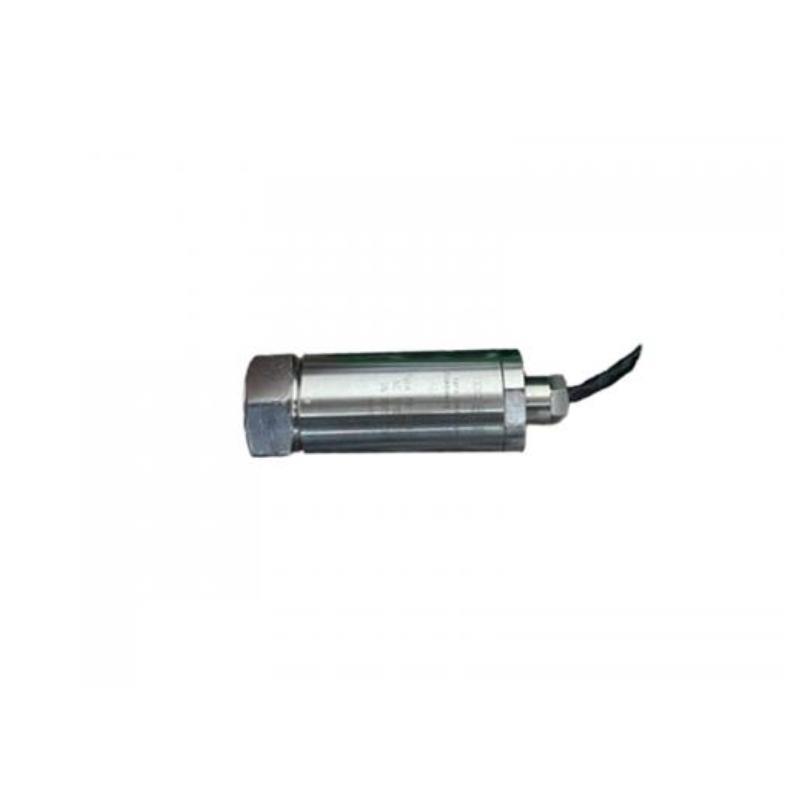

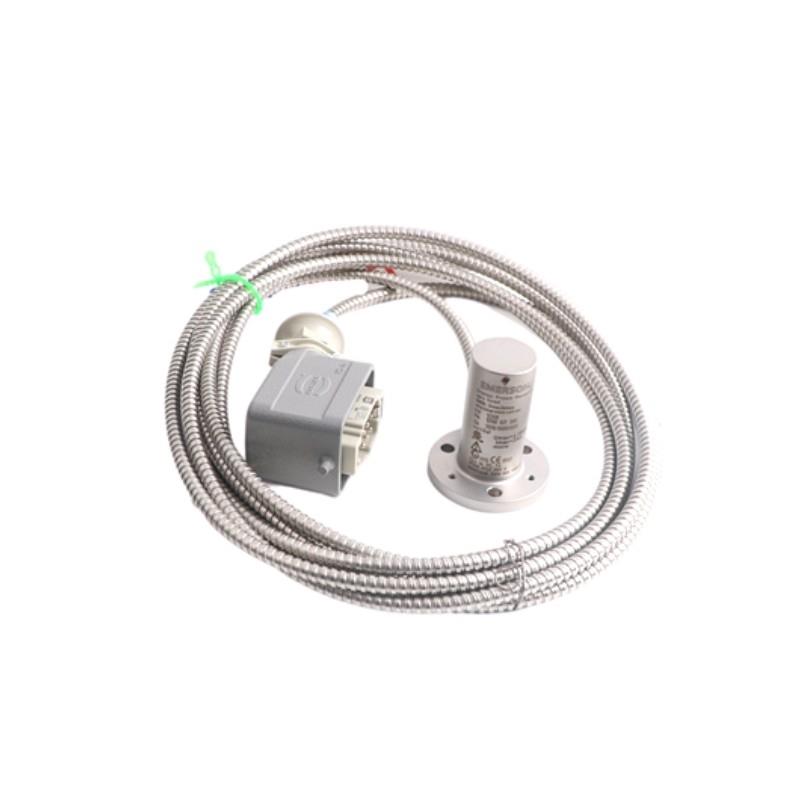

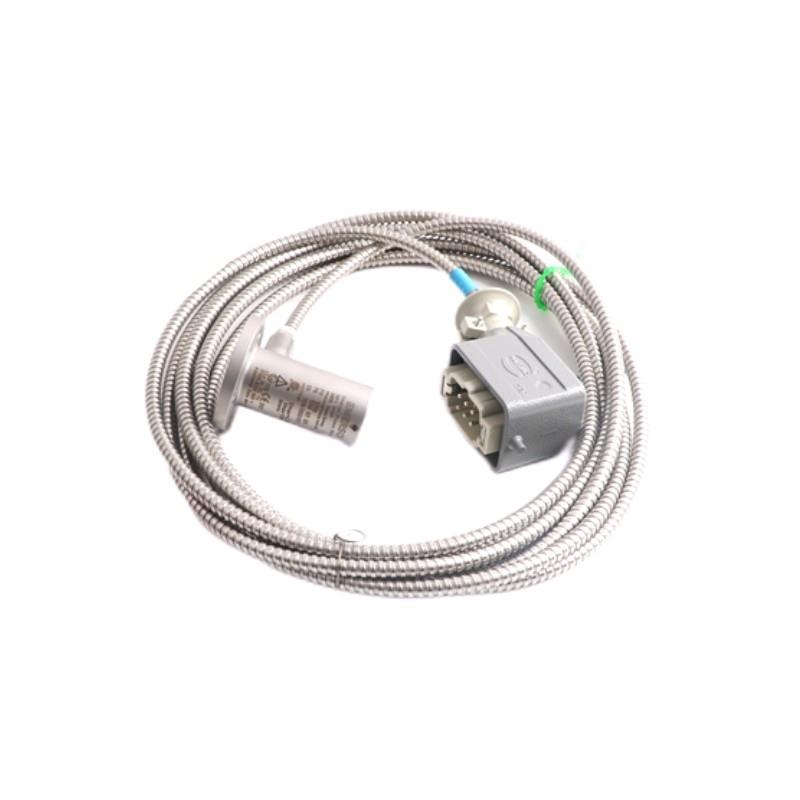

Epro PR9268/200-000 Machinery Health Sensor New In Stock

Frequently Asked Questions (FAQ)

What is the primary function of the PR9268/200-000 sensor?
It is designed to measure absolute vibration velocity in vertical direction for condition monitoring of rotating machinery.

Can this sensor be used in hazardous environments?
Yes, this model is certified for use in hazardous areas when installed with proper safety barriers and compliant to EN IEC 60079-14.

What are the allowable mounting angles without lifting or sinking current?
Vertical models like the 20x series allow ±30° deviation without current compensation; up to ±60° with sinking current applied.

What electrical load is recommended for optimal operation?
A load of 100 kΩ is recommended to achieve specified sensitivity and frequency response.

How should the sensor be mounted for accurate measurements?
It should be mounted on a clean, flat, vibration-free surface using the provided mounting holes and torque settings.

What type of output signal does the sensor generate?
The sensor generates a dynamic analog voltage signal proportional to vibration velocity in mV/(mm/s).

What cable configurations are supported?
The sensor is available with armored or non-armored cables ranging from 3 to 10 meters, with Harting plug or open cable end.

Is periodic maintenance required for this sensor?
No periodic maintenance is needed under normal conditions. Diagnostic checks can be performed via resistance and insulation tests.
