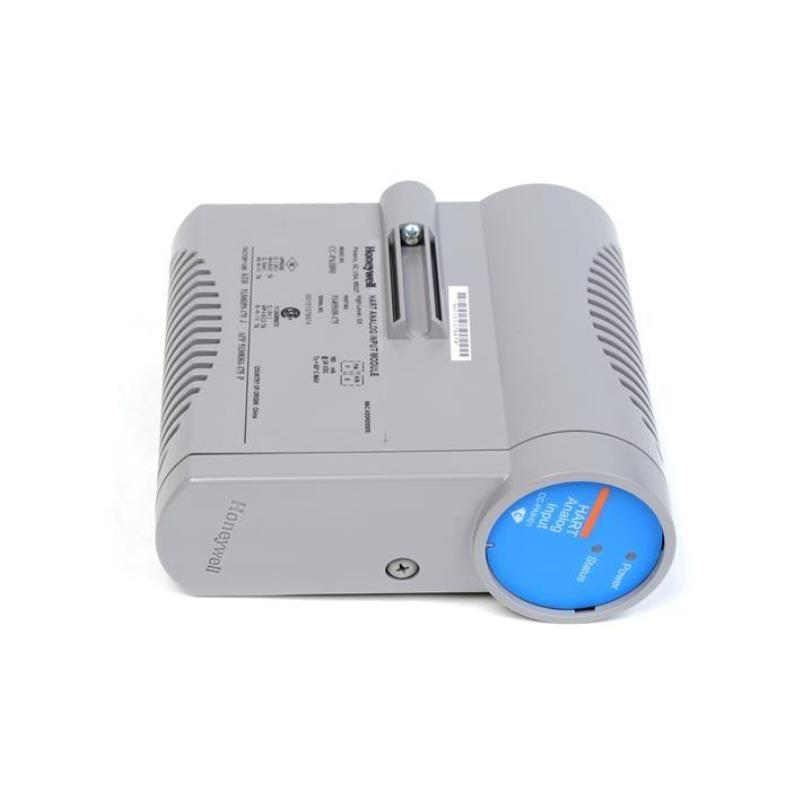

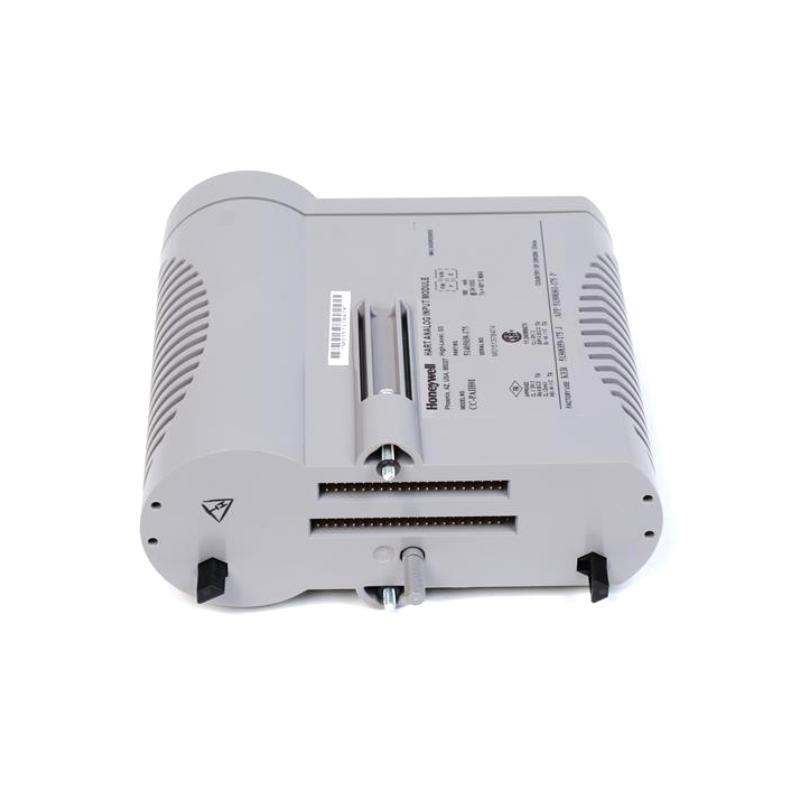

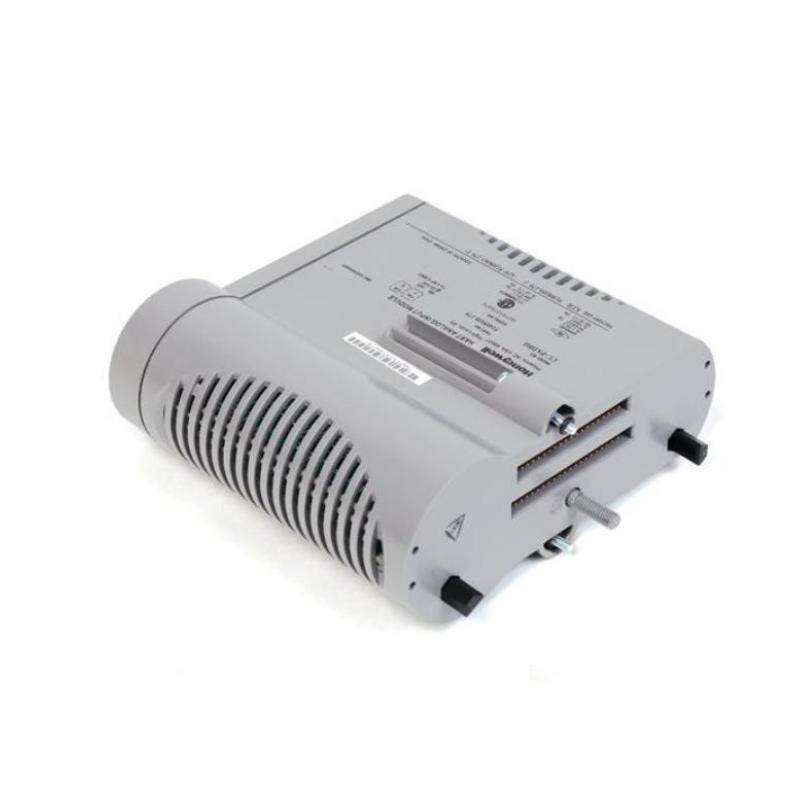

Honeywell CC-PAIH01 51405038-175 Series-C High Level Analog Input Module Unbelievable Prices!

Frequently Asked Questions (FAQ)

What types of input signals are supported by the CC-PAIH01 module?
The module supports both voltage and current inputs, including 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA signals.

How many input channels are available on the CC-PAIH01?
It offers 16 input channels—12 are single-ended, and 4 are differential.

Is the CC-PAIH01 compatible with HART devices?
Yes, the module fully supports HART communication and can work with multivariable HART instruments.

What is the resolution of the analog-to-digital converter in the CC-PAIH01?
The module uses a 16-bit A/D converter for precise analog input measurement.

Does the module provide diagnostics for open wire conditions?
Yes, the CC-PAIH01 includes open wire detection with diagnostic indication of bad PV values.

What is the input scan rate of the CC-PAIH01?
The module performs a scan every 50 milliseconds.

Can this module operate in hazardous environments?
Yes, it includes current-limiting circuits for Class 1, Division 2 non-incendive interfacing, requiring no fuses.

What is the common mode rejection capability of the CC-PAIH01?
It offers 70 dB common mode rejection from DC to 60 Hz, ensuring stable and accurate readings even in noisy environments.
