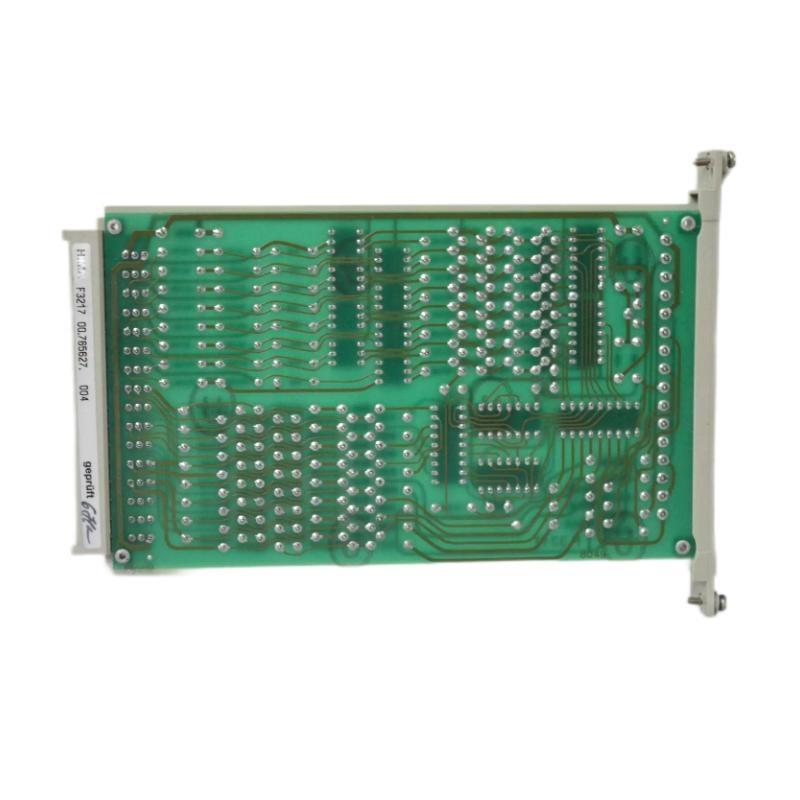

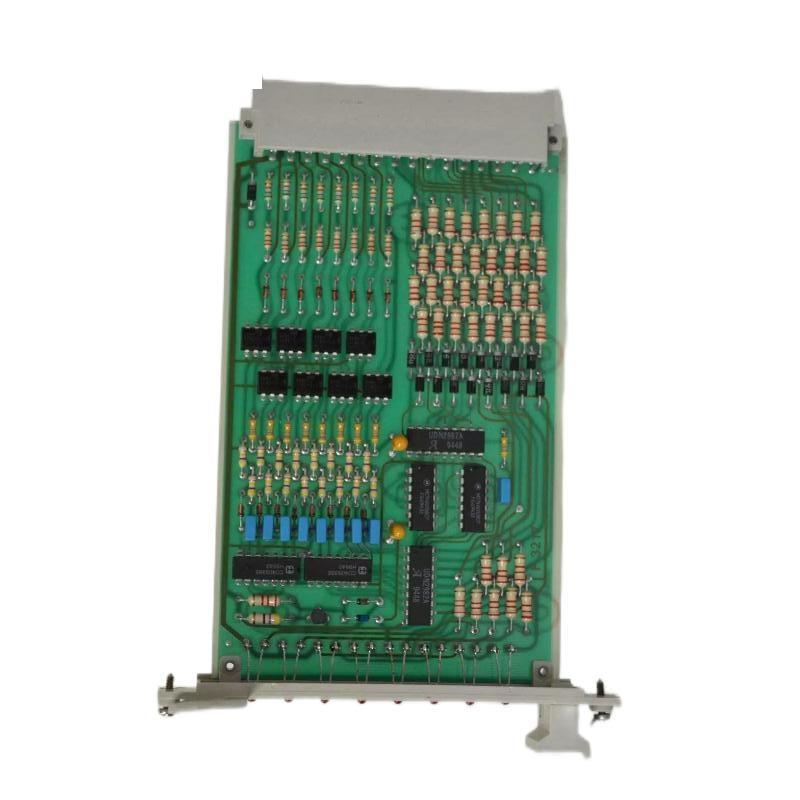

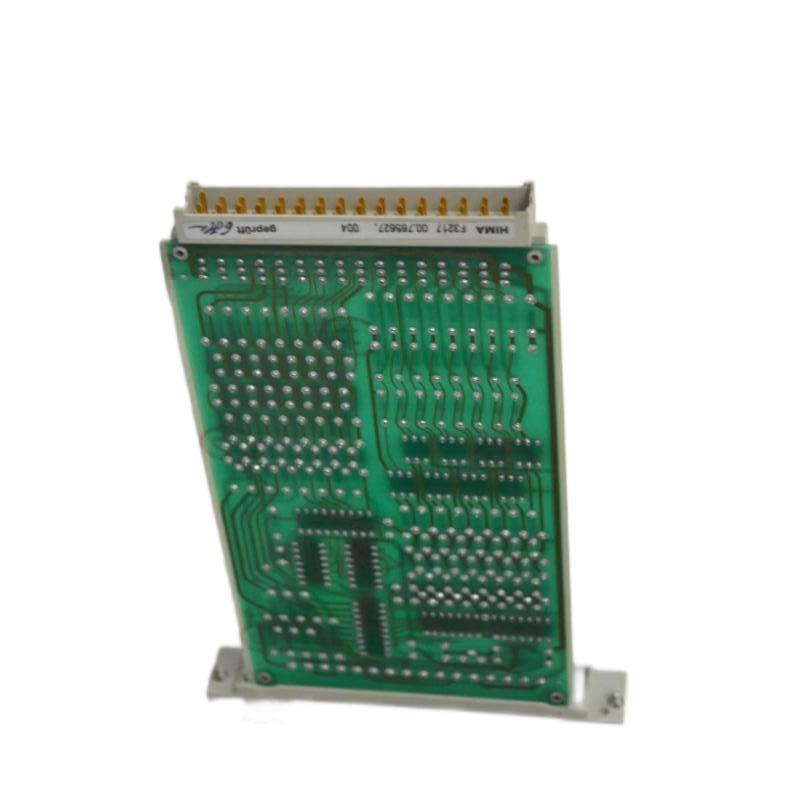

HIMA F3217 Planar F System 8-Channel Safety-Related Input Module Original

Frequently Asked Questions (FAQ)

What type of input signals does the F3217 module support?
The F3217 module supports 24 V DC digital input signals.

Are the channels on the F3217 module electrically isolated?
Yes, each of the 8 input channels is galvanically isolated from each other and from the system.

What safety features are integrated into the F3217 input module?
The module includes safety-related input acquisition, wire break detection, and short-circuit monitoring per channel.

Can this module be used in environments with wide temperature variations?
Yes, it operates reliably within a temperature range of -20°C to +60°C and can be stored at -40°C to +85°C.

What is the typical input current for each channel at 24 V?
The typical input current is approximately 3 mA at 24 V.

How fast does the F3217 module respond to input signals?
The module has a response time of less than 10 milliseconds.

Is this module compatible with redundant safety architectures?
Yes, it is designed for use in safety-critical applications and supports implementation in redundant configurations.

What type of mounting does the module require?
The F3217 module is designed for DIN rail mounting.
