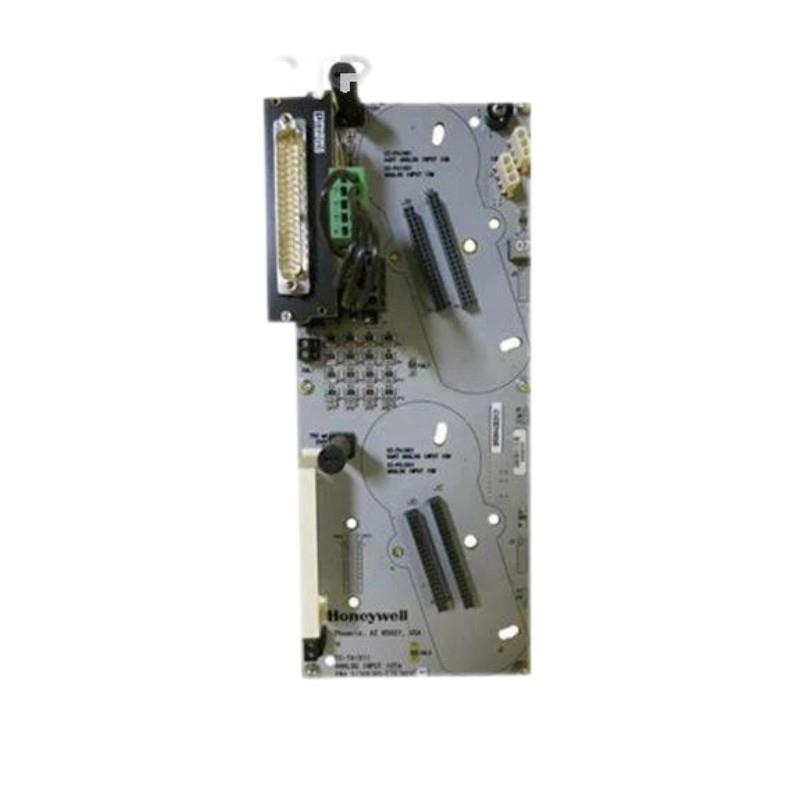

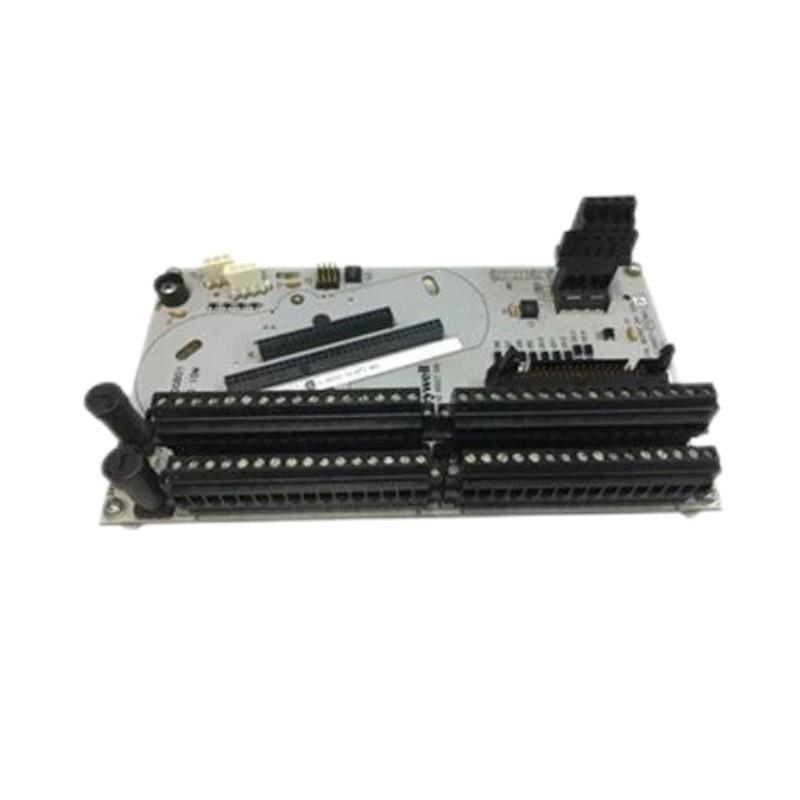

Honeywell CC-GAIX11 Series-C Analog Input GI/IS IOTA Original

Frequently Asked Questions (FAQ)

What type of signals does the CC-GAIX11 support?
The CC-GAIX11 supports high-level analog current and voltage signals, compatible with 4-20 mA loops or standard voltage ranges such as 0–5 V and 1–5 V.

Can the CC-GAIX11 be used in redundant configurations?
Yes, the CC-GAIX11 supports redundant configurations when used with compatible IOMs like CC-PAIH02 or CC-PAIX02 and the corresponding redundant IOTA setup.

How many input channels are available on the CC-GAIX11?
The IOTA provides 16 input channels, of which 12 are single-ended and 4 are differential.

What is the input scan rate for the CC-GAIX11 system?
The input scan rate is 50 milliseconds, allowing timely processing of input signal data.

Is the CC-GAIX11 suitable for use in hazardous environments?
Yes, it provides non-incendive field power conditioning compliant with Class 1, Division 2 hazardous area requirements.

What accuracy can be expected from this analog input module?
The module achieves ±0.075% of full scale accuracy at room temperature and ±0.15% across the full operational temperature range.

Does the CC-GAIX11 require external power fusing?
No, it includes internal individual current-limiting protection, eliminating the need for external fuses.

What kind of field power protection is implemented?
The CC-GAIX11 uses individually protected circuits for transmitter field power, ensuring safety and reliability in industrial environments.
