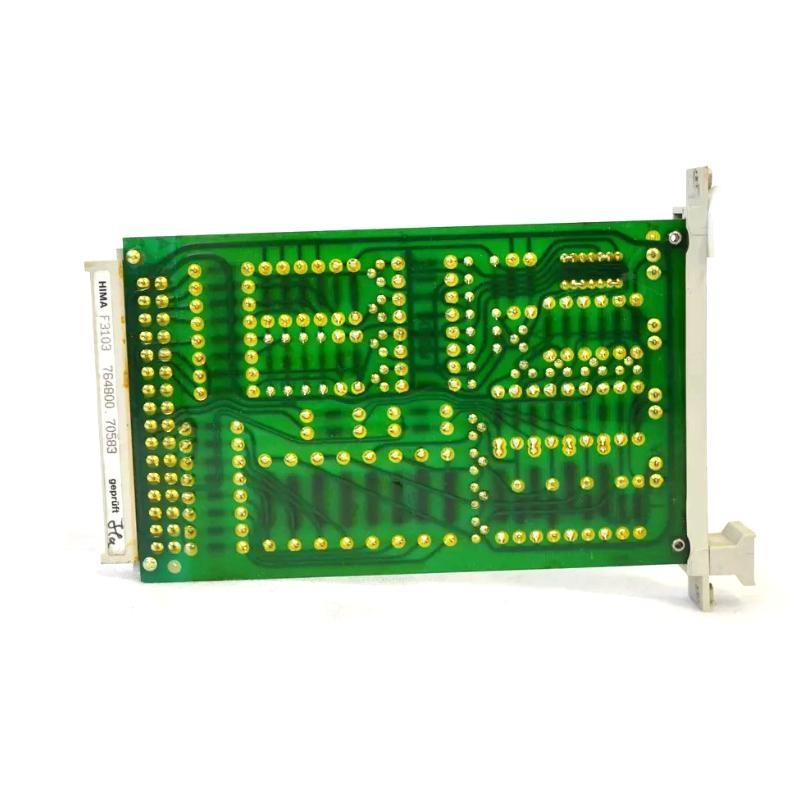

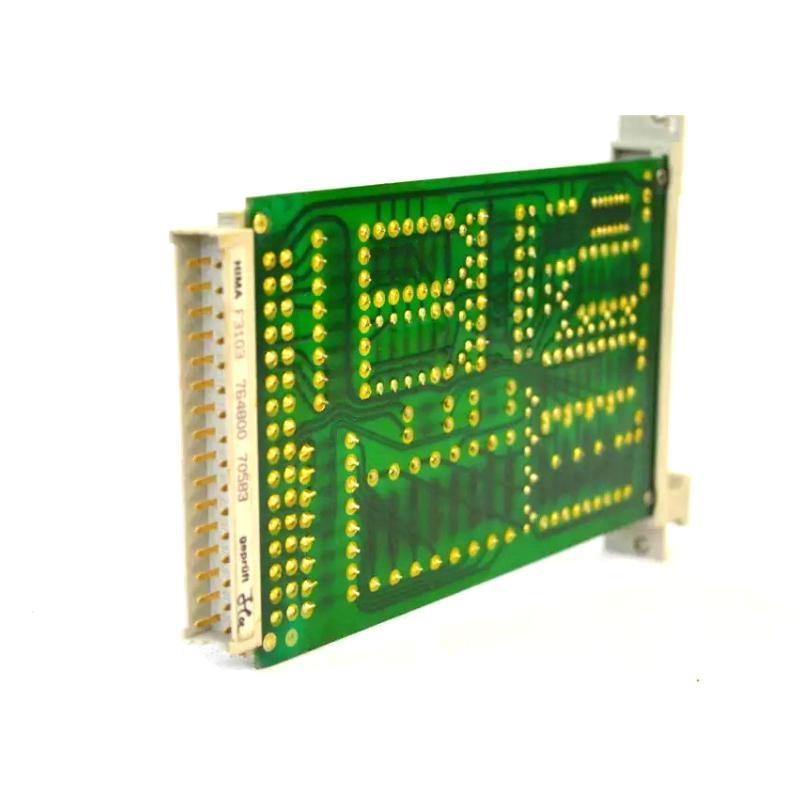

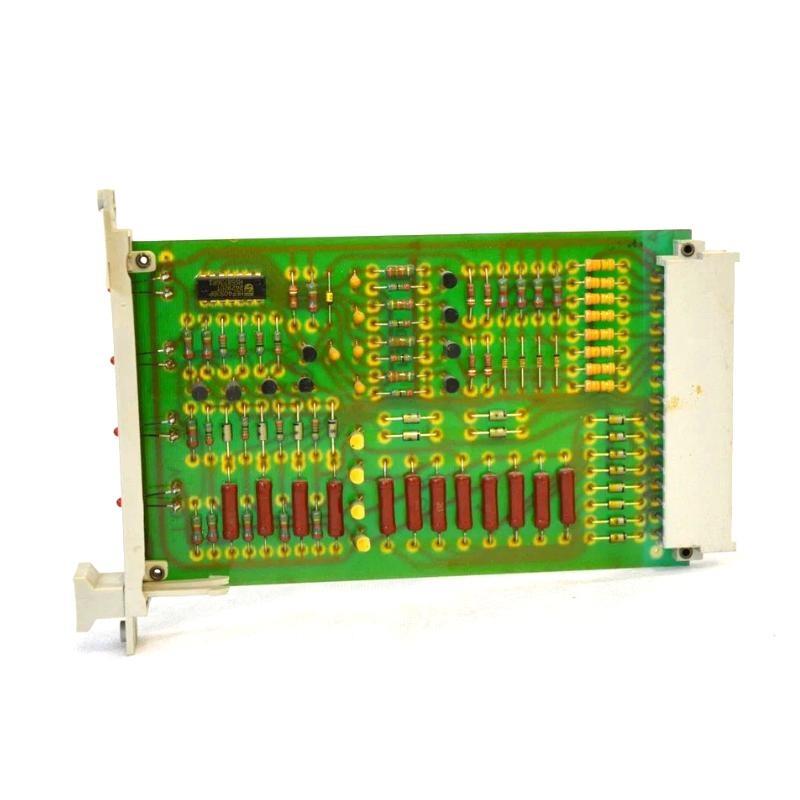

HIMA F3103 Safety System Module Card Trusted supplier

Frequently Asked Questions (FAQ)

How many I/O channels are available on the HIMA F3103 module?
The module provides 20 digital inputs and 8 digital outputs.

What is the maximum output current supported by each channel?
Channels 1–3 and 5–7 support up to 0.5 A. Channels 4 and 8 support 2 A at temperatures below 50°C, and 1 A up to 60°C.

What happens if a digital input or output fault is detected?
The system activates the FAULT LED, sets the affected I/O to a de-energized safe state, and logs an error code for diagnostic purposes.

Is the module suitable for use in SIL-rated safety applications?
Yes, it is certified for up to SIL 3 (IEC 61508/61511) and SIL 4 (EN 50126, EN 50128, EN 50129) applications.

How does the module handle power loss in terms of real-time clock functionality?
The real-time clock is backed up by an internal capacitor, retaining data for approximately one week without external power.

Can I use this module in high-altitude installations?
Yes, it supports installation altitudes of up to 2000 meters above sea level.

Are the Ethernet ports redundant or independently configurable?
The four RJ-45 Ethernet ports are independently configurable and support integrated switch functionality, including VLAN, mirroring, and LLDP.

What kind of protection or enclosure does the F3103 have?
It is housed in a metal enclosure with an IP20 protection rating, suitable for installation in controlled cabinet environments.
