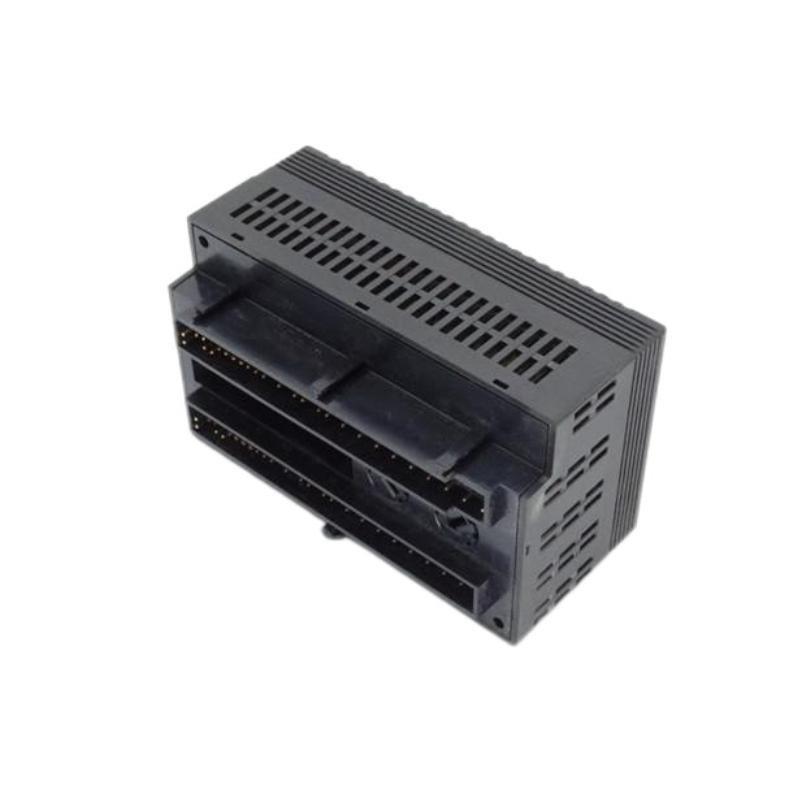

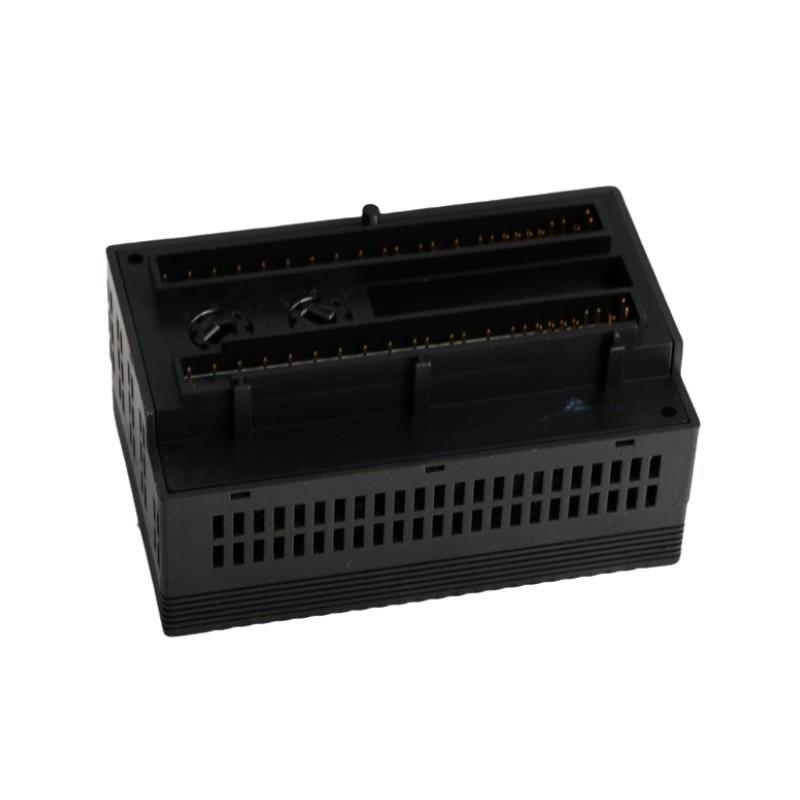

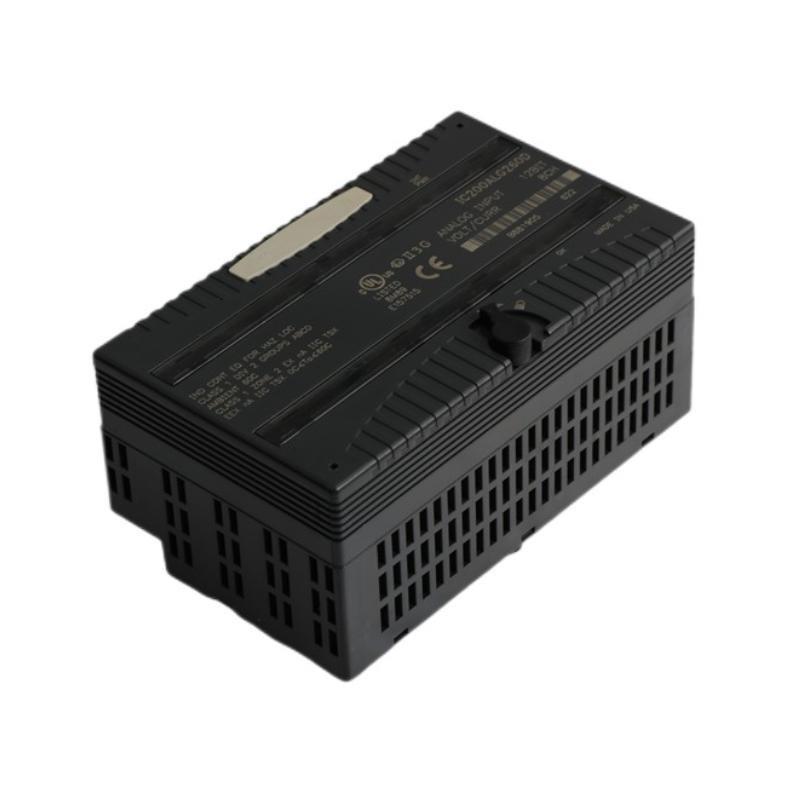

GE IC200ALG260 VersaMax Analog Input Module 30-Day Returns！

Frequently Asked Questions (FAQ)

What type of input signals does the IC200ALG260 module accept?
The module accepts either voltage inputs (±10VDC or 0–10VDC) or current inputs (4–20mA). Configuration is done using onboard jumpers.

How many input channels does the IC200ALG260 provide?
It offers 8 single-ended analog input channels grouped into one group, supporting either voltage or current input per channel.

Is external power required to operate the module?
No. The module operates using backplane power only. However, an external power source is required for the connected field transceivers.

What is the resolution of the analog input signals?
The resolution is 12-bit. For voltage mode, this equates to 2.5 mV per 8 counts. For current mode, it equates to 4 μA per 8 counts.

Does the module provide isolation between input channels?
No, there is no channel-to-channel isolation. However, there is optical isolation between user inputs and logic/frame ground (250 VAC continuous).

What kind of diagnostics are available on this module?
The module reports a “Loss of Internal Power” diagnostic fault if field-side power fails.

How is the mode (voltage or current) configured on the IC200ALG260?
Mode selection is accomplished using jumpers on the carrier board. One jumper selects between current and voltage, and another jumper adjusts the voltage range.

What are the environmental operating conditions for the IC200ALG260?
The module maintains its accuracy up to ±1.0% of full scale over a temperature range of 0 to 60°C. It is also suitable for use in Class I, Division 2 hazardous locations when properly installed.
