Product Introduction

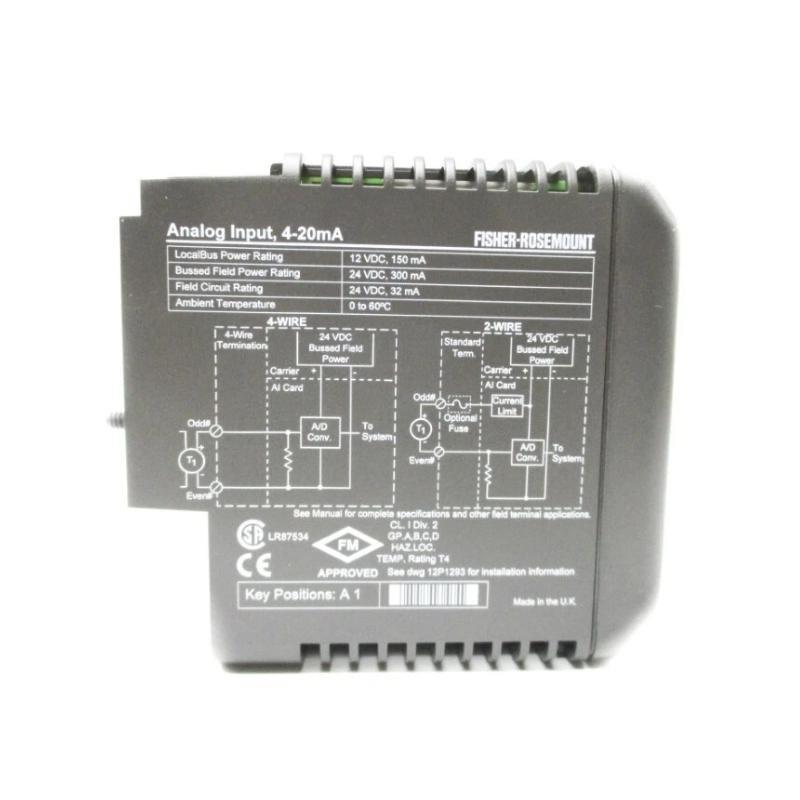

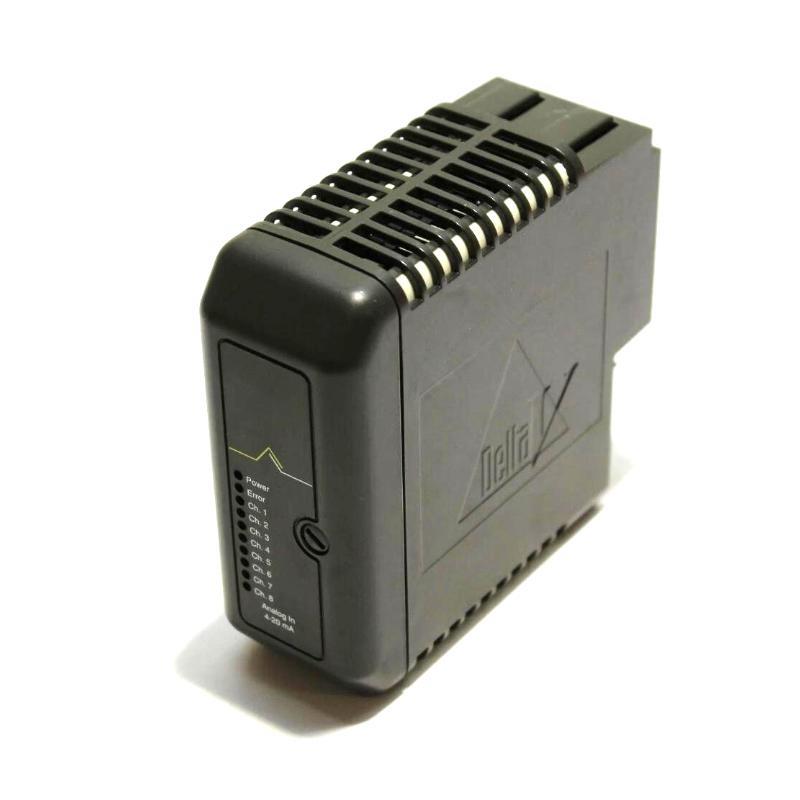

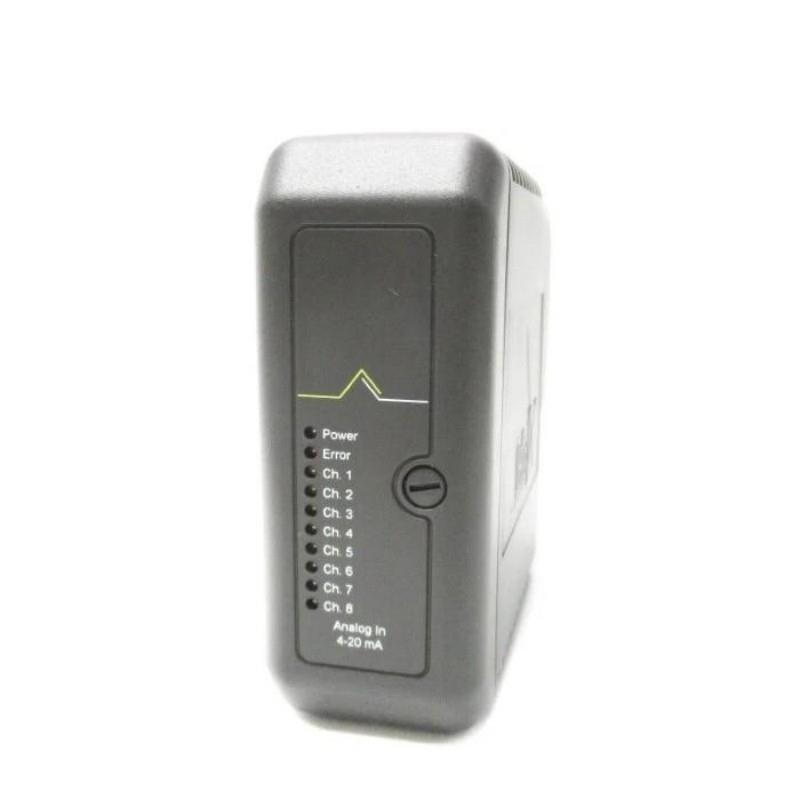

Emerson KJ3002X1-BC1 12P0681X092 DeltaV Analog Input Card 30-Day Returns！

Brand：Emerson

Item No.：KJ3002X1-BC1 12P0681X092

Product Type：Analog Input Card

Product Origin：USA

Dimensions：107 x 41 x 105 mm

Weight：0.181 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of input does the KJ3002X1-BC1 card accept?
The KJ3002X1-BC1 accepts 4–20 mA analog input signals from 2-wire field transmitters.

How many channels are available on this card?
The module provides 8 independent analog input channels.

Can the card be removed while the system is powered on?
Yes, it supports hot-swapping under specific conditions, including proper power supply configurations and compliance with energy limitation rules.

Does this module require calibration before use?
No calibration is required. The module is pre-configured for optimal performance.

What is the environmental protection rating for this product?
The card is rated IP20, providing basic protection against solid objects.

Are there any user-serviceable parts in the KJ3002X1-BC1?
No, the unit contains no user-serviceable components and should not be disassembled.

What are the acceptable ambient temperature limits for this module?
The operating temperature range is 0 to 60 degrees Celsius.

What certifications does the KJ3002X1-BC1 hold?
It holds ATEX certification (EEx nL IIC T4) and is approved for use in CL. I Div. 2 hazardous locations for Groups A, B, C, and D.
