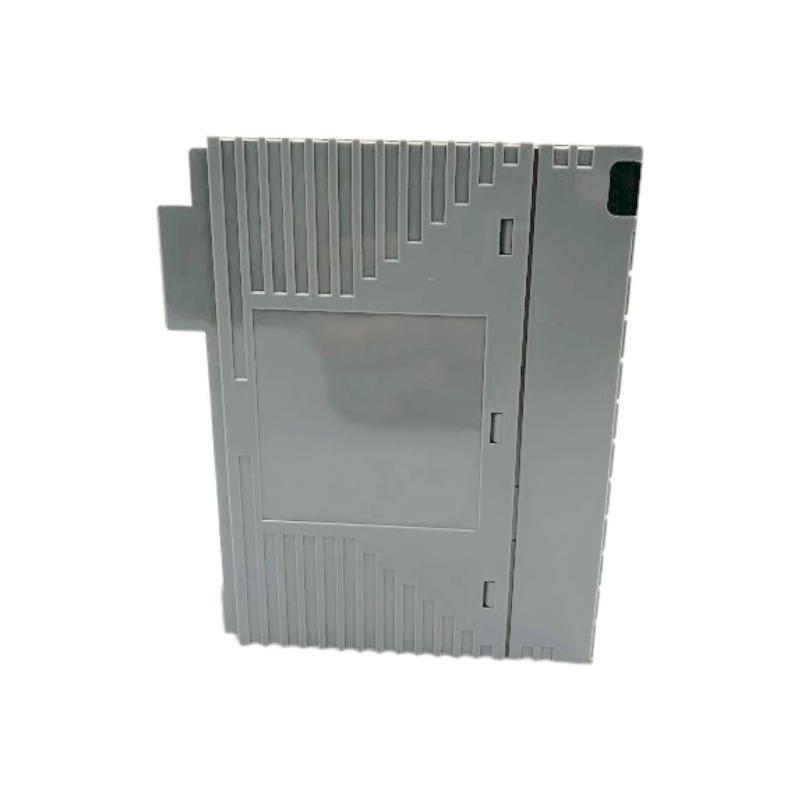

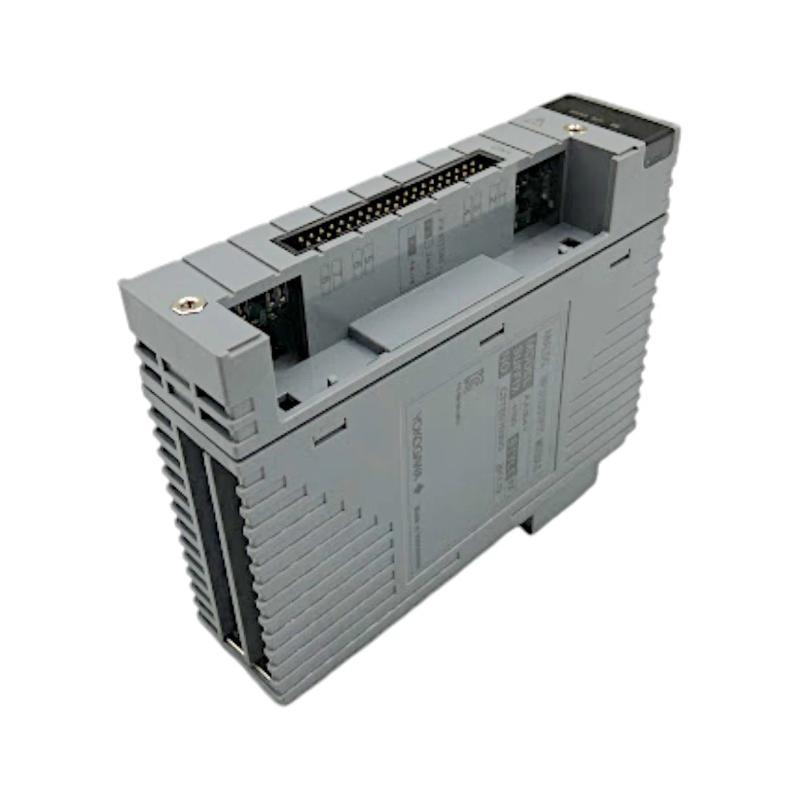

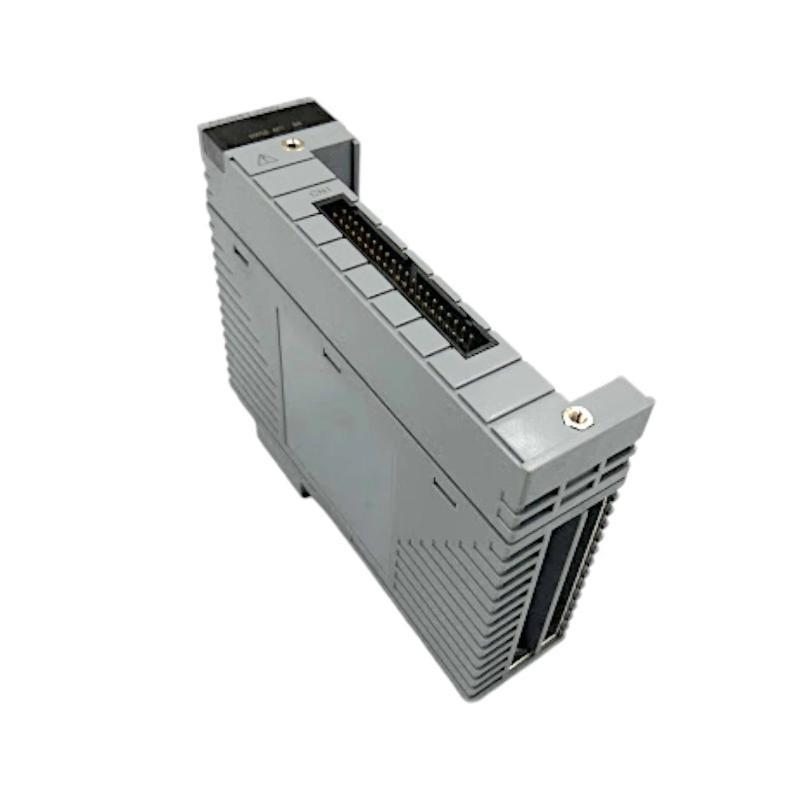

Name: Yokogawa AAI841-H50 Analog I/O Module 12-Month Warranty
Brand: Yokogawa Electric
SKU: 7324
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa AAI841-H50 Analog I/O Module 12-Month Warranty

Brand：Yokogawa

Item No.：AAI841-H50

Product Type：Analog I/O Module

Product Origin：Japan

Dimensions：107.5 × 32.8 × 130 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

Large stock, diverse series, adapt to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of signals can the AAI841-H50 handle?
It supports 4 to 20 mA DC input and output signals across 8 input and 8 output channels.

Is the AAI841-H50 module isolated?
No, the AAI841-H50 is a non-isolated analog I/O module.

Does this module support HART communication?
Yes, the AAI841-H50 model includes integrated HART communication capabilities for both input and output channels.

Can the AAI841-H50 be used in redundant configurations?
Yes, the module supports dual-redundant operation when installed in appropriate FIO node units.

What is the maximum output load resistance supported?
The output channels can support a load resistance range of 0 to 750 Ω.

What is the recommended power supply for 2-wire transmitters?
The module provides 14.8 V or higher at 20 mA and 26.4 V or less at 0 mA, with an output current limit of 27 mA.

What types of field wiring are compatible with this module?
The module accepts connections via pressure clamp terminals, KS cables, and MIL connector cables.

What is the expected accuracy of input and output measurements?
The input accuracy is ±16 µA, while the output accuracy is ±48 µA under standard operating conditions.
