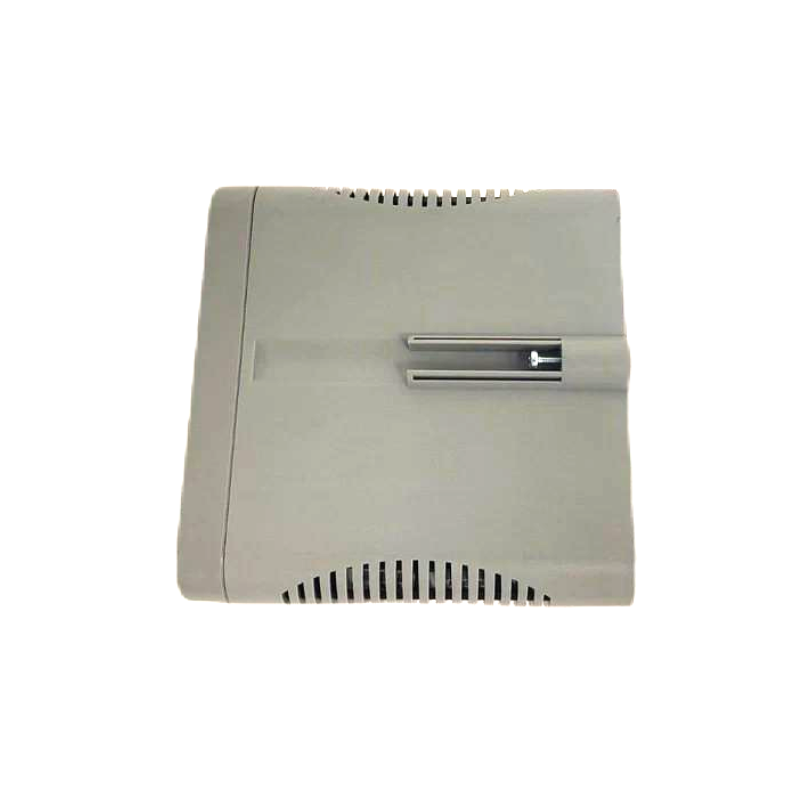

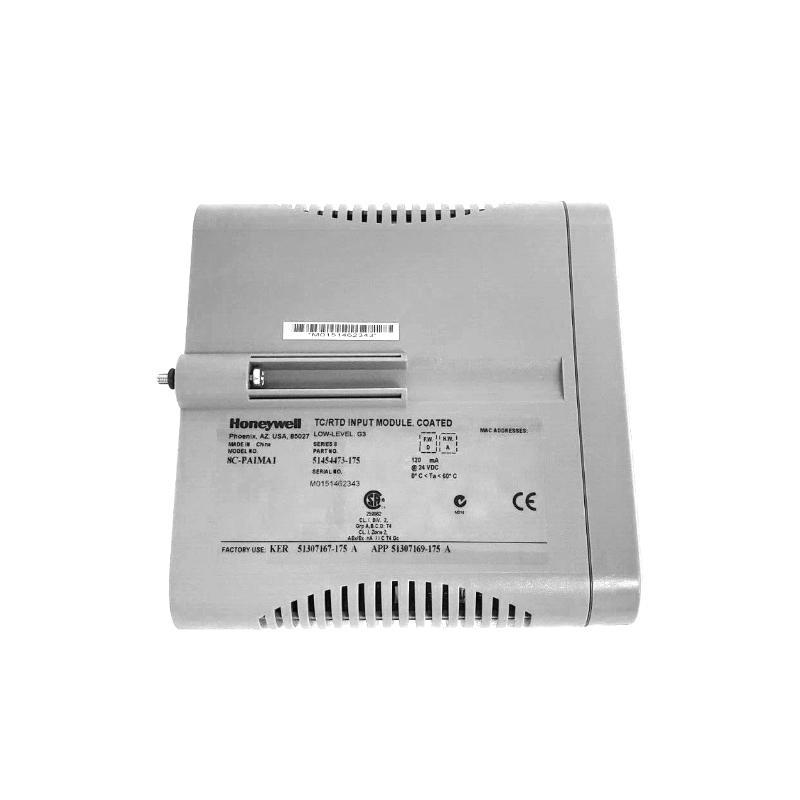

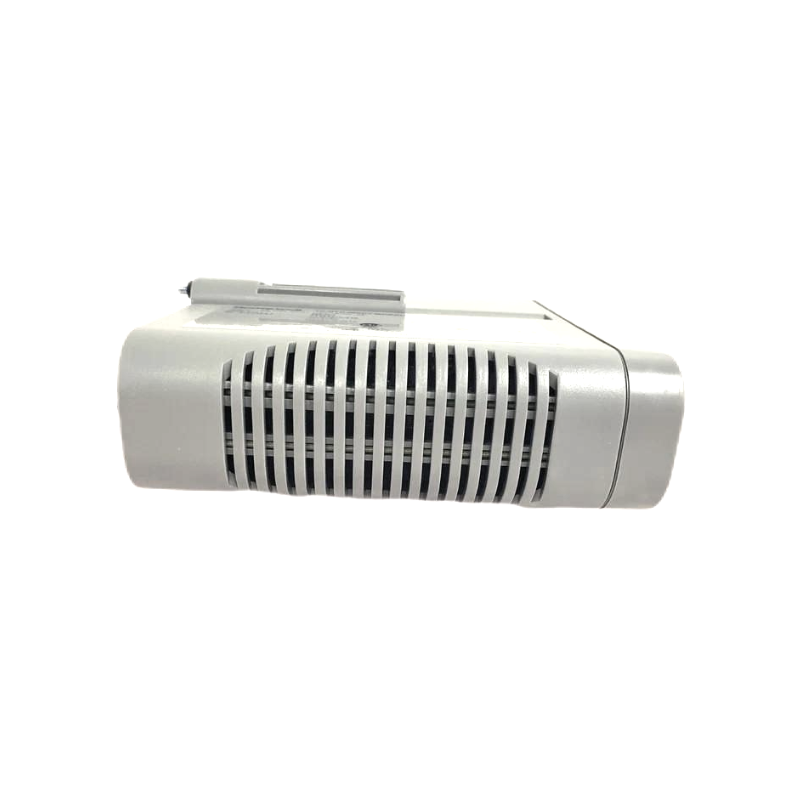

Honeywell 8C-PAIMA1 51454473-175 Series 8 Controller Analog Input Module 12-Month Warranty

Honeywell 8C-PAIMA1 51454473-175 Series 8 Controller Analog Input Module 12-Month Warranty

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 114 left

76%

Add to cart

Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

Honeywell 8C-PAIMA1 51454473-175 Series 8 Controller Analog Input Module 12-Month Warranty

Brand：Honeywell

Item No.：8C-PAIMA1 51454473-175

Product Type：Analog Input Module

Product Origin：USA

Dimensions：220 x 120 x 60 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of sensors can the 8C-PAIMA1 module read?
The module supports both thermocouple (TC) and resistance temperature detectors (RTD), including types J, K, T, B, S, R, Pt100, Ni120, and Cu10.

Is the module capable of detecting open sensor conditions?
Yes. The module includes configurable Open Thermocouple Detection (OTD) to prevent control actions from invalid temperature readings.

Can the 8C-PAIMA1 module operate while powered on during insertion or removal?
Yes. This module supports hot swapping, allowing insertion and removal under power.

What is the accuracy of temperature measurements for RTD inputs?
RTD inputs have a temperature stability of ±20 ppm/°C and a long-term drift of 500 ppm.

How many input channels are provided and are they isolated?
The module offers 16 fully isolated channels with isolation between channels, the IOL, and the power supply.

What is the input scan rate of the 8C-PAIMA1 module?
The fixed scan rate is 1 second for all 16 channels.

Is the module compliant with hazardous location standards?
Yes. It complies with Class I, Division 2, Groups A, B, C, D and Zone 2, Ex nA II C T4 standards.

What are the physical dimensions and weight of the module?
The module measures 220 x 120 x 60 mm and weighs 0.3 kg.
