Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

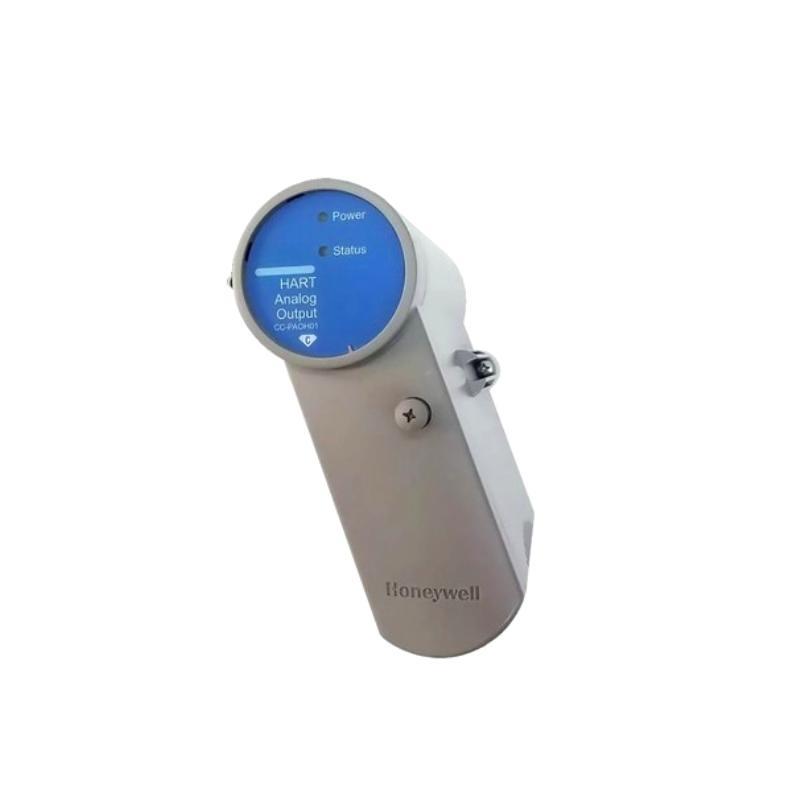

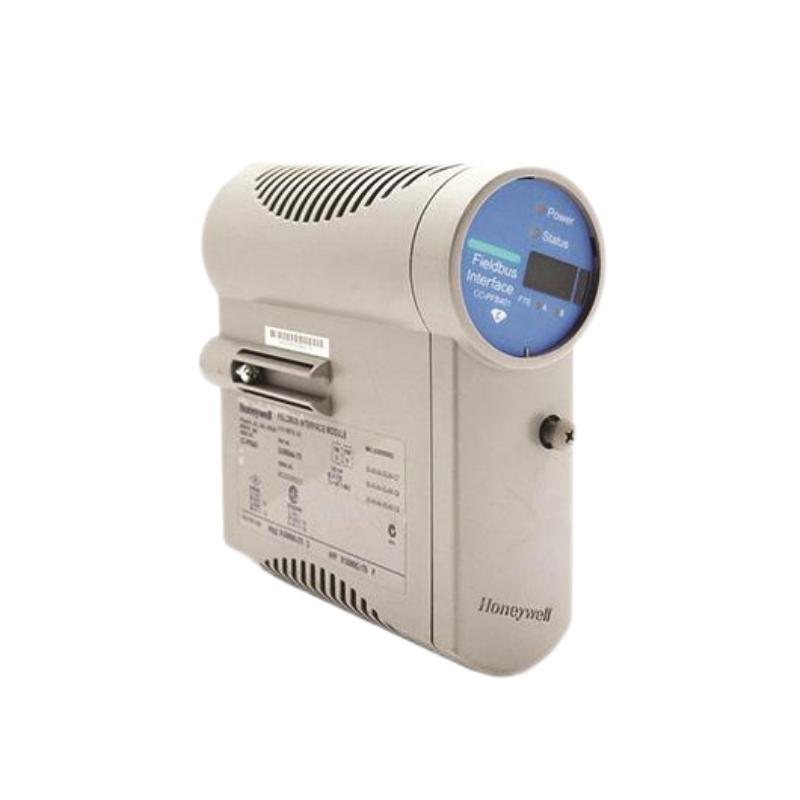

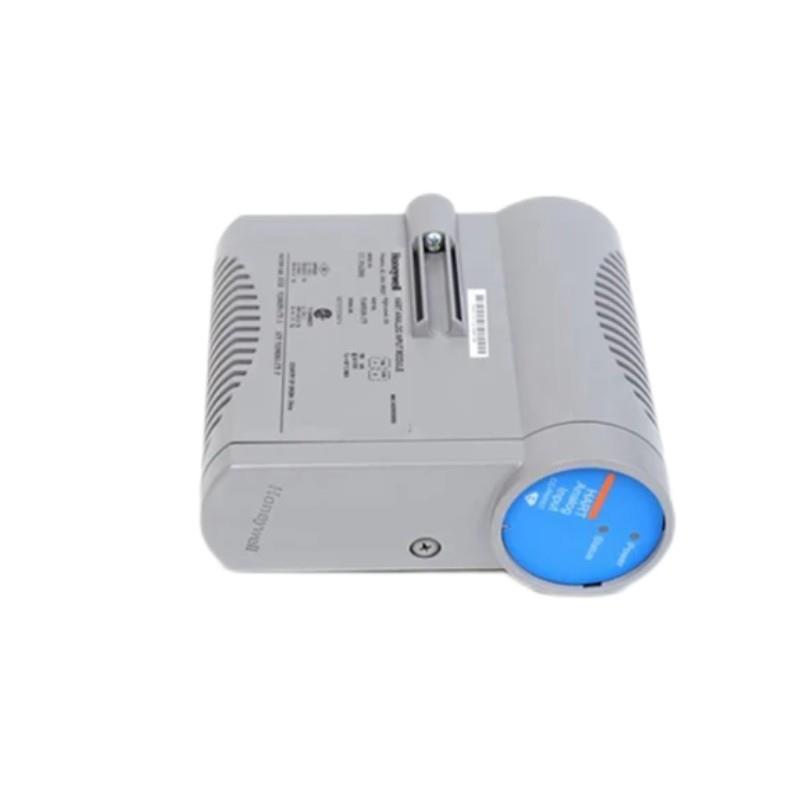

Honeywell 8C-PAIHA1 51454470-275 Series 8 Controller Analog Input Module 30-Day Returns！

Brand：Honeywell

Item No.：8C-PAIHA1 51454470-275

Product Type：Analog Input Module

Product Origin：USA

Dimensions：220 x 120 x 60 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many channels does the 8C-PAIHA1 module support?
It supports 16 single-ended analog input channels, all HART-capable.

What is the input signal range for this module?
It accepts 4–20 mA signals, typically from 2-wire or self-powered field transmitters.

Can the module be replaced while powered on?
Yes, the 8C-PAIHA1 supports hot-swapping; installation and removal under power are permitted.

Is HART communication fully supported on all channels?
Yes, all 16 channels support HART protocol for device configuration and process variable reading.

What is the update or scan rate for input signals?
Each channel is scanned every 50 milliseconds.

How accurate is the module at different operating temperatures?
Accuracy is ±0.075% of full scale at room temperature (23.5 ± 2°C) and ±0.15% from 0 to 60°C.

Does the module provide electrical isolation?
Yes, the module provides 1000 VAC RMS or ±1000 VDC galvanic isolation using iCoupler technology.

What kind of certification does the module carry for hazardous environments?
It is certified for Class I, Division 2, Groups A, B, C, D, and Zone 2 hazardous areas with Ex nA IIC T4 rating.
