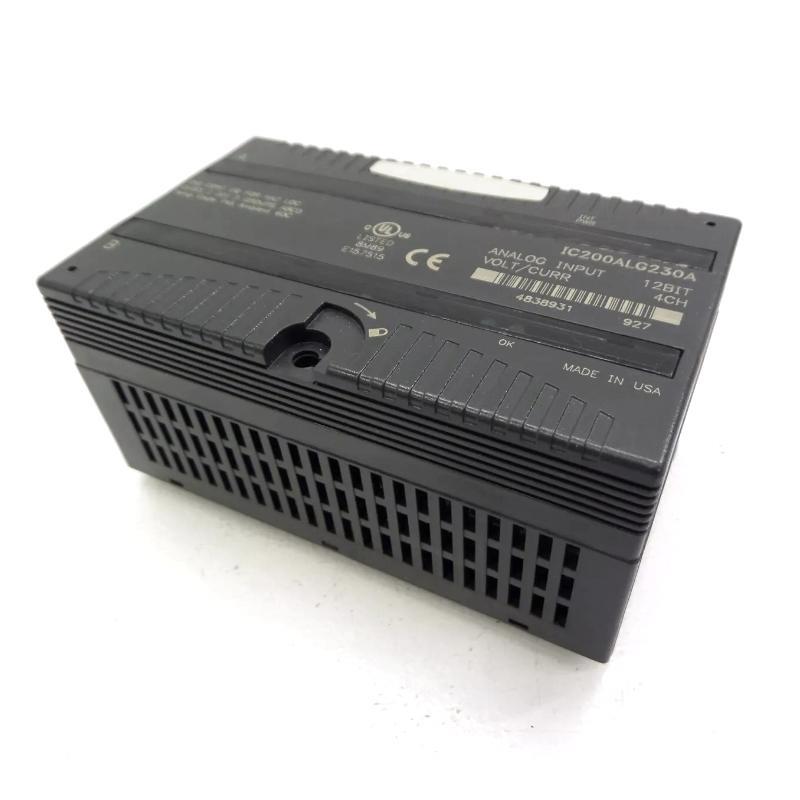

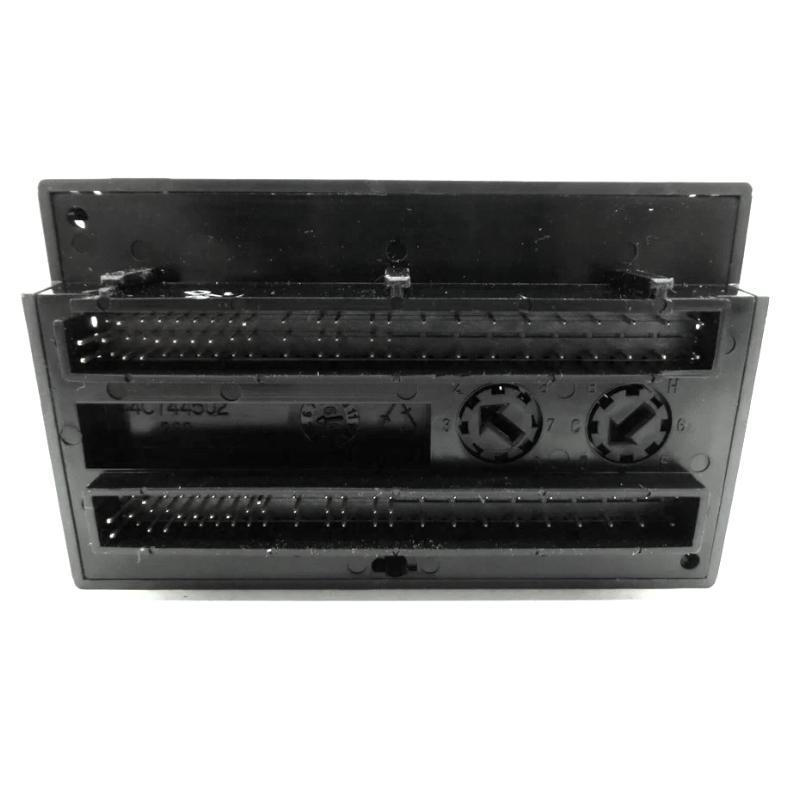

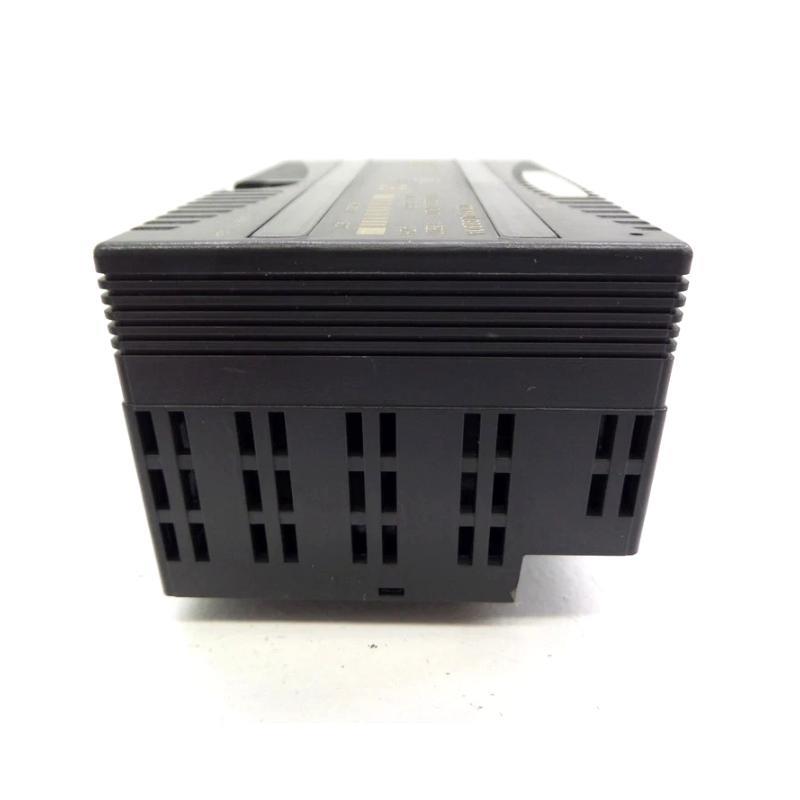

GE IC200ALG230A VersaMax Analog Input Module 12-Month Warranty

Frequently Asked Questions (FAQs)

What types of analog signals does the IC200ALG230A support?
It supports either voltage (±10 VDC or 0–10 VDC) or current (4–20 mA) signals, selectable via onboard jumpers.

Can I use both voltage and current inputs simultaneously on different channels?
No, all channels must be configured for the same mode—either voltage or current—using the jumper configuration.

How accurate is the module in varying temperatures?
At 25°C, accuracy is ±0.3% typical and ±0.5% max. Across 0–60°C, accuracy is within ±1% of full scale.

Does the IC200ALG230A require an external power supply?
No, the module itself is powered via the backplane, but external power is required for input transceivers.

How is signal isolation achieved in the module?
Isolation of 250 VAC continuous (1500 VAC for 1 minute) is provided between user input and logic/frame ground.

What happens to the analog input values if an internal fault occurs?
The module can be configured to either hold the last value or go to a preset default value upon fault detection.

How fast does the module update its input data?
The IC200ALG230A updates all input data every 0.4 milliseconds.

How are configuration changes made to the input mode?
Configuration is made via jumpers on the I/O carrier that select between current/voltage mode and voltage range.
