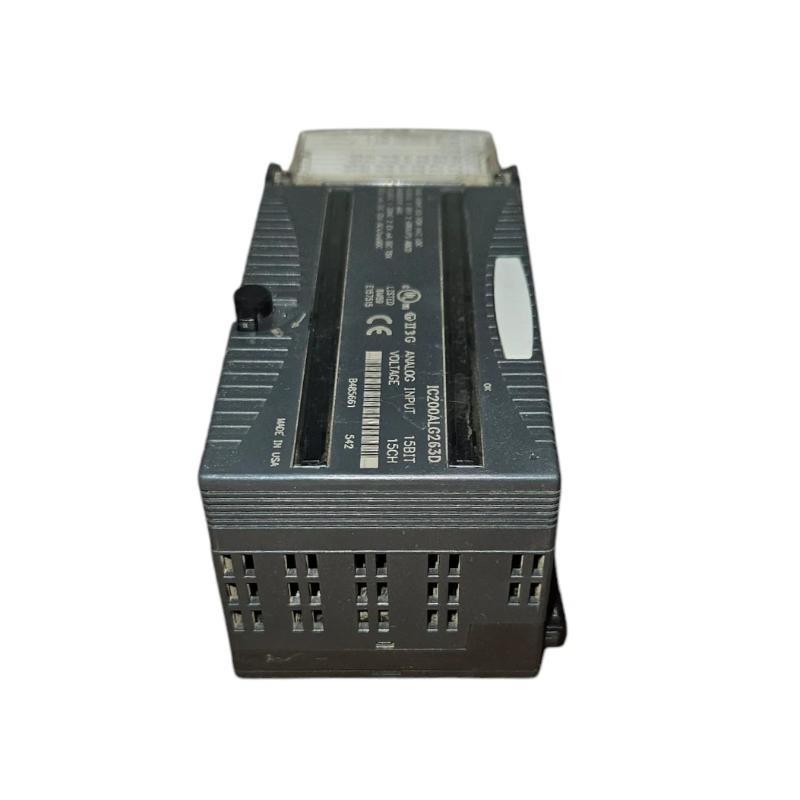

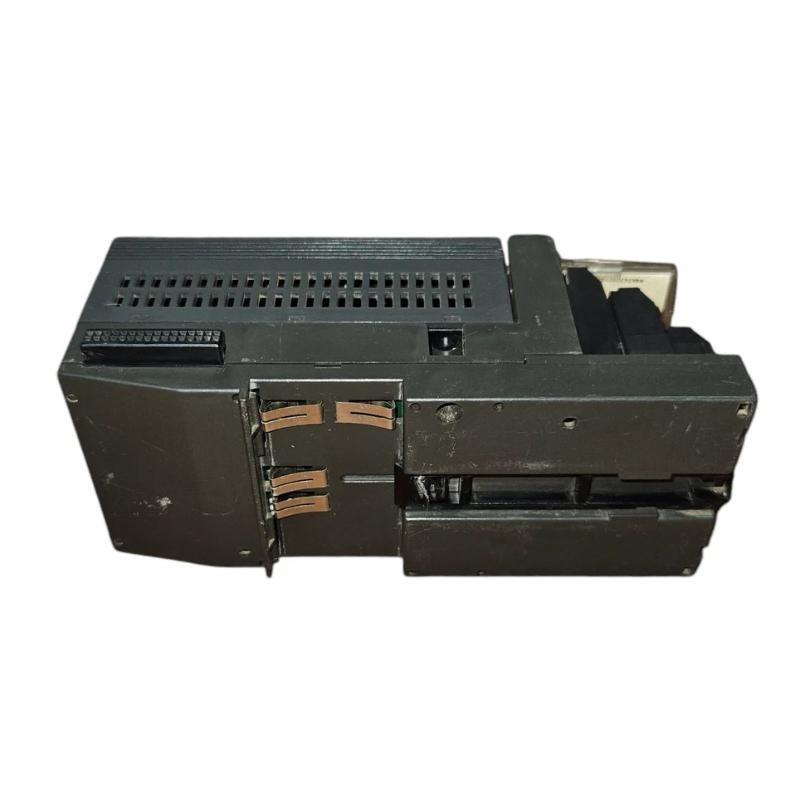

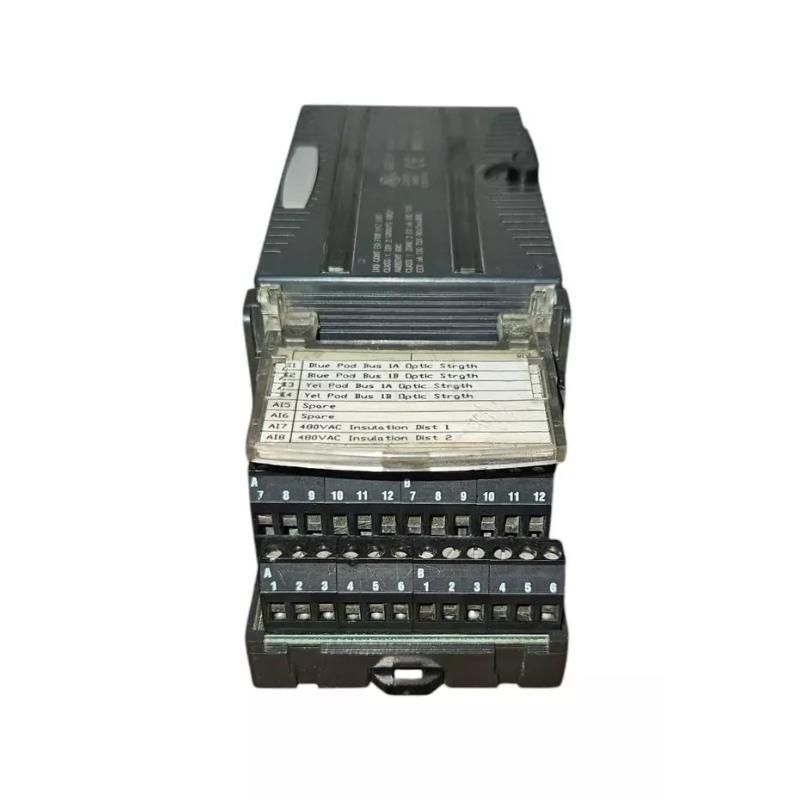

GE IC200ALG263D VersaMax Analog Input Module 100% New

Frequently Asked Questions (FAQ)

What types of signals does the IC200ALG263D accept?
The module accepts analog voltage signals ranging from -10V to +10V.

How many input channels does this module support?
The IC200ALG263D provides 15 single-ended input channels grouped together in one common ground group.

Does this module require an external power supply?
No external power source is required for the module’s operation. It draws power directly from the backplane.

What is the resolution of the analog inputs?
The inputs have a resolution of ±15 bits, where each count represents 0.3125 mV.

How does the module handle A/D conversion faults?
The module includes built-in diagnostics that detect A/D conversion malfunctions. If a known test fails three consecutive times, the module stops scanning and reports a fault.

Is there electrical isolation between channels?
No, there is no channel-to-channel isolation. However, user input is optically isolated from logic and frame ground.

Can this module be used in high-EMI environments?
Yes, but with caution. Accuracy may degrade to ±2% under strong RF interference (IEC 1000-4-3, 10V/m).

What happens when backplane power is lost?
The module will report a loss of internal power fault and stop functioning until power is restored.
