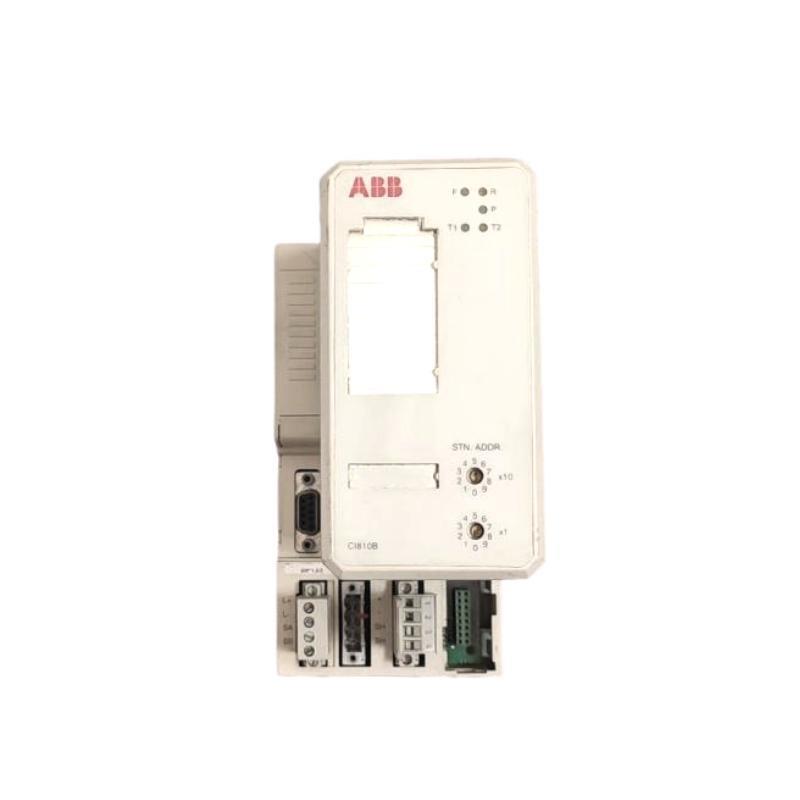

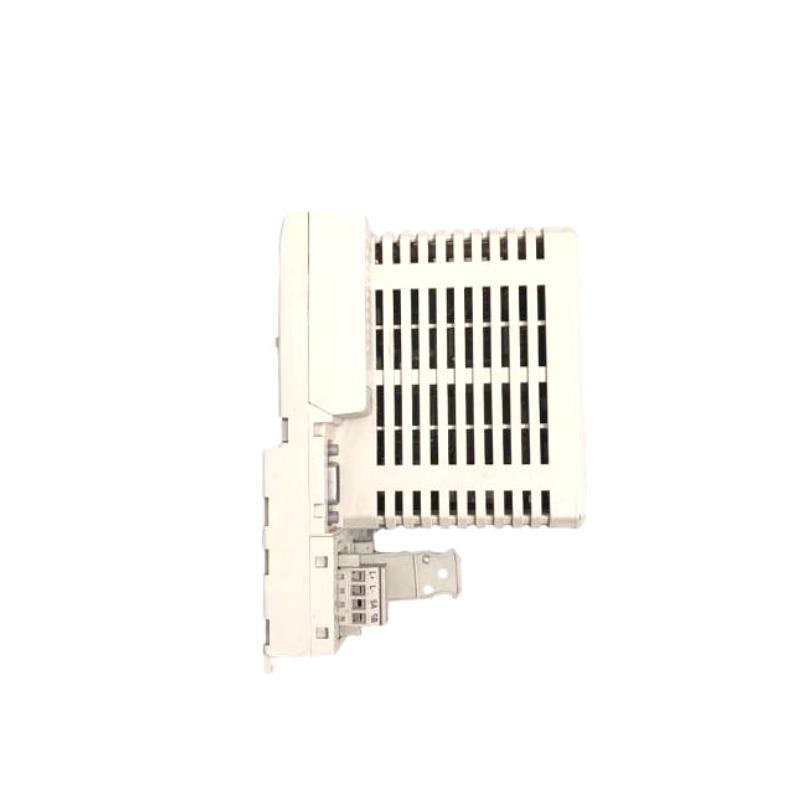

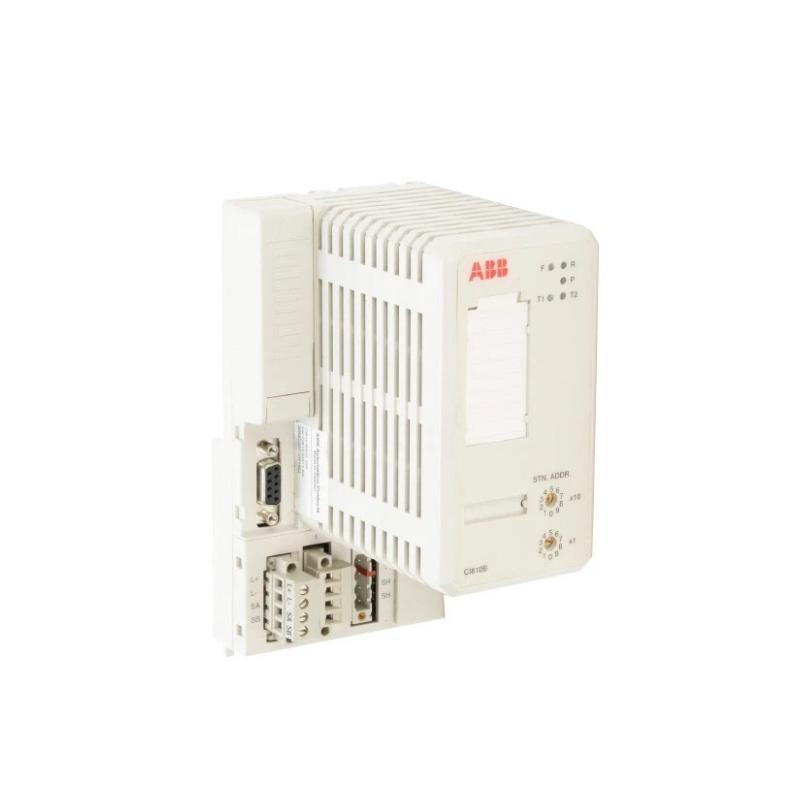

ABB CI810B 3BSE020520R1 System 800xA Communication Interface Module Fast Shipping!

Frequently Asked Questions (FAQ)

What is the primary function of the ABB CI810B module?
The CI810B functions as a Fieldbus Communication Interface (FCI) for the S800 I/O station, enabling communication over Advant Fieldbus 100 with full media redundancy support.

Is CI810B compatible with redundant AF 100 networks?
Yes, CI810B supports full redundant media configurations, ensuring high availability in critical applications.

Can CI810B be used in long-distance bus configurations?
Yes, it supports AF 100 bus lengths up to 15000 meters when installed as part of a compliant segment structure.

Does CI810B require external modems for twisted pair communication?
No, it has an integrated twisted pair modem, eliminating the need for additional external modems for TWP communication.

What distinguishes CI810B from previous CI810 versions?
CI810B includes updated power supply contacts and is designed for enhanced compatibility with long-distance AF 100 networks, replacing earlier versions like CI810A, CI810V1, and CI810V2.

Can the CI810B operate independently or does it require a paired configuration?
It can operate both as a standalone module and in a redundant pair using two CI810B modules for increased reliability.

What housing or rack is required for installing CI810B?
CI810B is installed within the S800 I/O station housing and fits into standard S800 racks with DIN rail or rack mount.

Is CI810B hot-swappable during maintenance?
Yes, CI810B supports replacement without halting communication on the AF 100 bus, allowing for minimal disruption during maintenance.
