Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

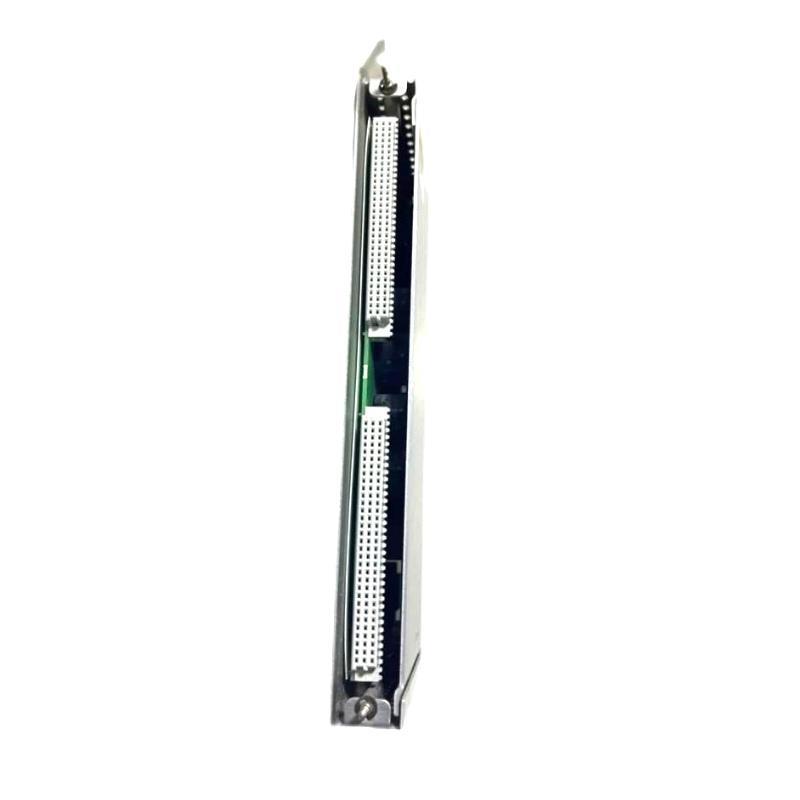

Bently Nevada 3500/25 126648-02 Isolated Keyphasor I/O Module 100% New

Brand：Bently Nevada

Item No.：3500/25 126648-02

Product Type：Isolated Keyphasor I/O Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 103.1 mm

Weight：0.46 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the main purpose of the 3500/25 126648-02 Isolated Keyphasor I/O Module?
It is designed to condition and isolate Keyphasor signals, especially when they are shared across multiple systems, such as a control system and monitoring system.

Can this module be used with both magnetic pickups and proximitor sensors?
Yes. It is primarily intended for magnetic pickups but is also compatible with proximitor sensors when an external power supply is used.

Does the isolated I/O version affect phase accuracy?
Yes. It introduces slightly higher phase shift than the non-isolated version, making it more suitable for speed measurement than precise phase analysis.

What are the input signal voltage limits for the isolated version?
The input voltage range is from +5 V to -11 V for the isolated I/O module.

What is the minimum operating speed for reliable input detection?
Magnetic pickups require a shaft speed above 200 rpm to generate sufficient signal for detection.

What kind of buffered output is available for this module?
Two buffered Keyphasor outputs are available at both the front and rear (Euro connectors and coaxial jacks).

How is the signal threshold configured on this module?
It supports both auto-thresholding and manual thresholding, with manual settings ranging from 0 to -20 Vdc.

What is the power supply provided to each transducer channel?
The module supplies -24 Vdc at a maximum of 40 mA per channel.
