Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

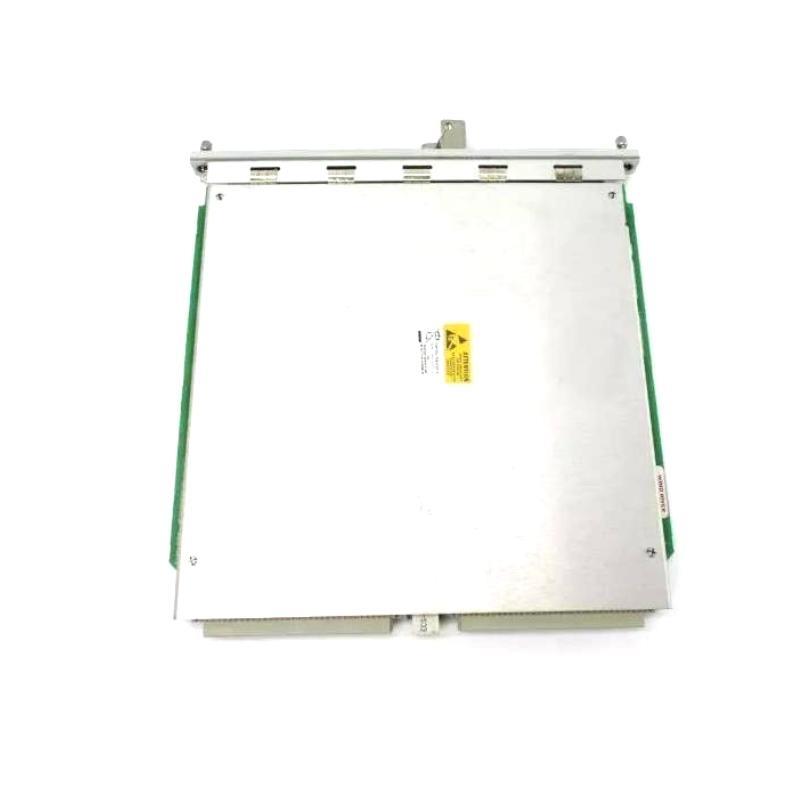

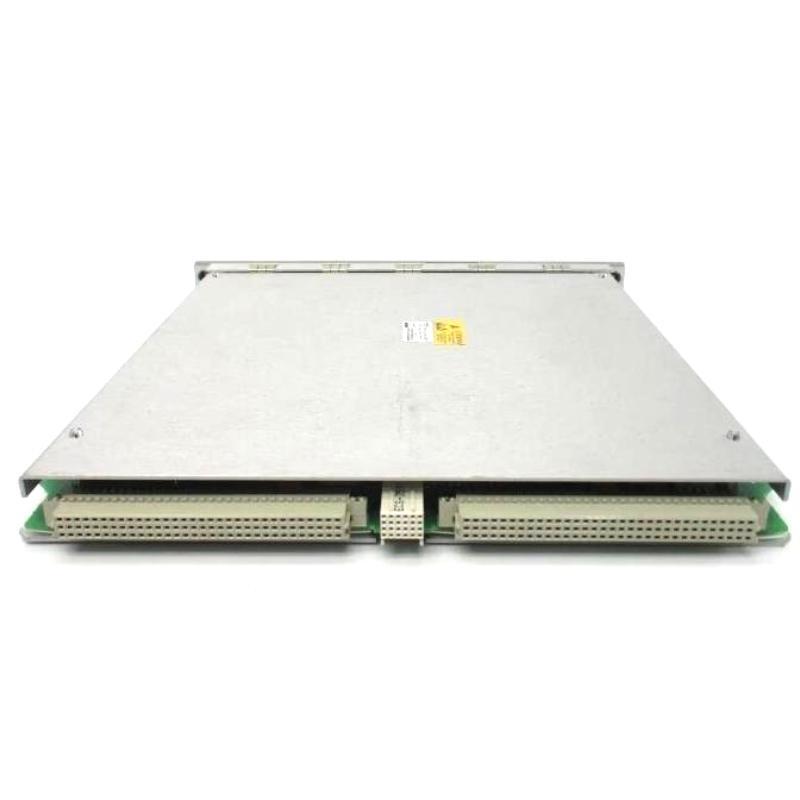

Bently Nevada 3500/22M 161580-01 Transient Data Interface Module Original

Brand：Bently Nevada

Item No.：3500/22M 161580-01

Product Type：Transient Data Interface Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and after-sales docking is smooth

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the 3500/22M Transient Data Interface Module?
The 3500/22M TDI serves as the main interface between the 3500 monitoring rack and software such as System 1. It combines rack interface functionality with transient and steady-state data acquisition over Ethernet.

Can the TDI collect both static and dynamic data?
Yes, the TDI collects static data by default. For dynamic waveform data, an optional Channel Enabling Disk is required.

Where is the 3500/22M installed within the 3500 rack?
The TDI is always installed in Slot 1, directly adjacent to the power supplies of the rack.

How many dynamic channels can be enabled on the TDI?
The TDI supports waveform data collection for up to 48 channels, depending on configuration.

What type of Ethernet connections are supported by the TDI?
The module supports both copper (10Base-T/100Base-TX) via RJ-45 and fiber optic (100Base-FX) via MT-RJ connectors.

Does the TDI impact the safety shutdown path of the 3500 system?
No, the TDI is not in the critical monitoring path. It does not interfere with the protection functions of the rack.

What is the difference between synchronous and asynchronous waveform collection in the TDI?
Synchronous collection is tied to machine speed (samples per revolution), while asynchronous collection is time-based and suited for spectrum analysis up to 30 kHz.

How do I know if the TDI is functioning correctly?

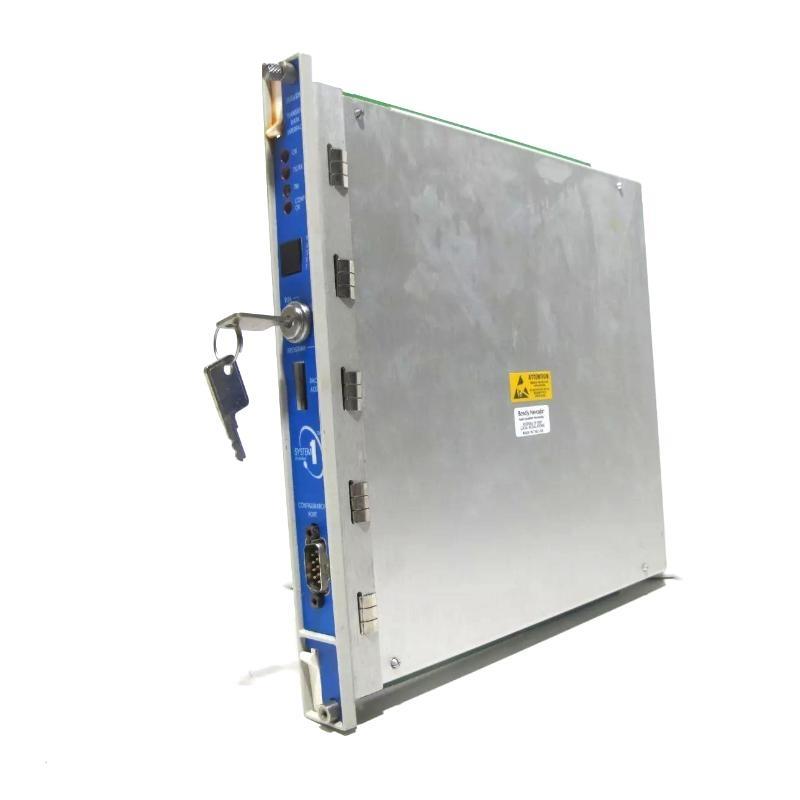

The front panel includes status LEDs for power (OK), communication (TX/RX), configuration status (CONFIG OK), and Trip Multiply mode, providing clear operational indicators.
