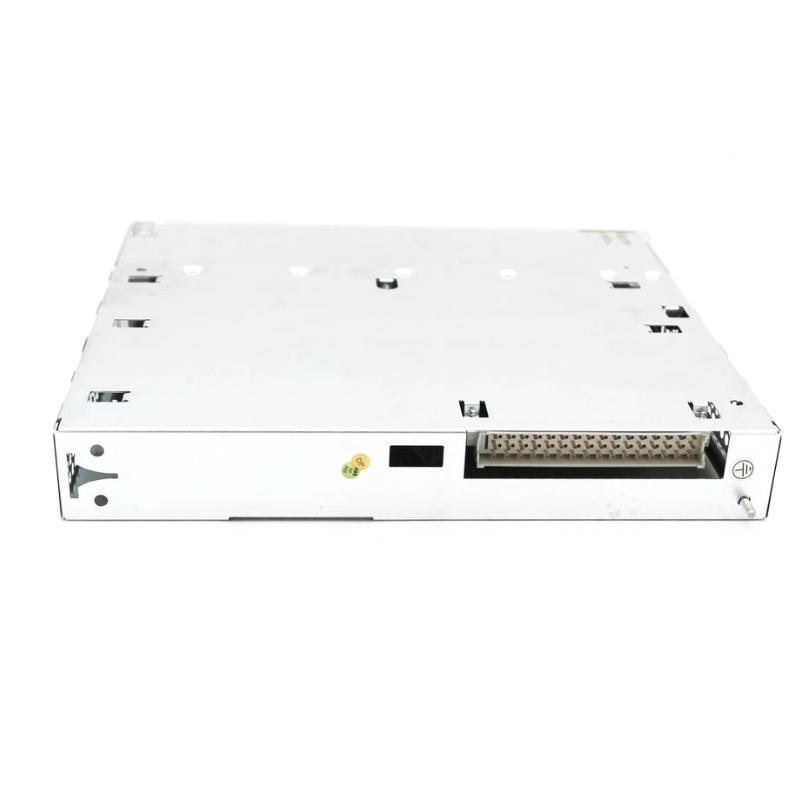

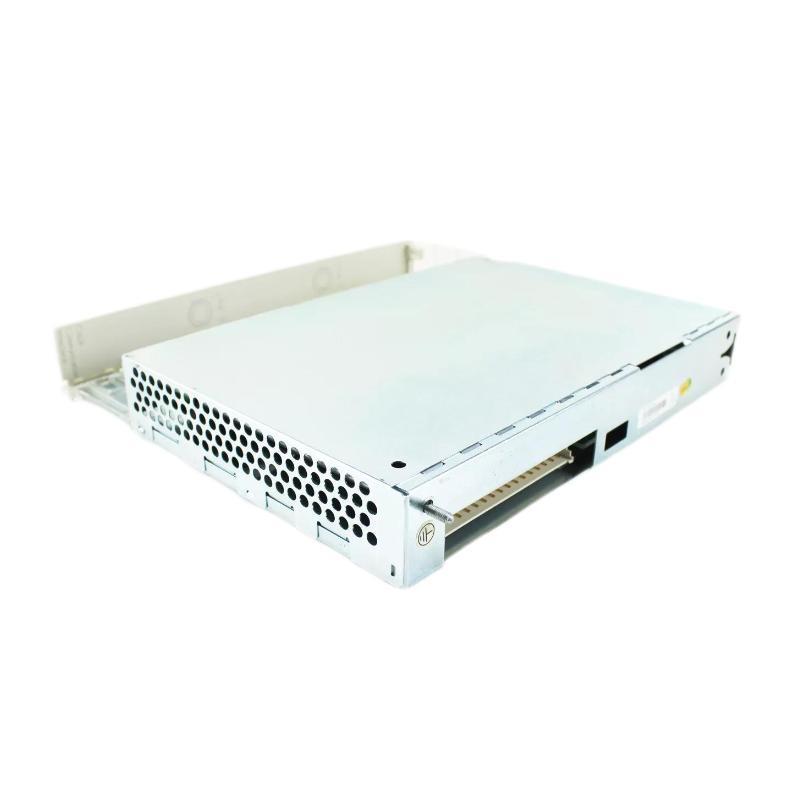

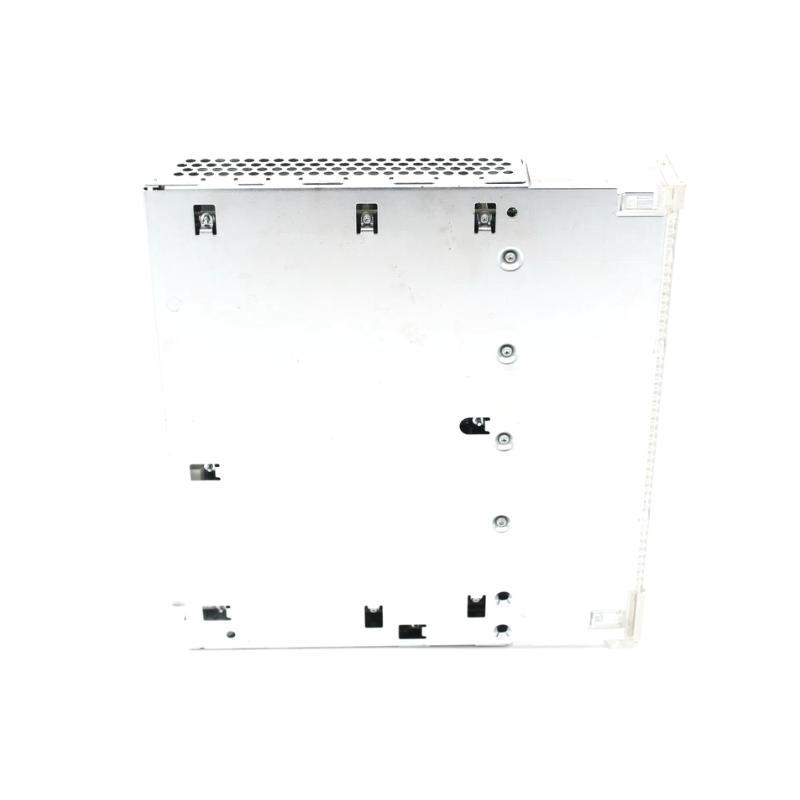

Name: ABB CI626 3BHT300053R1 Communication Interface Module 30-Day Returns！
Brand: ABB PLC
SKU: 7354
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB CI626 3BHT300053R1 Communication Interface Module 30-Day Returns！

Brand：ABB

Item No.：CI626 3BHT300053R1

Product Type：Communication Interface Module

Product Origin：Sweden (SE)

Dimensions：252 x 273 x 40 mm

Weight：1.42 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the CI626 module?
The CI626 functions as a communication interface module for connecting Advant Controllers (specifically AC110/160) to the Advant Fieldbus 100 network using coaxial media.

Does the CI626 support redundant communication?
The CI626 supports limited media redundancy on coaxial networks, with a maximum of 4 meters allowed in cable length difference between any two stations.

Can the CI626 be used with twisted pair or optical fiber media?
No, the CI626 is designed exclusively for coaxial media and includes an integrated modem for this purpose.

Which controllers are compatible with the CI626?
The CI626 is compatible with the Advant Controller 110 and Advant Controller 160 systems.

How is the CI626 mounted within the system?
The CI626 is mounted directly into a dedicated slot in the AC110 or AC160 base unit.

Is external termination required when using CI626 on the bus?
Yes, 75-ohm BNC terminations must be applied at each end of the coaxial bus segment, with one end grounded for proper operation.

How does the CI626 handle bus failures or faults?
In the case of a failure, the CI626 does not provide automatic failover to a backup interface. System-level redundancy needs to be configured externally if needed.

What are the visual indicators on the CI626 used for?
The LED indicators on the CI626 provide status feedback for communication activity, fault conditions, and operational health of the module.
